Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications

Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications

Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications

Brand Name: Genyu
MOQ: 1
Price: $5.90-7.50
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Display Size:
3 Inch LCD
LCD Outline Size:
102.8x41.9x9mm
Display Mode:
FSTN Positive Transflective
Backlight Current:
60mA
Dot Matrix:
160*32 Dot
Operating Voltage:
5 V
Drive IC:
ST7525
Viewing Angle:
6 O'clock
Interface:
8 Parallel Bits
Operating Temperature:
-20°C~70°C
Storage Temperature:
-30°C~80°C
Driving Method:
1/32 Duty, 1/6 Bias
Connector Type:
COG+FPC
Viewing Area:
83x18.6 Mm
Polarizer Type:
Transflective
Highlight:

160*32 Dot Matrix LCD Display

,

FSTN Positive LCD Screen

,

ST7525 Driver IC Dot Matrix LCD

Product Description
Genyu 160×32 Dots Matrix LCD ST7525 Driver IC FSTN Positive 16032 LCD Screen For Car Display
Product Features
Display ModeFSTN Positive COG FPC
PolarizerTransflective
Viewing Angle6 O'Clock Dot Matrix LCD Panels
Operating Temperature-20°C to 70°C
Storage Temperature-30°C to 80°C
Operating Voltage5.0V
Driving Method1/32 Duty, 1/6 Bias
ConnectorCOG + FPC
Drive ICST7525
BacklightWhite
ROHS CompliantYes
Mechanical Parameters
PCB Size102.8 × 41.9 × 9 mm
Viewing Area83(w) × 18.6(h) mm

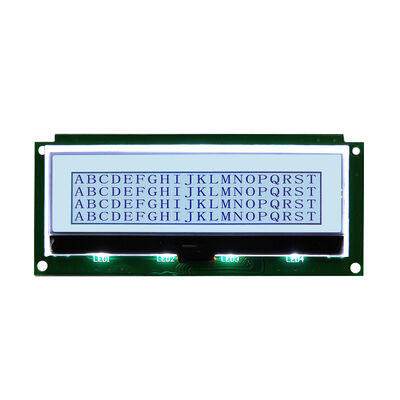

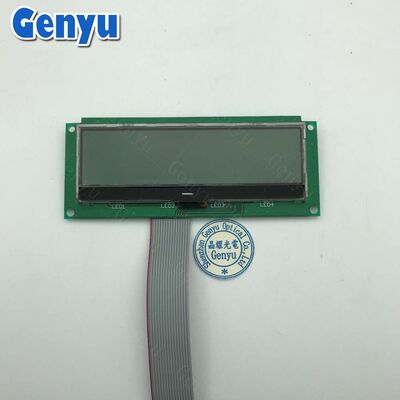

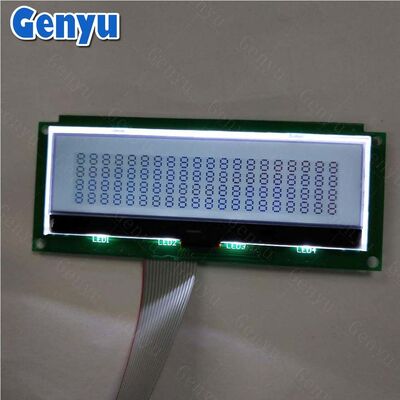

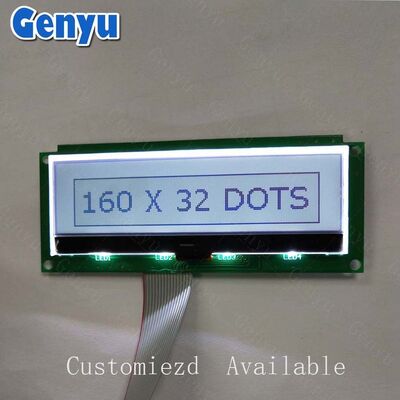

Product Images
Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 0 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 1 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 2 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 3 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 4 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 5
Related Products
Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 6
Packaging & Shipping
Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 7 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 8 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 9 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 10
Company Profile
Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 11 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 12 Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 13
Contact Information
Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 14

Hi, I am Erica. We have focused on micro LCD panels for 17 years.

What We Offer
  • Small orders will be acceptable
  • High quality, durable-competitive pricing
  • Mass production leadtime would be guaranteed
  • Free technical services will be provided
  • Each order will have enough spares

Please feel free to contact us!

Genyu 160*32 Dot Matrix LCD Screen with ST7525 Driver IC and FSTN Positive Display for Car Applications 15
