Monochrome White Segment HTN Positive LCD Screen Display 3.3V 27PIN

Brand Name:	Genyu
Model Number:	GY52169H
MOQ:	4400 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	500K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

HTN(Gray), Positive

Viewing Angle:

12 O'clock

Operating Temperature:

0~+50℃

Connector:

PIN, 27 Numbers

Voltage:

3.3V

Packaging Details:

Foam & Carton Boxes

Supply Ability:

500K pcs/ Month

Product Description

Monochrome White Segment HTN Positive LCD Screen Display 3.3V 27PIN

What is HTN LCD?

HTN (High Twisted Nematic) is a variation of TN (Twisted Nematic) LCDs that offers:

Higher twist angle (about 110° to 160°, compared to 90° for TN)
Better viewing angles than standard TN
Lower cost than STN (Super Twisted Nematic)
Faster response time than STN
Common in segment LCDs, not dot-matrix or graphic LCDs

What does “Positive Mode” mean?

In positive mode LCDs:

Segments appear dark on a light background in transmissive or reflective displays.
Depending on the backlight and polarizer configuration, backlit displays often show light segments on a dark background.
Requires positive voltage bias to activate segments.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	GY52169H
2	LCD Type	HTN positive, transmissive
3	Viewing Angle	12 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 3.0V
5	Operating Temperature	0~+50℃
6	Storage Temperature	-10~+60℃
7	Connector	PIN, 27 numbers
8	Outline Dimension	43(W)* 37(H)* 2.0(T) mm
9	LCD View Area	40(W)* 30(H) mm

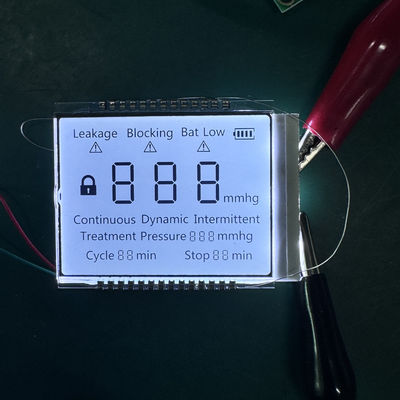

Monochrome White Segment HTN Positive LCD Screen Display 3.3V 27PIN 0

Main Product Applications of HTN LCDs:

Application Area	Example Products	Notes
Home Appliances	- Microwave ovens - Washing machines - Refrigerators	Displaying time, status, temperature
Consumer Electronics	- Digital thermometers - Kitchen timers - Digital clocks/watches	Low-power, segment-based displays
Industrial Instruments	- Multimeters - Pressure gauges - Panel meters	Clear segment display with wide viewing angle
Medical Devices	- Blood pressure monitors - Glucose meters	Reliable and power-efficient
Office Equipment	- Calculators - Fax machines - Landline phones	Used for number/alphanumeric readouts
Automotive Displays	- Dashboard clocks - A/C control panels	Suitable for simple status displays
Remote Controls	- A/C remotes - TV remotes with displays	Compact and energy-efficient
Battery-Powered Devices	- Scales - Stopwatches - Portable testers

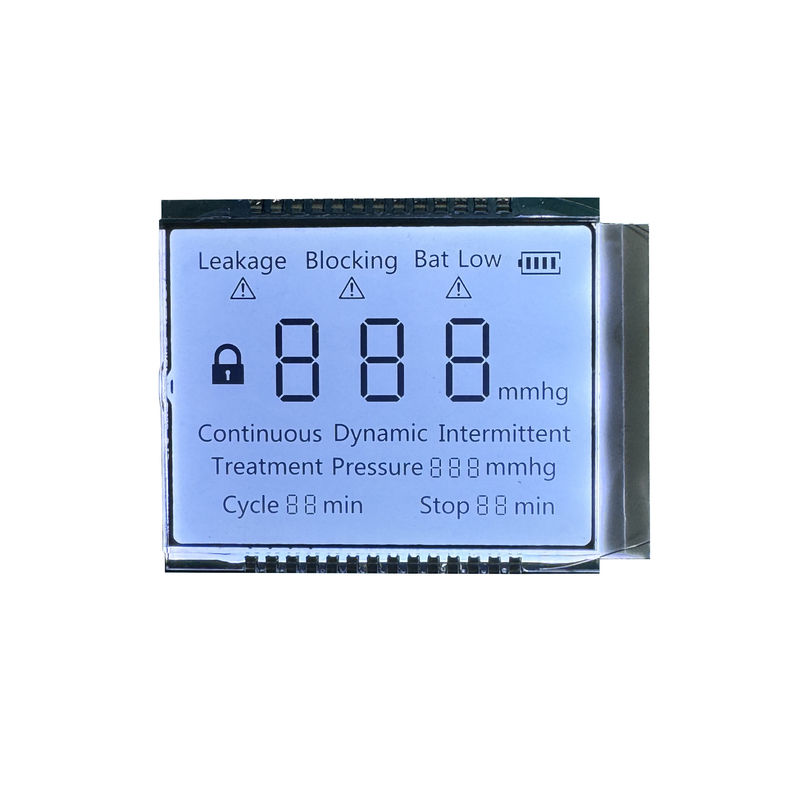

Monochrome White Segment HTN Positive LCD Screen Display 3.3V 27PIN 1

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 25-30 days.

4. Q: Can I get free samples?

A: Yes, we would like to provide 3-10 pcs of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-40 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
