TN Positive Reflective Monochrome Black Digits Custom Segment LCD Display

Brand Name:	Genyu
Model Number:	GY52244T
MOQ:	10500 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	500K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

TN, Positive

Viewing Angle:

6 O'clock

Operating Temperature:

-30~+70℃

Connector:

PIN, 16 Numbers

Voltage:

3.0V

Packaging Details:

Foam tampons & Carton Boxes

Supply Ability:

500K pcs/ Month

Product Description

TN Positive Reflective Monochrome Black Digits Custom Segment LCD Display

A TN reflective LCD is a Twisted Nematic display that uses a reflective layer instead of a backlight, making it highly power-efficient and sunlight-readable. These displays work best in bright environments, using ambient light to make the screen visible.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	GY52244T
2	LCD Type	TN positive, reflective
3	Viewing Angle	6 O'clock
4	Drive Method	1/8 Duty, 1/4 Bias, 3.0V
5	Operating Temperature	-30~+70℃
6	Storage Temperature	-40~+80℃
7	Connector	PIN, 16 numbers
8	LED Backlight	Without
9	Outline Dimension	34.0(W)* 26.0(H)* 2.8(T) mm
10	LCD View Area	31(W)* 19(H) mm

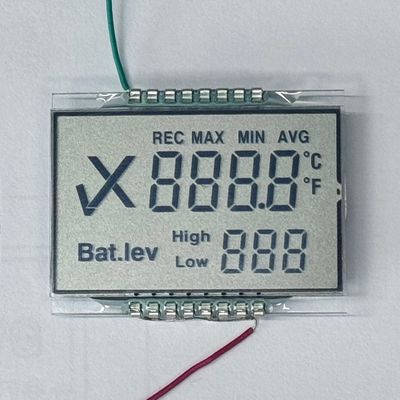

TN Positive Reflective Monochrome Black Digits Custom Segment LCD Display 0

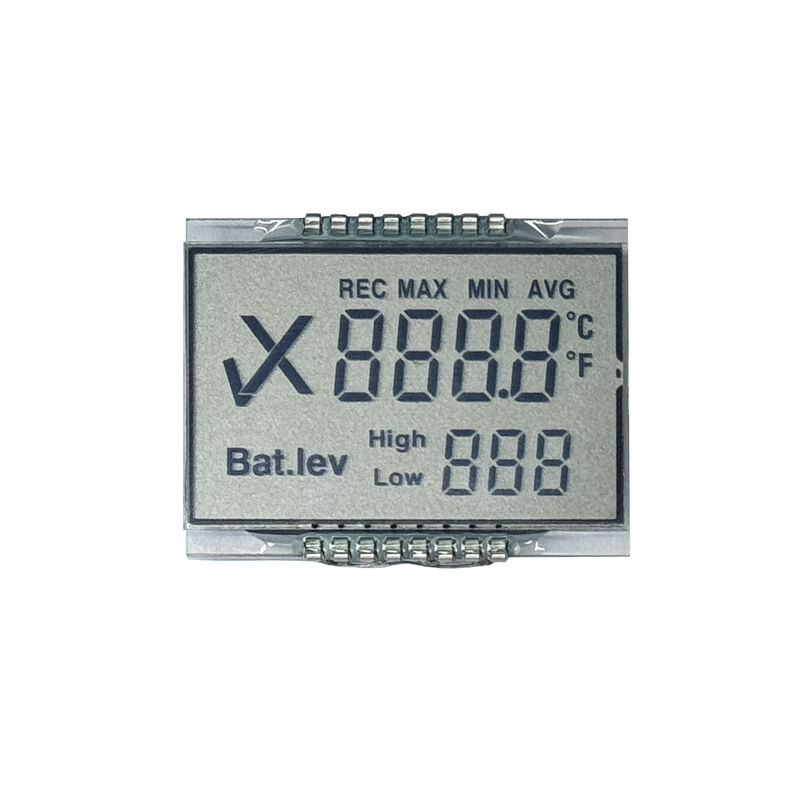

TN Positive Reflective Monochrome Black Digits Custom Segment LCD Display 1

Segment LCDs can be categorized in several ways based on their optical mode, driving method, and display structure.

By Optical Mode (Based on Light Transmission)

These affect visibility and power characteristics:

1. Reflective: Uses ambient light reflected off a mirror layer

2. Transmissive: Requires a backlight to be visible

3. Transflective: Combines reflective and transmissive modes

By LCD Technology

Determines display performance like contrast, viewing angle, and cost:

Type	Twist Angle	Performance
TN (Twisted Nematic)	~90°	Low cost, fast response, narrow viewing angle
HTN (High Twisted Nematic)	110–160°	Better contrast and viewing angle
STN (Super Twisted Nematic)	160–270°	Better viewing angle for alphanumeric or matrix displays
FSTN (Film-compensated STN)	Same as STN	Adds black background, higher contrast, and readability

Note: TN and HTN are most common for basic segment LCDs, while STN/FSTN are more for alphanumeric or dot-matrix LCDs.

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 25-30 days.

4. Q: Can I get free samples?

A: Yes, we would like to provide 3-10 pieces of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-40 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
