6 Digits 7 Segment LCD Display Small Size 5.0V HTN Transmissive 16PIN

Brand Name:	Genyu
Model Number:	GY52209H
MOQ:	4550 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	400K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

HTN, Positive

Viewing Angle:

6 O'clock

Operating Temperature:

0~+50℃

Connector:

Working Supply:

5.0V

Packaging Details:

Anti-static Bags & Carton Boxes

Supply Ability:

400K pcs/ Month

Product Description

6 Digits 7 Segment LCD Display Small Size 5.0V HTN Transmissive 16PIN

HTN stands for High Twisted Nematic, where the twist angle of the liquid crystals is increased to around 110°–160°, compared to about 90° in standard TN LCDs.

This results in improved optical performance without significantly increasing cost.

Comparison: TN vs HTN Segment LCD

Feature	TN LCD	HTN LCD
Twist Angle	~90°	110°–160°
Viewing Angle	Narrow	Improved
Contrast	Basic	Better
Cost	Lowest	Slightly higher
Applications	Simple displays	Improved readability displays

Common Applications

HTN segment LCDs are used in the same types of products as TN LCDs, but are chosen when better readability is needed:

1. Consumer & Portable Devices

Thermometers, digital clocks, calculators
Remote controls with screens
Health trackers and scales

2. Home Appliances

Washing machines, ovens, and microwave ovens (with improved display visibility)
Air conditioning control panels

3. Industrial & Medical Devices

Digital multimeters
Pressure gauges
Medical meters need better visibility under variable lighting

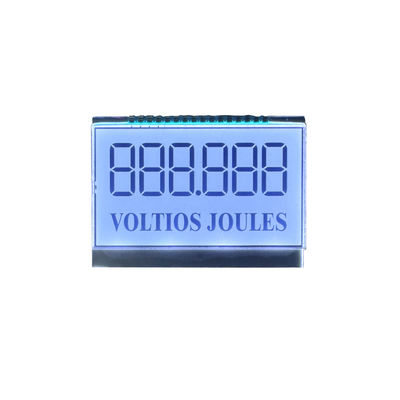

6 Digits 7 Segment LCD Display Small Size 5.0V HTN Transmissive 16PIN 0

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	GY52209H
2	LCD Type	HTN positive, transmissive
3	Viewing Angle	6 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 5.0V
5	Operating Temperature	0~+50℃
6	Storage Temperature	-10~+60℃
7	Connector	PIN, 16 numbers
8	Backlight	LED, White
9	Outline Dimension	48.0(W)* 30.0(H)* 2.8(T) mm
10	LCD View Area	44(W)* 24(H) mm

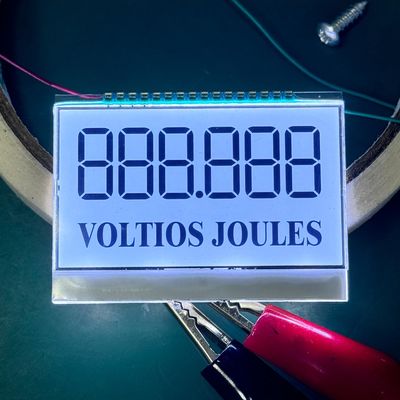

6 Digits 7 Segment LCD Display Small Size 5.0V HTN Transmissive 16PIN 1

Advantages of Segment LCDs

Segment LCDs (also known as static or fixed-pattern LCDs) are displays where only predefined segments (like numbers, icons, and bars) can be turned on or off.

1. Ultra Low Power Consumption

2. Very low cost

3. Custom Design Flexibility

4. Good Visibility in Ambient Light

5. Simple Interface and Control

6. Robust and Reliable

7. Thin and Lightweight

8. Fast Response Time

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 25-30 days.

4. Q: Can I get free samples?

A: Yes, we would like to provide 5-10 pieces of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-38 days.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
