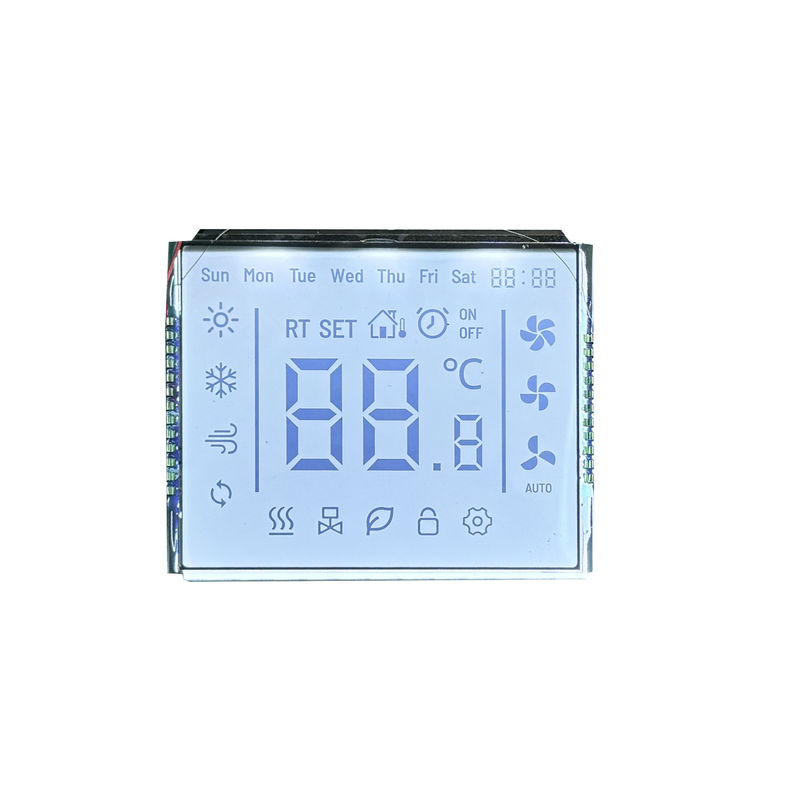

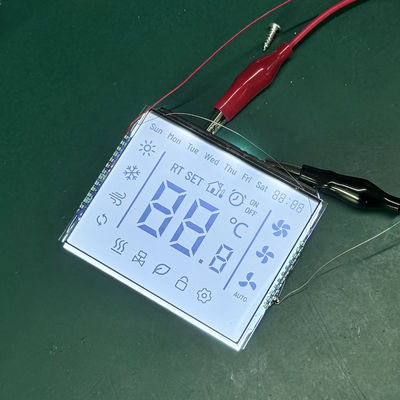

Customized TN LCD Segment Screen Transmissive White Backlight 4.5V 24PIN

Brand Name:	Genyu
Model Number:	GY52192T
MOQ:	1250 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	400K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

TN(Gray), Positive

Viewing Angle:

6 O'clock

Connector:

Voltage:

4.5V

Drive Mode:

1/4 Duty, 1/3 Bias

Operating Temperature:

0~+50℃

Packaging Details:

Foam & Carton Boxes

Supply Ability:

400K pcs/ Month

Product Description

Customized TN LCD Segment Screen Transmissive White Backlight 4.5V 24PIN

A TN segment LCD (Twisted Nematic Segment Liquid Crystal Display) is a type of passive matrix LCD technology that is custom-made with fixed segments, commonly used in simple, low-cost electronic displays.

How It Works

Segments are created in fixed patterns (e.g., 7-segment digits, battery icons, arrows).
Liquid crystals twist under an applied voltage, allowing or blocking light through polarized filters.
Only the predefined segments can be turned ON or OFF—no pixel-level control like dot-matrix displays.

Interface

Typically driven by direct drive (if few segments) or multiplexed drive (for many segments).
Driven by microcontrollers or LCD driver ICs like:
- HT1621 (for multiplexed)
- PCF8576, ST7032, etc.
Signals: Common (COM) and Segment (SEG) lines.

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	GY52192T
2	LCD Type	TN positive, transmissive
3	Viewing Angle	12 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 4.5V
5	Operating Temperature	0~+50℃
6	Storage Temperature	-10~+60℃
7	Connector	PIN, 24 numbers
8	Backlight	White
9	Outline Dimension	77.6(W)* 60.0(H)* 2.0(T) mm
10	LCD View Area	70.5(W)* 56.0(H) mm

Customized TN LCD Segment Screen Transmissive White Backlight 4.5V 24PIN 0

Why TN LCDs Are Chosen for These Products

Very Low Power Consumption (great for battery devices)
Simple Interface (static or multiplexed)
Inexpensive to Produce
Fast Response Times (compared to other passive types)
Customizable Segment Layouts

Main Product Applications of TN LCDs

Digital Watches
Calculators
Remote Controls
Thermometers / Hygrometers
Electronic Scales
Home Weather Stations
Pedometers / Fitness Devices
Electronic Toys

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 25-30 days.

4. Q: Can I get free samples?

A: Yes, we would like to provide 3-10 pieces of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-40 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
