products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Custom Segment LCD Display
Created with Pixso.

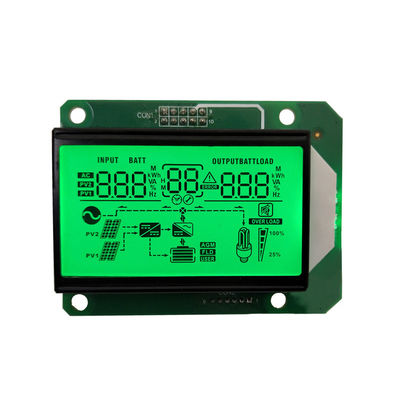

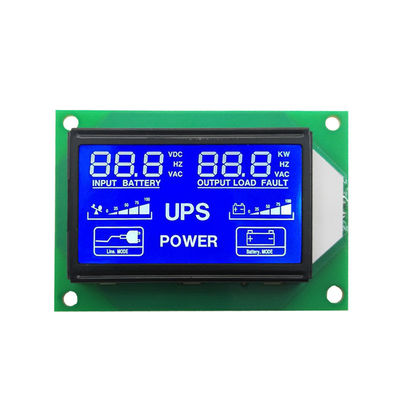

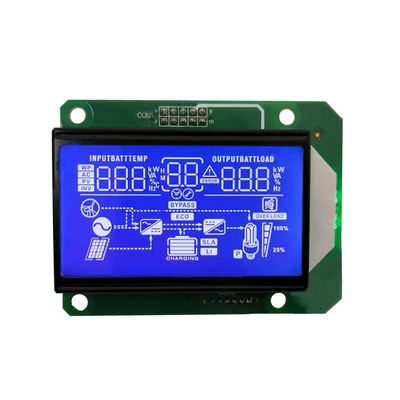

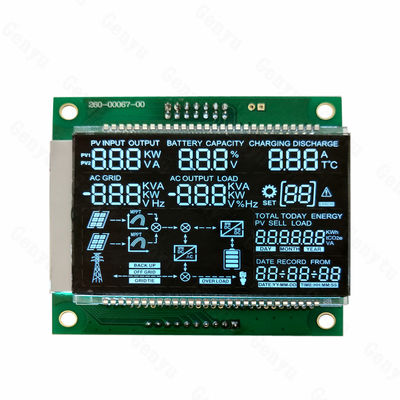

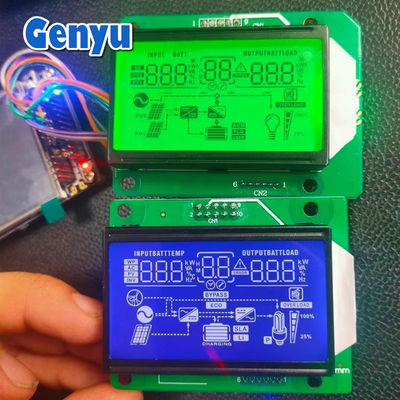

Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel

Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel

Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel

Brand Name: Genyu
MOQ: 1000 pieces
Price: $3/pieces 1000-4999 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Type:
Cob
Display Size:
Customized
Supplier Type:
Manufacturer
Product Name:
Customized Segment LCD For UPS Inverter
LCD Type:
Positive/ Negative
Viewing Angle:
6 /12 O'clock, Customized
Display Mode:
HTN, Transmissive
LCD Parameter:
Duty1/4 Bias1/3
Operating Temperature:
-0~+50℃
Storage Temperature:
-10~+60℃
Backlight:
LEDs, White/ Green
Control/Drive IC:
HT1621, Comptaible
Drive Voltage:
3.3V/5.0V
Highlight:

Customized UPS Inverter Segment LCD Module

,

Green Backlight COB Segment LCD Module

,

HTN Segment LCD Module

Product Description

Customized LCD Display Inverter VA HTN Blue Green Backlight Chip on Board UPS Segment LCD

Product Description

Brand: Genyu

Model Number: GY88128-COB

 Product Name  Segment LCD, Segment LCD Display, Segment LCD Module
 Display Mode  Transmissive, Negative/ Positive
 LCD Type  HTN( gray ) , HTN( blue ), VA( black )
 Driver IC  HT1621, HT1623, comptaible

 Backlight Color

  LEDs, Green/ White
 Viewing Angle  6/ 12 O'clock
 Drive Voltage  3.3V/5.0V
 LCD Parameter  Duty 1/4   Bias 1/3
 Operating Temperature  0~+50℃
 Storage Temperature  -10~+60℃

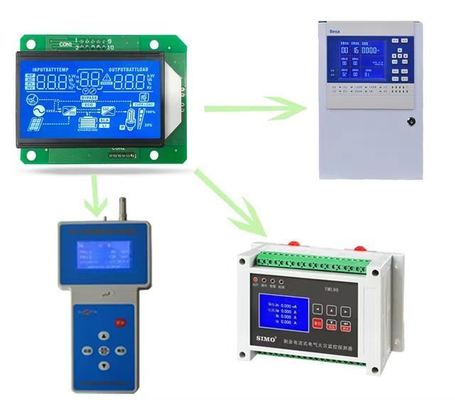

 Applications  Solar Inverter, UPS, Battery,  Energy Storage, etc.





Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 0



Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 1



Hot Stype Products

Hot Selling Monochrome LCD Displays maybe you will like:



GENYU mainly engaged in small middle sizes lcd display panels:

  • Monochrome or Color
  • COB, COG, TN/ HTN/ STN/ FSTN/ VA LCD
  • Segment, Graphic/ Dot Matrix, Character, OLED or TFT Display
Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 2 Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 3 Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 4 Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 5
HTN LCD, Transflective TN LCD, COG+PIN VA LCD, Black 16x2 LCD
Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 6 Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 7 Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 8 Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 9
128x64 LCD Module 128x64 LCD, FSTN 128x32, 2.23 Inch OLED 240x320, 2.4 Inch TFT



We have developed different models for different types, for more details, pls kindly contact us!

Customization also can be accepted, Free Samples after tooling charge.

Company Information
Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 10
Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 11
Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 12
Our Services

SEGMENT LCD, SEGMENT DISPLAY, SEGMENT LCD DISPLAY, SEGMENT LCD MODULE, CUSTOM LCD DISPLAY

Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 13



Our Advantages:



1.  Professional Technical Support, 24 Hours Service



2.  Strict Quality Control, Double Testing



3.  Large Daily Production, Faster Leading Time



4.  Factory Directly Supply, Competitive Price





Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 14

Control/Drive IC comptaible VA HTN Blue Green Backlight COB Segment LCD Module for Customized UPS Inverter Display Panel 15

FAQ



1.Q: Are you a manufactory or trade company?

A. We are a professional manufacturer, which specializes in TN, HTN, STN, FSTN, VA/BTN monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, LCD Modules located in Shenzhen and Jiangxi.



2. Q: How can I get the samples?

A: Send inquiry  --Offer quotation --Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect



3. Q: How long can I expect to get the sample?

A: Contour drawing: 2-5 days Sample time: 12-15 business days.



4. Q: Can I get a lower price of lcd display?

A: Yes, cheaper price with bigger/larger quantities order.



5. Q: How to customize a new lcd module?

A: Sure. Just give us messages of your specifications/demand and we will draw for you, Or send us your LCD drawing, then we will check for you.



 6. Q: What is the minimum order quantity?

A: All our products have MOQ requirements, please contact our salesman for detailed information.



7. Q: How long of mass production?

A: Usually 25-35 business days. It depends on different order quantities and part numbers.
