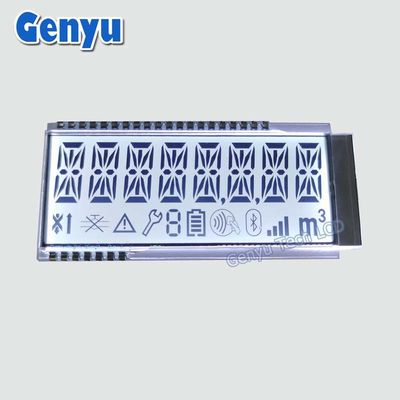

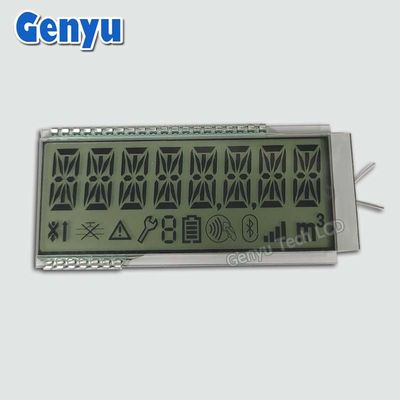

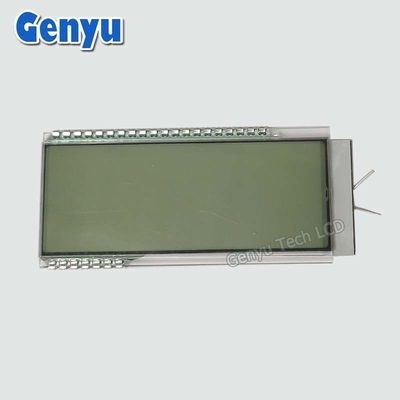

TN White 14 Segment LCD Display Black Digits Customized Sizes PIN Connect

Brand Name:	Genyu
Model Number:	GY51901
MOQ:	3300 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	400K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

TN(Gray), Positive

Viewing Angle:

6 O'clock

Connector:

Voltage:

3.0V

Drive Mode:

1/7 Duty, 1/3 Bias

Operating Temperature:

-10~+60℃

Packaging Details:

Foam & Carton Boxes

Supply Ability:

400K pcs/ Month

Highlight:

Customized Sizes 14 Segment LCD Display

Black Digits 14 Segment LCD Display

PIN Connect 14 Segment LCD Display

Product Description

TN White LCD Display 14 Segment Black Digits Customized Sizes PIN Connect

A Segment TN (Twisted Nematic) LCD is a type of LCD that is commonly used for simple numeric and alphanumeric readouts, such as those found in calculators, digital clocks, meters, and industrial equipment. It features pre-defined segments that can be turned on or off to form numbers, letters, or symbols.

Key Features of Segment TN LCD Displays:

Twisted Nematic (TN) Technology – Uses liquid crystal molecules that twist to control light passage, providing a simple and cost-effective display solution.
Segmented Design – Each display is designed with fixed segments, which can be selectively activated.
Low Power Consumption – Ideal for battery-powered devices.

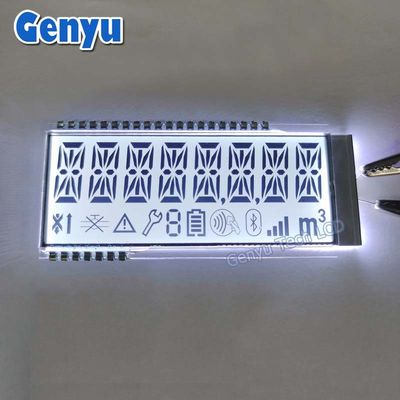

High Contrast with Backlight (Optional) – Can work with or without a backlight for better visibility.
Common Applications – Used in calculators, digital watches, thermometers, and basic measurement devices.

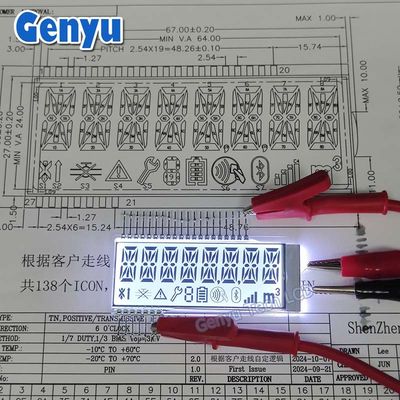

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	GY51901
2	LCD Type	TN positive, transmissive
3	Viewing Angle	6 O'clock
4	Drive Method	1/7 Duty, 1/3 Bias, 3.0V
5	Operating Temperature	-10~+60℃
6	Storage Temperature	-20~+70℃
7	Connector	PIN, 27 numbers
8	Backlight	White
9	Outline Dimension	82(W)* 80(H)* 2.8(T) mm
10	LCD View Area	79(W)* 73(H) mm

TN White 14 Segment LCD Display Black Digits Customized Sizes PIN Connect 0

Applications:

Digital Clocks
Thermostats
Medical Devices
Industrial Control Panels
Consumer Electronics (e.g., calculators, remote controls)
Automotive Dashboards

Customization Process:

Design the Layout: Define the segments needed (digits, letters, symbols).
Choose Display Technology: TN, STN, FSTN, or EBTN depending on contrast and viewing angle requirements.
Select Backlighting (if needed): LED backlight can be added for better visibility in low light.
Define Connection Type: Common options include Pin, Zebra Connector, or FPC.
Determine Drive Method: Typically driven by an LCD driver IC or microcontroller.

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 25-30 days.

4. Q: Can I get free samples?

A: Yes, we would like to provide 3-10 pieces of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-40 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
