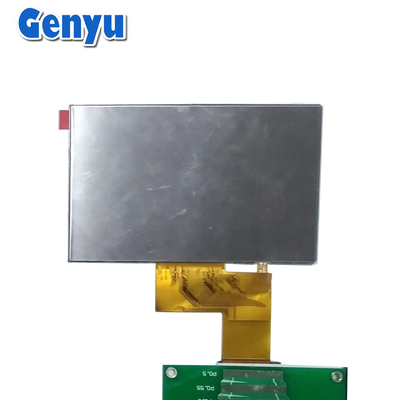

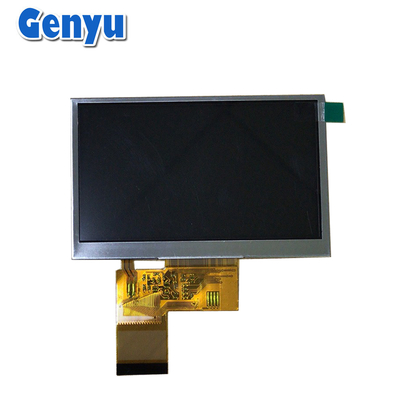

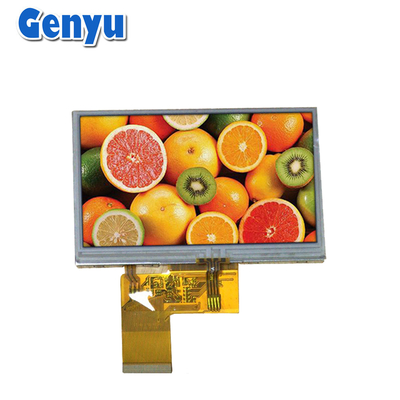

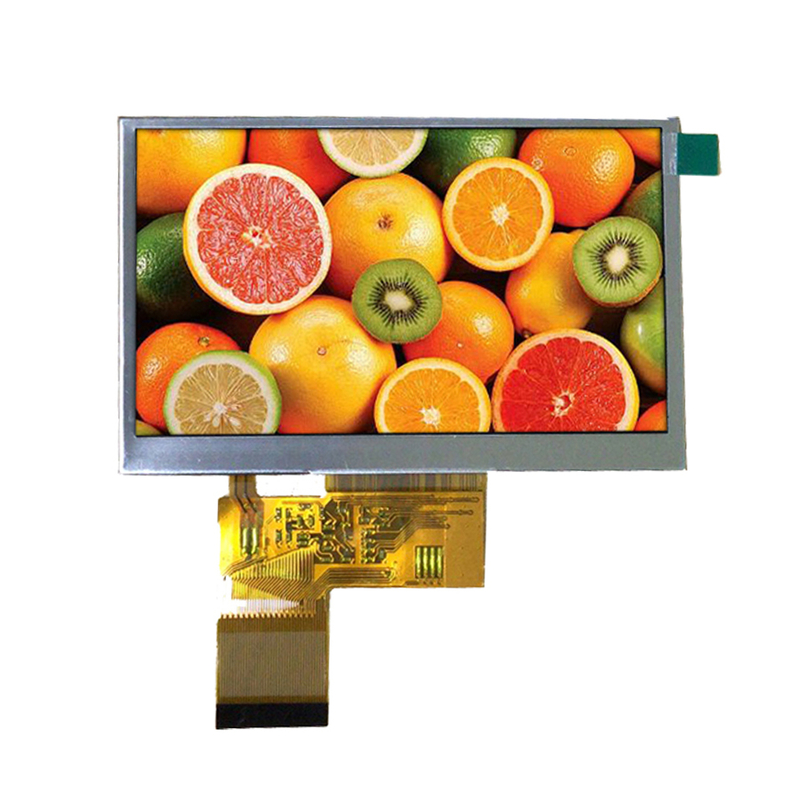

4.3 Inch TFT LCD Display Module 480x272 RGB Interface

4.3 Inch TFT LCD Display Module 480x272 RGB Interface

Brand Name: Genyu
MOQ: 1000
Price: $8.40-8.60
Detail Information
Place of Origin:
Guangdong, China
Display Size:
4.3 Inch
Resolution:
480*272
Display Mode:
TN / Transmission / Normally White
Viewing Direction:
6 O'clock
Module Size:
105.5(W)×67.2(H)×3.0(T) Mm
Panel Active Area:
95.04(W)×53.856(H) Mm
Driver IC:
OTA5180A
Backlight Type:
LED
Back Light:
10 White LED
Interface:
24-bit Parallel RGB Interface
Operating Temperature:
-20~+70℃
Storage Temperature:
-30~+80℃
Number Of Pixels:
480*272 Dots
Display Type:
TFT
Panel Type:
TN
Highlight:

4.3 inch TFT LCD display module

,

480x272 RGB interface display

,

TFT LCD panel with RGB

Product Description
Portable 480x272 4.3'' TN LCD Screen with Customizable Touch Panels
Product Specifications
Type TFT
Display Size 4.3 Inch
Supplier Type OEM/ODM
Backlight Type LED
Resolution 480×272
Operating Temperature -20°C to +70°C
Display Type TFT
Communication Interface 24-bit Parallel RGB Interface
Driver IC OTA5180A
Module Size 105.5(W)×67.2(H)×3.0(T) mm
Number of Pixels 480×272 Dots
Display Mode Transmissive
Interface 24-bit RGB
Viewing Direction 6 O'clock
Storage Temperature -30°C to +80°C
Detailed Technical Parameters
LCD Size 4.3 inch
Panel Type TN
Resolution 480×272
Display Mode TN / Transmission / Normally White
Viewing Direction 6 O'clock

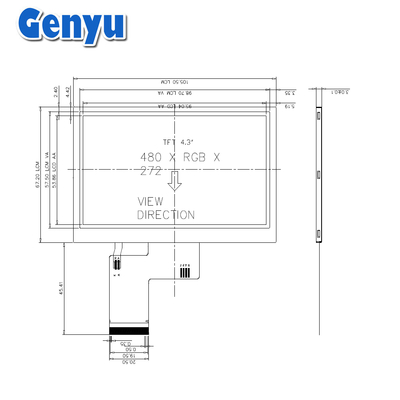

Module Size 105.5(W)×67.2(H)×3.0(T) mm
Panel Active Area 95.04(W)×53.856(H) mm
Driver IC OTA5180A
Back Light 10 White LED
Interface 24-bit Parallel RGB Interface
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
4.3 Inch TFT LCD Display Module 480x272 RGB Interface 0 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 1 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 2 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 3
About Genyu Optical

Established in 2003, Shen Zhen Genyu Optical Co., Ltd specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules. We offer professional customized LCD screens (including TN, HTN, STN, FSTN, VA/BTN), COG and COB LCD modules.

Our 30,000 square meter facility employs 1,000 staff including 36 technicians, 16 developers and 60 QC personnel. With modern automation equipment, advanced technology and a strong R&D team, we maintain high production standards.

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 4 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 5 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 6

We design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customer requirements. Current annual production capacity reaches 100 million LCD screens, 30 million LCMs and 40 million B/L units.

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 7 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 8 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 9
Clean Room Facilities

Our nearly 6,000 square meter dust-free workshop maintains a cleanliness level of 100k. The facility features:

  • Totally closed transfer windows for material handling
  • Air shower entrance to remove dust and contaminants
  • Effective contamination control for production quality
4.3 Inch TFT LCD Display Module 480x272 RGB Interface 10 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 11 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 12
Our Product Range
1. Custom Segment LCD Display

Genyu has produced tens of thousands of segment LCDs. We can recommend similar LCDs or design custom solutions based on your requirements. Our capabilities include TN, STN, HTN, FSTN, and VA/BTN LCD displays.

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 13 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 14
2. Dot Matrix Graphic LCD Display

Available in various configurations including 96×16, 96×24, 122×32, 132×36, 132×96, 128×32, 128×64, 128×96, 160×32, 160×80, 192×64, 240×80, 128×128, 160×160 up to 320×240 dot matrix LCD displays.

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 15 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 16
3. AMOLED Display

Mini size OLED displays ranging from 0.42" to 2.4" for various applications.

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 17 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 18
4. TFT LCD Display

HD full color TFT LCD displays from 0.91" to 10.1" with standard sizes and standing stock availability.

Wearable Device Medical Financial Industrial New Energy Communication Instrumentation
4.3 Inch TFT LCD Display Module 480x272 RGB Interface 19 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 20
Quality Assurance & Packaging

All products undergo strict inspection before packaging.

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 21
Plastic Containers

Each COG LCD product comes with custom plastic containers designed to securely hold individual LCD products.

4.3 Inch TFT LCD Display Module 480x272 RGB Interface 22
Shipping Information
  • Standard carton size: 398 × 331 × 430 mm (approx. 17 kg)
  • Items ship within 3 working days after payment
  • Shipping options:
    • DHL/UPS/FedEx/TNT: 2-5 working days
    • EMS: 7-10 working days
    • CPAM/HKPAM: 10-30 working days
4.3 Inch TFT LCD Display Module 480x272 RGB Interface 23 4.3 Inch TFT LCD Display Module 480x272 RGB Interface 24
Contact Information

Erica Tan
Tel: 0755-27856531
Mobile: +86-15919421997
WeChat: 15919421997
Skype: live:gyerica_1
Website: www.genyulcm.com
Email: Erica@szgenyu.com

What We Offer
  • Small order acceptance
  • High quality at competitive pricing
  • Guaranteed mass production lead times
  • Free technical support
  • Spare parts included with each order

With 20 years of experience in micro LCD panels, we're ready to meet your display needs.
