Genyu 2.0 Inch TFT LCD Display Module with 176x220 Dots Resolution and 22 Pin Interface

Brand Name:	Genyu
MOQ:	1000
Price:	$1.75-1.95

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Display Type:

TFT

Display Size:

2.0 Inch

Resolution:

176(RGB)x220 Dots

Interface:

8bit MCU

Viewing Direction:

12 O'clock

Display Color:

65K/262K

Drive IC:

ILI9225G

Backlight:

3 PCS White LEDs

Operating Temperature:

-20~+70℃

Active Area:

28.03(W)*35.04(H) Mm

Power Supply:

3.3 V

Module Size:

36.10(W)*51.90(H)*2.40(D) Mm

Viewing Area:

28.03(W)*35.04(H) Mm

Storage Temperature:

-30~+80 °C

Connection Method:

COG + FPC

Highlight:

2.0 inch TFT LCD Display

176x220 dots TFT LCD Module

22 pin TFT LCD Panel

Product Description

Genyu 22 Pin LCD Display - 2.0 Inch TFT Module

Small color display with 176×220 dots resolution, ideal for various industrial and electronic applications.

Pin Configuration

Pin	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21-22
Symbol	A	K	NC	NC	NC	VDD	D7	D6	D5	D4	D3	D2	D1	D0	RD	WR	RS	CS	TE	RESET	GND

Key Features

LCD Type: TFT
Interface: 8bits MCU
Drive IC: ILI9225G
Viewing Angle: 12 O'CLOCK
Power Supply: 3.3V
Backlight: 4PCS white LED

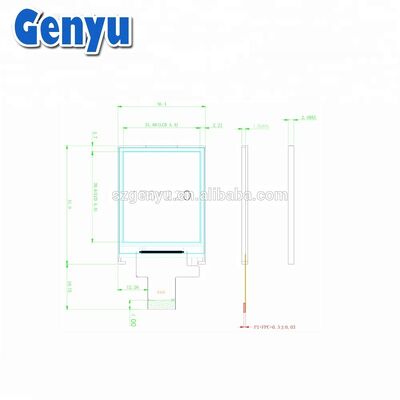

Technical Specifications

Display Method	2.0 inch TFT display
Module Size	36.10(W)×51.90(H)×2.40(D) mm
Viewing Area	28.03(W)×35.04(H) mm
Working Temperature	-20 to +70°C
Storage Temperature	-30 to +80°C
Connection Ways	COG + FPC

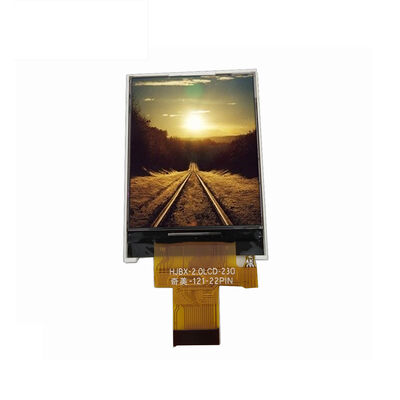

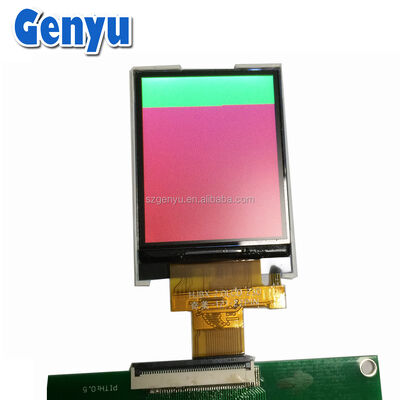

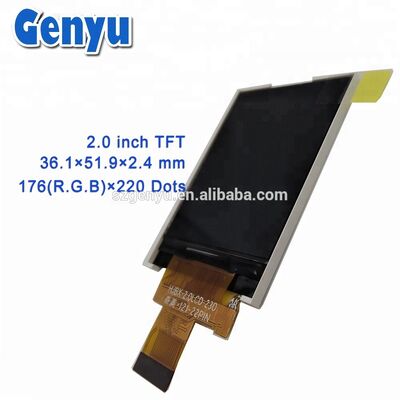

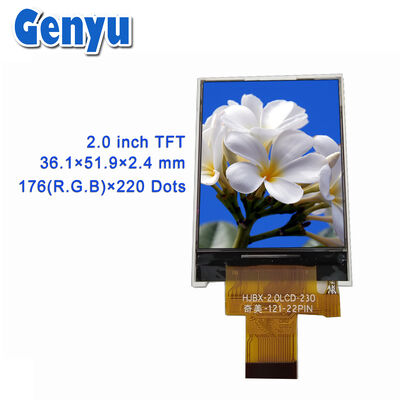

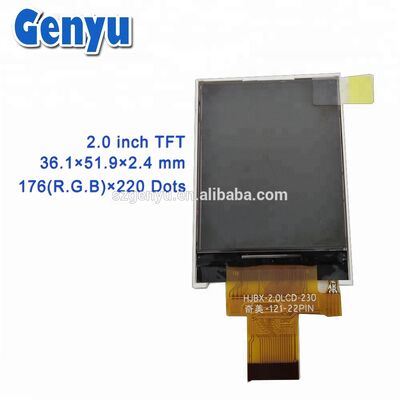

Product Images

Related Products

We offer a comprehensive range of TFT LCD displays to meet various application requirements:

TFT LCD Size	0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0"
View Angle	IPS Full view angle, 12:00, 6:00
Interface	RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization
FPC	Pull-in Connector, Solder Type, Support customization

For more datasheets and samples, please contact us.
