Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface

Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface

Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface

Brand Name: Genyu
MOQ: 100
Price: $7.15-7.86
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Display Size:
7.0 Inch
Resolution:
800x480 Dots
Display Mode:
Transmissive
Interface:
Parallel RGB 24-bit
Module Outline:
165*100*3.5 Mm
Active Area:
153.84x85.632 Mm
Viewing Direction:
6 O'clock
Backlight Type:
3*6 Chips White LED
Operating Temperature:
-20~+70℃
Input Voltage:
3.3V
Drive IC:
TBD
Connector:
COG+FPC
LED Voltage:
9V, 120mA
Storage Temperature:
-30~+80℃
Panel Size:
7 Inch
Highlight:

7.0 inch TFT LCD Display Module

,

800x480 Dots TFT LCD Panel

,

Parallel RGB 24-bit TFT Display Module

Product Description
Genyu 7.0 inch TFT LCD Display Module
High-quality 7.0 inch transmissive TFT LCD display module with 800x480 resolution and parallel RGB 24-bit interface.
Product Specifications
Specification Details
Product Name 7.0 inch TFT LCD Display Module
TFT Module Size 165×100×3.5 mm
TFT Active Area 153.84×85.632 mm
Connector COG+FPC
Resolution 800×480 dots
Viewing Angle 6 O'clock
Interface Parallel RGB 24-bit
Drive IC TBD
Backlight Type 3×6 LEDs, parallel
Supply Voltage 3.3V
LED Voltage 9V, 120mA
Operate Temperature -20℃ to +70℃
Storage Temperature -30℃ to +80℃

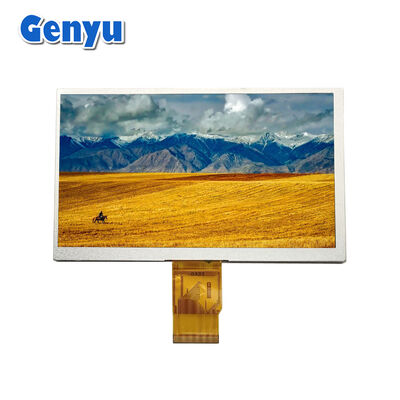

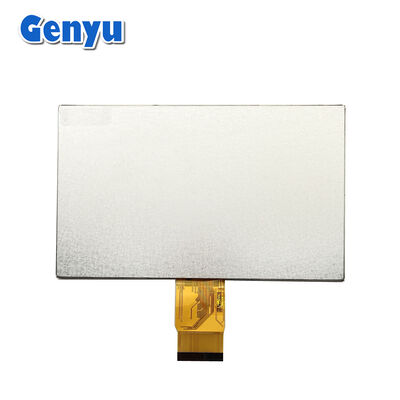

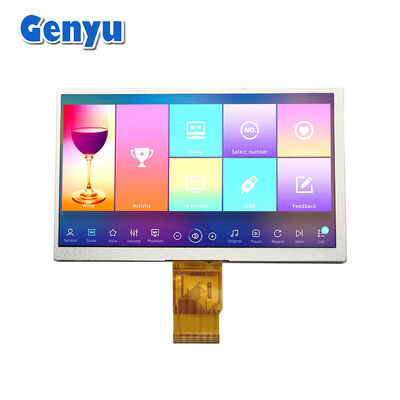

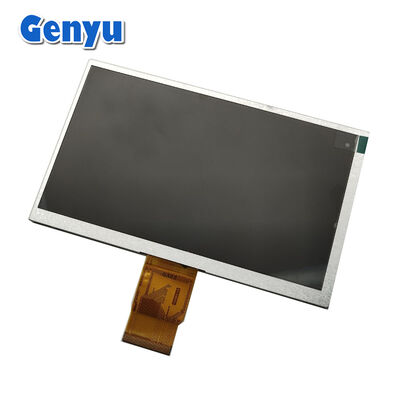

Product Images
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 0 Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 1
Similar TFT Display Products
We develop small to medium size TFT LCD displays ranging from 0.96 inch to 7 inch, including:
  • 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.77", 1.83", 1.99"
  • 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 4.45", 5", 5.5", 7"
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 2
1.9 inch, 170×320 Dots SPI/MCU Interface
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 3
2.4 inch, 240×320 Dots SPI/MCU Interface
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 4
2.8 inch, 240×320 Dots SPI/MCU/RGB Interface
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 5
3.5 inch, 320×480 Dots SPI/Parallel/MIPI Interface
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 6
4.3 inch, 480×272 Dots SPI/Parallel/RGB Interface
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 7

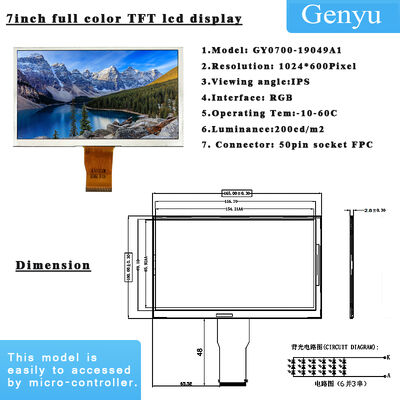

7 inch, 1024×600 Dots TTL/RGB/MIPI/LVDS Interface
Company Information
Genyu Technology (H K) Limited | Shen Zhen Genyu Optical Co.,Ltd
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 8 Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 9 Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 10
Our Services
  • All products are shipped as shown with detailed instructions and technical support
  • Quality assurance with aging tests and 100% visual and electrical inspection
  • Product upgrade notifications with backward compatibility
  • 12-month warranty period on all products
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 11 Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 12
Packaging & Shipping
Payment Options
T/T, Paypal, Credit Card - Please contact us for payment details
Delivery Methods
  • DHL/UPS/FedEx: 5-9 working days
  • TNT/EMS/Postal: 10-15 working days
  • Postal: 15-30 working days
Packaging
  • Electrostatic Bag / Anti-static Trays / Plastic Pallet / Air Bubble Film
  • Suitable carton boxes designed to withstand rough handling
Genyu 7.0 inch TFT LCD Display Module with 800x480 Dots Resolution and Parallel RGB 24-bit Interface 13
Frequently Asked Questions
Q: Are you a manufactory or trade company?
A: We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.
Q: Will you offer a free sample?
A: For first cooperation, samples are charged but amount is returned at mass order stage. For regular cooperation, samples can be free.
Q: What is the delivery time?
A: Sample order: 2-3 weeks. Mass production: 4-6 weeks.
Q: Can you customize the LCD or touch screen?
A: Yes, we provide custom services for LCD displays (backlight brightness, FPC cable) and touch screens (color, shape, cover thickness).
Q: Which applications are your products used for?
A: Embedded systems, Intercom systems, Biometrics, HMI, Smart home, Robotics, Hand-held PDA, Aftermarket automotive, and more.
