TFT LCD Display Panel
Created with Pixso.

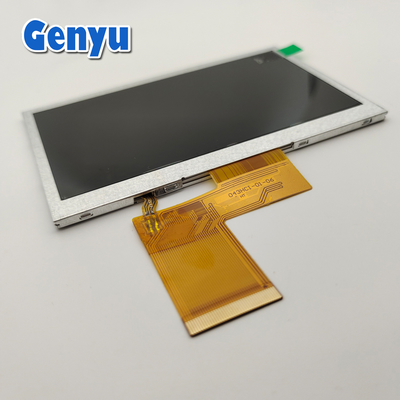

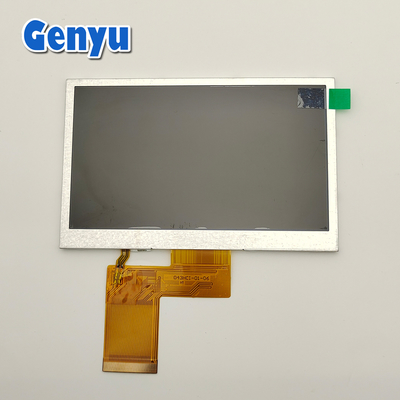

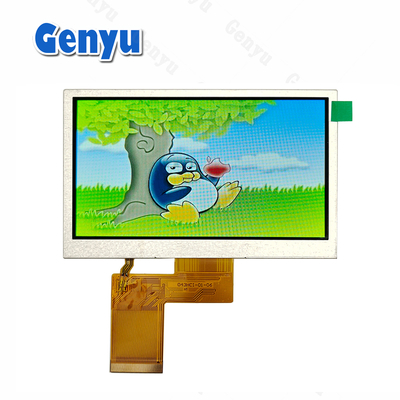

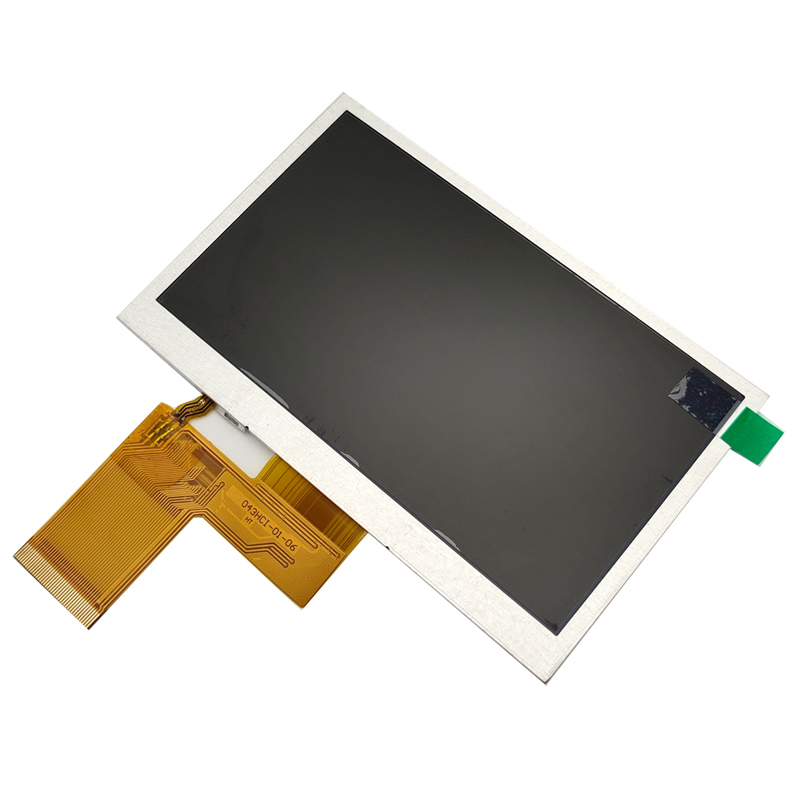

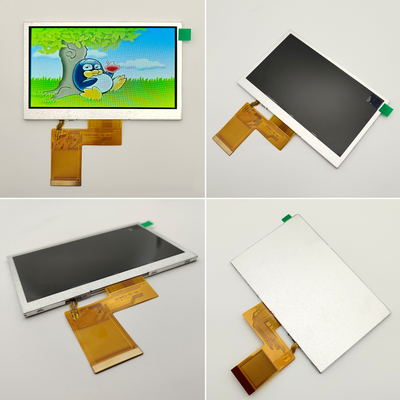

4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module

4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module

4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module

Brand Name: Genyu
MOQ: 1000
Price: $8.40-8.60
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Display Size:
4.3 Inch
Resolution:
480*272
Panel Type:
TN
Viewing Direction:
12 O'clock
Module Size:
105.5mm(W)*67.2mm(H)*3.0mm(T)
Active Area:
95.04mm(W)×53.856mm(H)
Interface:
RGB
Operating Temperature:
-20~+70℃
Storage Temperature:
-30~+80℃
Display Mode:
Transmissive
Backlight Type:
LED
Number Of Pixels:
480*272
Display Type:
TFT
Screen Size:
4.3 Inch
Communication Interface:
RGB
Highlight:

4.3 inch TFT LCD display module

,

480x272 RGB interface LCD

,

TN panel TFT display

Product Description
4.3 Inch 480*272 TFT LCD Display RGB Interface TN Viewing Angle 4.3 Inch Transmissive LCD Module
Product Specifications
Type TFT
Display Size 4.3 Inch
Supplier Type OEM/ODM
Backlight Type LED
Resolution 480*272
Operating Temperature -20 ~ +70℃
Display Type TFT
Screen Size 4.3 inch
Communication interface RGB
Module Size 105.5mm(W)*67.2mm(H)*3.0mm(T)
Number of Pixels 480*272
Display Mode Transmissive
Interface RGB
Viewing Direction 12 O'clock
Storage temperature -30 ~ +80℃
Detailed Specifications
LCD Size 4.3 inch
Panel Type TN
Resolution 480*272
Viewing Direction 12 O'clock
Module Size 105.5mm(W)×67.2mm(H)×3.0mm(T)
Panel Active Area 95.04mm(W)×53.856mm(H)
Interface RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 0 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 1 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 2
About Our Company
Established in 2003, Shen Zhen Genyu Optical Co., Ltd specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules. We offer professional customized LCD screens (including TN, HTN, STN, FSTN, VA/BTN), COG and COB LCD modules.
Our facility covers approximately 30,000 square meters with 1,000 employees, including 36 technicians, 16 developers and 60 QC staff. We have assembled a core team of high-quality talent including LCD experts, process engineers, R&D engineers, and B/L and FPC specialists.
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 3 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 4 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 5
We design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customer requirements. Our current annual production capacity includes 100 million LCD screens, 30 million LCMs and 40 million B/L units.
Quality Assurance
Our nearly 6,000 square meter dust-free workshop maintains a cleanliness level of 100k. The facility features totally closed transfer windows for materials and air showers at entrances to effectively remove dust and contaminants, ensuring high product quality.
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 6 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 7 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 8
Our Product Range
1. Custom Segment LCD Display
We have produced tens of thousands of segment LCDs. We can recommend existing solutions or design custom LCDs to meet your specific requirements. Our capabilities include TN, STN, HTN, FSTN, and VA/BTN LCD displays.
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 9 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 10
2. Dot Matrix Graphic LCD Display
Our product range includes various dot matrix LCD displays in sizes from 96x16 up to 320x240 pixels, suitable for diverse applications.
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 11 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 12
3. AMOLED Display
We offer mini size OLED displays ranging from 0.42" to 2.4" for compact device applications.
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 13 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 14
4. TFT LCD Display
Our HD full color TFT LCD displays range from 0.91" to 10.1" with standard sizes and standing stock availability.
Wide range of applications:
• Wearable Devices
• Medical Equipment
• Financial Systems
• Industrial Applications
• New Energy Systems
• Communication Devices
• Instrumentation
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 15 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 16
Packaging and Shipping
All products undergo strict inspection before packaging. COG LCD products are protected in custom plastic containers, with carton dimensions of 398 x 331 x 430 mm (approximately 17 kg).
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 17 4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 18
Shipping Information:
• Items ship within 3 working days after payment
• Express shipping (DHL/UPS/FedEx/TNT): 2-5 working days
• EMS: 7-10 working days
• CPAM/HKPAM: 10-30 working days
Contact Information
Erica Tan
Tel: 0755-27856531
Mobile: +86-15919421997
Wechat: 15919421997
Skype: live:gyerica_1
Website: www.genyulcm.com
Email: Erica@szgenyu.com
What We Offer:
• Acceptance of small orders
• High quality products at competitive prices
• Guaranteed mass production lead times
• Free technical support
• Spare parts included with each order
4.3 Inch TFT LCD Display 480x272 RGB Interface TN Module 19
