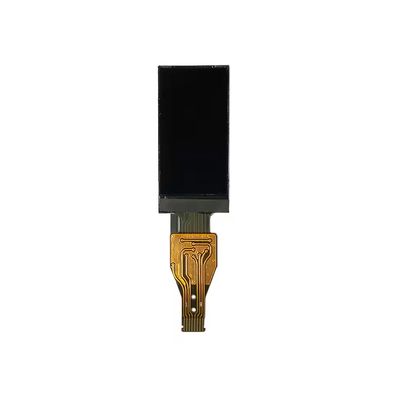

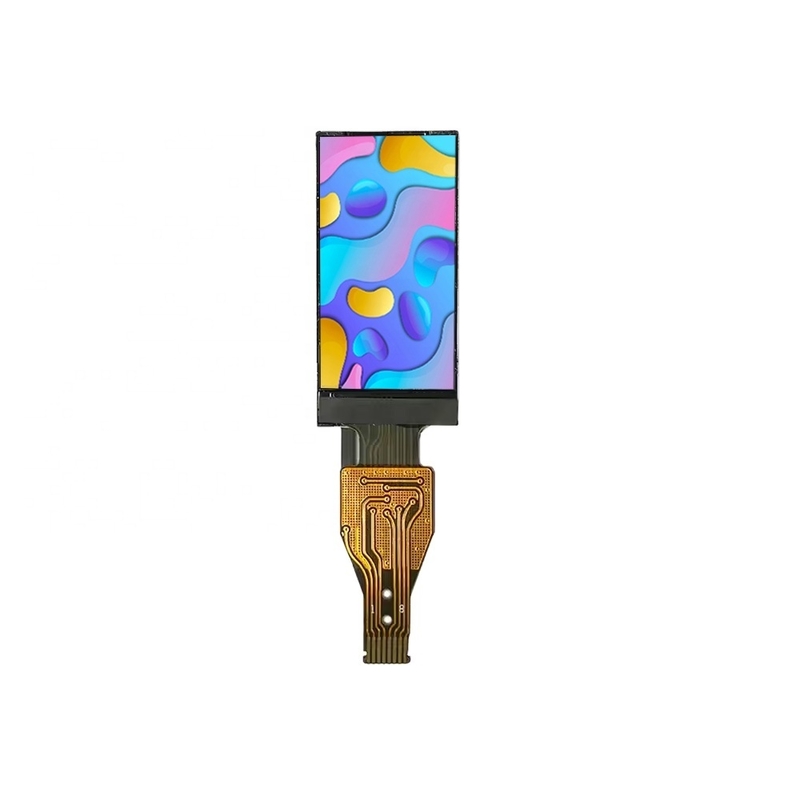

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution

Brand Name: Genyu
MOQ: 100
Price: $1-1.40
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Display Size:
0.96 Inch
Backlight Type:
LED
Resolution:
80xRGBx160, 80*160 Dots
Brightness:
400cd/m2
Operating Temperature:
-20~+70℃
Mounting Type:
PCB
Communication Interface:
4 SPI
Driver IC:
ST7735S
Panel Type:
IPS
Luminance:
400 Cd/m2
Viewing Angle:
360°
Storage Temperature:
-30~+80℃
Module Size:
14.04(H)*27.95(V)*1.4(D)mm
Panel Active Area:
10.8*21.7mm
Display Type:
TFT
Highlight:

0.96 inch IPS TFT LCD module

,

4SPI interface TFT display

,

80x160 resolution LCD panel

Product Description
OEM/ODM Factory Direct 0.96 Inch TFT LCD IPS Small TFT LCD Module
Product Specifications
Attribute Value
Type TFT
Display Size 0.96 inch
Supplier Type OEM/ODM
Backlight Type LED
Resolution 80xRGBx160, 80*160 dots
Brightness 400cd/m²
Operating Temperature -20~+70℃
Mounting Type PCB
Communication Interface 4 SPI
Driver IC ST7735S
Panel Type IPS
Viewing Angle 360°
Storage Temperature -30~+80℃
Product Images
0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 0 0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 1 0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 2
Technical Details
  • LCD Size: 0.96 inch
  • Panel Type: IPS
  • Resolution: 80*160
  • Viewing Direction: All angles
  • Module Size: 14.04(H)*27.95(V)*1.4(D)mm
  • Panel Active Area: 10.8*21.7mm
  • Interface: 4SPI
About Genyu Optical

Established in 2003, Shen Zhen Genyu Optical Co., Ltd specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules. We offer professional customized LCD screens including TN, HTN, STN, FSTN, VA (BTN), COG and COB LCD modules.

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 3 0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 4

Our 30,000 square meter facility employs 1,000 staff including 36 technicians, 16 developers and 60 QC personnel. With modern automation equipment and a strong R&D team, we maintain an annual production capacity of:

  • 100 million LCD screens
  • 30 million LCMs
  • 40 million B/L
Quality Manufacturing Environment

Our nearly 6,000 square meter dust-free workshop maintains a cleanliness level of 100k. The facility features:

  • Totally closed transfer windows for material handling
  • Air shower systems to remove contaminants
  • Strict quality control processes
0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 5 0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 6
Product Range
1. Custom Segment LCD Display

We offer TN, STN, HTN, FSTN, VA/BTN LCD displays with extensive customization options.

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 7
2. Dot Matrix Graphic LCD Display

Available in various configurations including 96x16, 128x64, 160x160 up to 320x240 dot matrix displays.

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 8
3. AMOLED Display

Mini size OLED displays ranging from 0.42" to 2.4".

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 9
4. TFT LCD Display

HD full color TFT LCD displays from 0.91" to 10.1" with standard sizes and standing stock availability.

Applications: Wearable devices, medical equipment, financial terminals, industrial controls, new energy systems, communication devices, and instrumentation.

0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 10
Packaging & Shipping
  • Custom plastic containers for COG LCD products
  • Standard carton size: 398 x 331 x 430 mm (17kg)
  • Shipping options:
    • DHL/UPS/FedEx/TNT: 2-5 working days
    • EMS: 7-10 working days
    • CPAM/HKPAM: 10-30 working days
0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 11 0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 12
Contact Information

Erica Tan
Tel: 0755-27856531
Mobile: +86-15919421997
WeChat: 15919421997
Skype: live:gyerica_1
Website: www.genyulcm.com
Email: Erica@szgenyu.com

What We Offer
  • Small order acceptance
  • High quality at competitive prices
  • Guaranteed mass production lead times
  • Free technical support
  • Spare parts included with each order
0.96 Inch IPS TFT LCD Module with 4SPI Interface 80x160 Resolution 13
