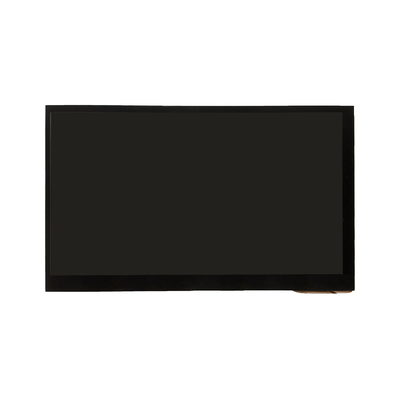

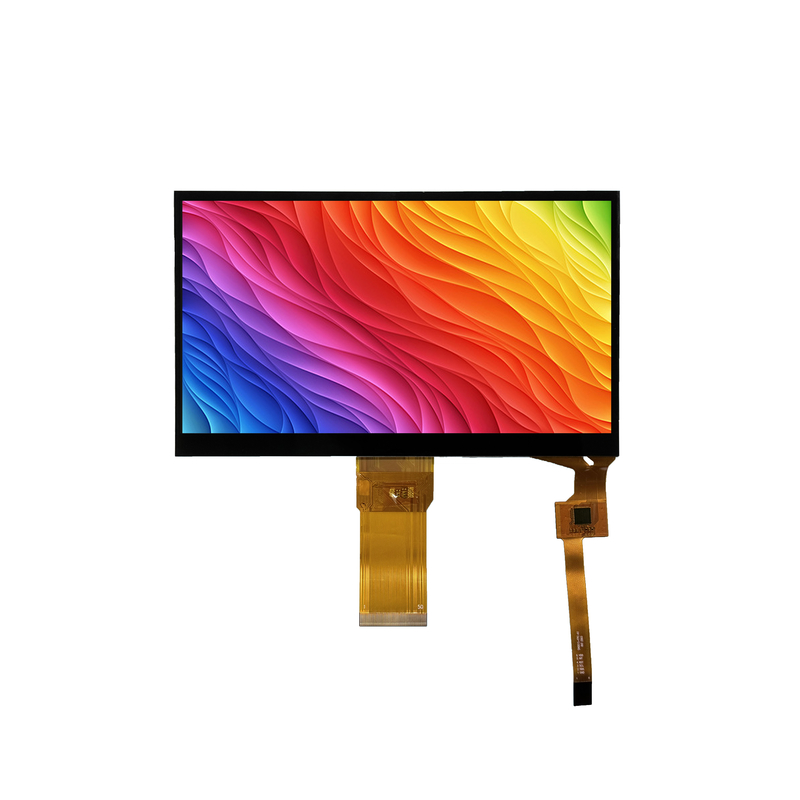

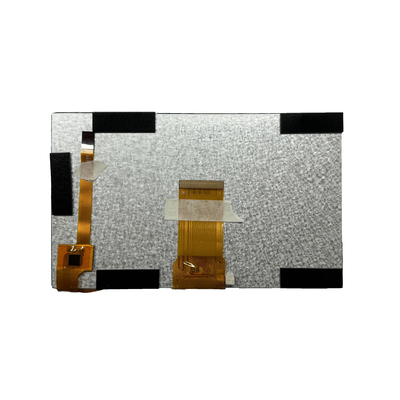

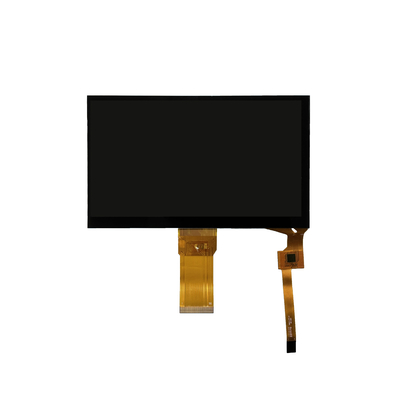

7 Inch IPS TFT LCD Module 1024x600 with Capacitive Touch Screen

Brand Name:	Genyu
MOQ:	100
Price:	$18-20

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Display Type:

IPS

Display Size:

7 Inch

Resolution:

1024*600

Brightness:

200cd/㎡

Operating Temperature:

-20°C~+70°C

Storage Temperature:

-30°C~+80°C

Module Size:

165mm(W)*100mm(H)*5.4mm(T)

Active Area:

154.21mm(W)×85.92mm(H)

Backlight Type:

LED

Mounting Type:

PCB

Display Mode:

Normal Black

Viewing Angle:

ALL

Driver IC:

HX8282+HX8696

TP IC:

GT911

Operate Voltage:

3.3V

Highlight:

7 inch IPS TFT LCD module

1024x600 capacitive touch screen

TFT LCD display panel with touch

Product Description

Indoor Low Brightness 200nits 1024*600 50pin Capacitive Touch Screen 7 Inch TFT LCD Module LCD Panel LCD Display

Product Specifications

Type	TFT
Display Size	7 inch
Supplier Type	ODM/OEM
Backlight Type	LED
Resolution	1024*600
Brightness	200cd/㎡
Operating Temperature	-20°C~+70°C
Display Type	IPS
Mounting Type	PCB
Driver IC	HX8282+HX8696
Dot Matrix	1024*600 dots
Display Mode	Normal Black
Viewing Angle	ALL
Module Size	165(W)100(H)5.4(T) mm
Active Area	154.21(W)*85.92(H) mm
Storage Temperature	-30°C~+80°C
TP IC	GT911
Operate Voltage	3.3V

Product Details

LCD Size	7 inch
Panel Type	IPS
Resolution	1024*600
Viewing Direction	ALL
Module Size	165mm(W)100mm(H)5.4mm(T)
Panel Active Area	154.21mm(W)×85.92mm(H)
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃

About Genyu Optical

Established in 2003, Shen Zhen Genyu Optical Co.,Ltd specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules. We offer professional customized LCD screens (including TN, HTN, STN, FSTN, VA (BTN)), COG and COB LCD modules.

Our plant covers approximately 30,000 square meters with 1,000 employees, including 36 technicians, 16 developers and 60 QC staff. We have a core team of high-quality talents including LCD experts, process engineers, LCM R&D engineers, and B/L/FPC engineers.

We design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customer requirements. Our current annual production capacity includes 100 million LCD screens, 30 million LCMs and 40 million B/L units.

Manufacturing Capabilities

Our 6000 square meter dust-free workshop maintains a cleanliness level of 100k. The facility features:

Totally closed transfer windows for material handling
Air shower entrance to remove contaminants
Strict quality control processes

Product Range

1. Custom Segment LCD Display

We have produced tens of thousands of segment LCDs with various technologies including TN, STN, HTN, FSTN, and VA/BTN.

2. Dot Matrix Graphic LCD Display

Available in multiple configurations including 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128, 160x160 up to 320x240 dot matrix.

3. AMOLED Display

Mini size OLED displays ranging from 0.42" to 2.4".

4. TFT LCD Display

HD full color TFT LCD displays from 0.91" to 10.1", with standard sizes and standing stock available.

Wide range of applications:

Wearable Devices
Medical Equipment
Financial Terminals
Industrial Controls
New Energy Systems
Communication Devices
Instrumentation

Packaging & Shipping

All products undergo strict inspection before packaging. Each COG LCD product comes with custom plastic containers for secure transport.

Standard carton size: 398 x 331 x 430 mm (approximately 17 KG).

Shipping options:

DHL/UPS/FedEx/TNT: 2-5 working days
EMS: 7-10 working days
CPAM/HKPAM: 10-30 working days
