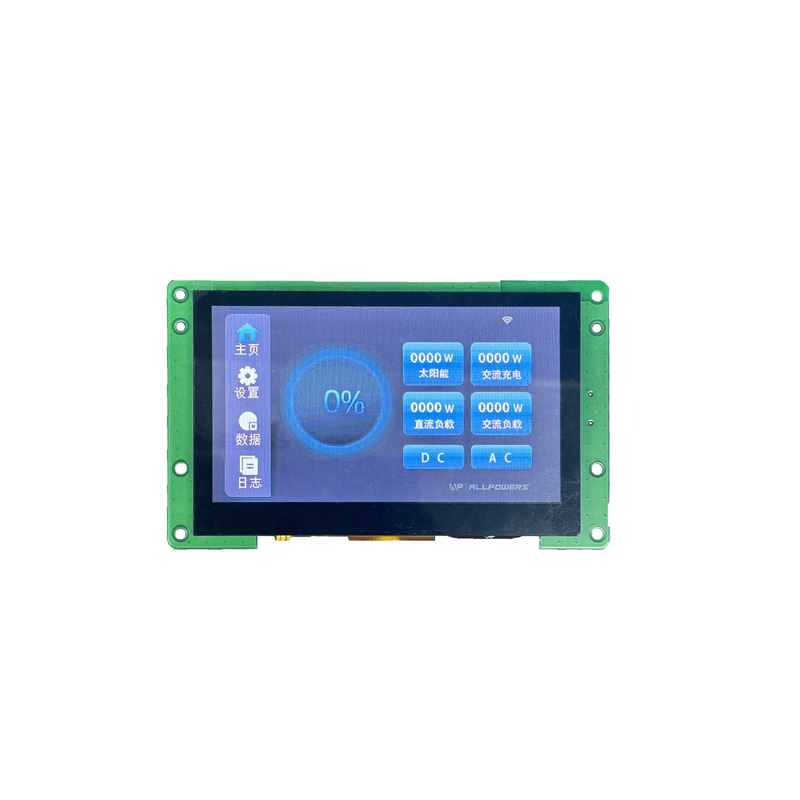

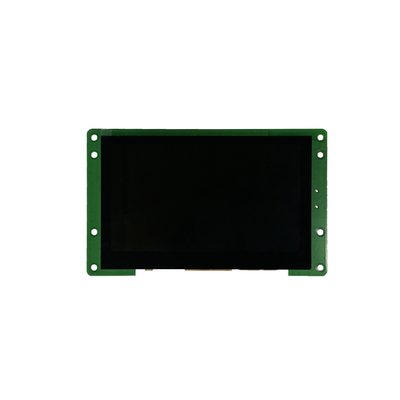

4.3 Inch TFT LCD Display 480x272 with Capacitive Touch

Brand Name:	Genyu
MOQ:	100
Price:	$17.11-18

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Display Size:

4.3 Inch

Resolution:

480*272

Brightness:

500 Cd/m2

Operating Temperature:

-20~70 ℃

Module Size:

121.92mm(W) X 73.2mm(H) X 8.58mm(D)

Active Area:

95.04mm(W) X 53.856mm(H)

Color Depth:

65K(65536) Colors

Viewing Angle:

85/85/85/85

Interface:

UART

Touch Panel:

Capacitive

Weight:

105 G

Dot Pitch:

0.066mm(W) X 0.198mm(H)

Pixel Pitch:

0.198mm(W) X 0.198mm(H)

Backlight Current:

40mA @16V (Typ.)

Display Mode:

Normally Black, IPS, Transmissive

Highlight:

4.3 inch TFT LCD display with capacitive touch

480x272 resolution TFT LCD panel

capacitive touch TFT display panel

Product Description

4.3 Inch TFT LCD Display with Capacitive Touch

Product Specifications

Attribute	Value
Display Type	TFT LCD
Display Size	4.3 inch
Resolution	480×272 pixels
Brightness	500 cd/m²
Viewing Angle	85°/85°/85°/85° (L/R/T/B)
Color Depth	65K (65536) colors
Touch Panel	Capacitive
Interface	UART
Operating Temperature	-20°C to 70°C

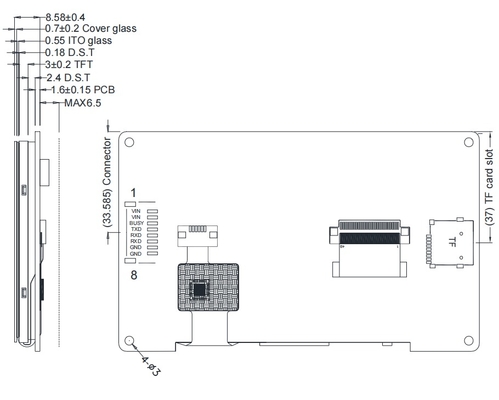

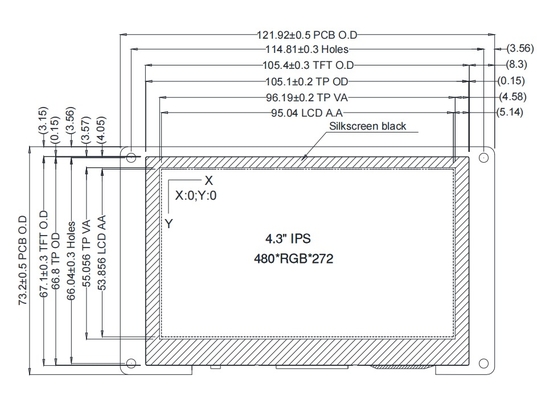

Module Dimensions	121.92×73.2×8.58 mm
Weight	105 g

Detailed Technical Specifications

LCD Size	4.3 inch (Diagonal)
Driver Element	a-Si TFT active matrix
Display Mode	Normally black, IPS, Transmissive
Dot Pitch	0.066mm(W) × 0.198mm(H)
Pixel Pitch	0.198mm(W) × 0.198mm(H)
Active Area	95.04mm(W) × 53.856mm(H)
Color Arrangement	RGB-stripe
Backlight Driving	40mA @16V (Typ.)
Compliance	RoHS compliant

Key Features

High-quality 4.3" TFT LCD with capacitive touch
480×272 resolution with 65K colors
Wide viewing angles (85° in all directions)
Bright 500 cd/m² LED backlight
UART interface for easy integration
Compact module size with integrated controller
Wide operating temperature range (-20°C to 70°C)
RoHS compliant construction

Manufacturer Information

Shen Zhen Genyu Optical Co., Ltd. specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules since 2003. Our 30,000 square meter facility houses 1,000 employees including 36 technicians and 16 developers.

Production Capabilities

Annual production capacity of 100 million LCD screens
30 million LCMs and 40 million backlights
6,000 square meters of 100k-class clean room
Advanced air shower system for contamination control

Product Applications

Wide range of applications including:

Wearable Devices
Medical Equipment
Financial Terminals
Industrial Controls
New Energy Systems
Communication Devices
Instrumentation

Packaging & Shipping

Each product undergoes strict inspection before packaging
Custom plastic containers for COG LCD products
Standard carton size: 398 × 331 × 430 mm (approx. 17kg)
Shipping options: DHL/UPS/FedEx/TNT (2-5 days), EMS (7-10 days), CPAM/HKPAM (10-30 days)
