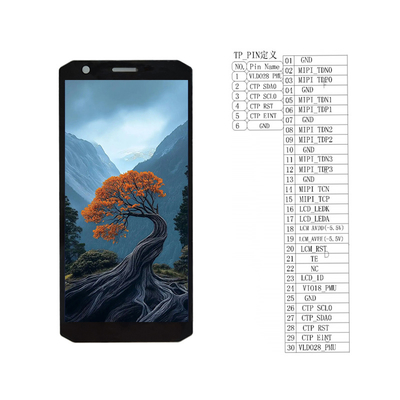

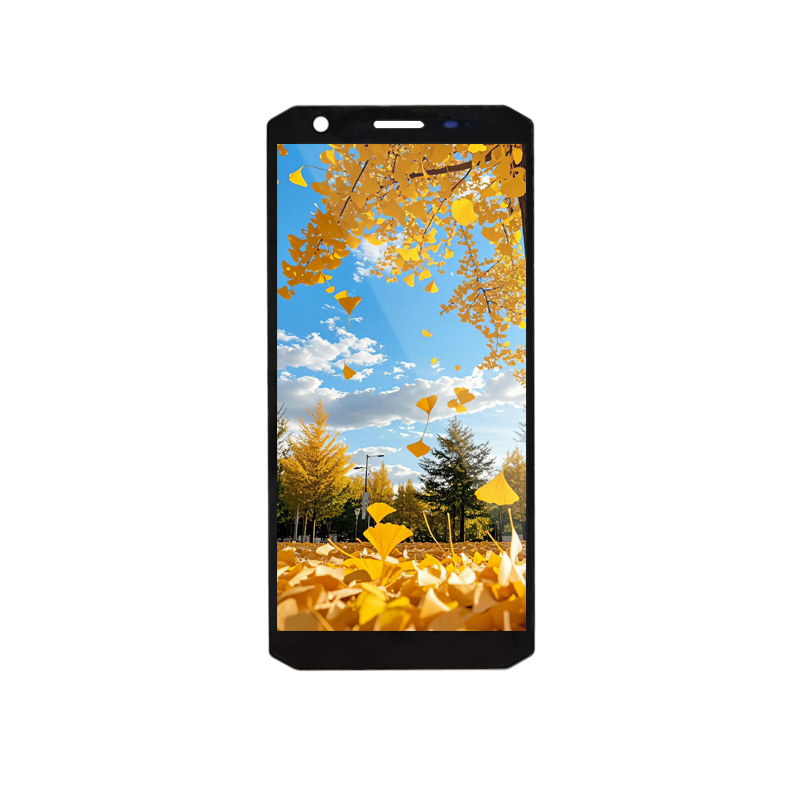

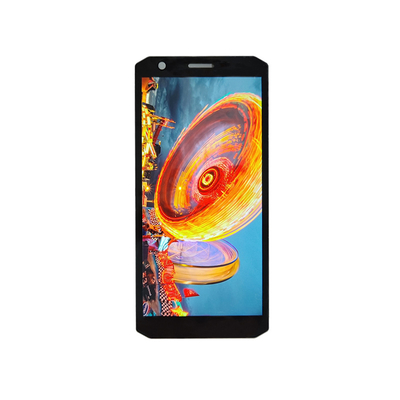

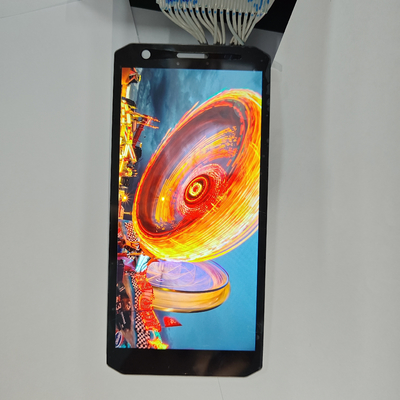

5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface

5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface

5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface

Brand Name: GENYU
MOQ: 100
Price: $10-15
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Display Type:
TFT
Display Size:
5.45 INCH
Backlight Type:
LED
Resolution:
720*1440
Operating Temperature:
-20~70℃
Mounting Type:
PCB
Screen Size:
5.45"
Communication Interface:
MIPI Interface/30 Pin
Driver IC:
HX8394F
LCD Type:
TFT Transmissive
Number Of Dots:
720x (RGB) X 1440
Pixel Arrangement:
RGB Vertical Stripe

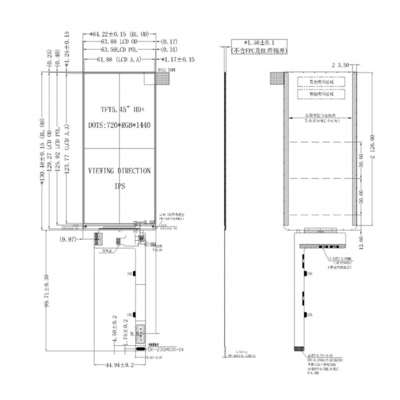

Active Area:
61.88(H) X 123.77(V)
Viewing Direction:
ALL
Module Size:
64.22(H) × 130.48 (H) *1.62
Highlight:

5.45 inch TFT LCD display module

,

MIPI interface LCD display panel

,

720x1440 resolution TFT LCD module

Product Description
720×1440 IPS LCD Display Module
5.5 Inch All Viewing Angle MIPI Interface TFT LCD Display with 720×1440 Resolution
Product Specifications
Attribute Value
Type TFT
Display Size 5.45 INCH
Supplier Type OEM/ODM
Backlight Type LED
Resolution 720×1440
Operating Temperature -20~70℃
Display Type TFT
Mounting Type PCB
Screen Size 5.45"
Communication Interface MIPI interface/30 pin
Driver IC HX8394F
Technical Details
LCD Type TFT Transmissive
Number of Dots 720x (RGB) x 1440
Pixel Arrangement RGB Vertical Stripe
Active Area 61.88(H) x 123.77(V)
Viewing Direction ALL
Module Size 64.22(H) × 130.48 (H) *1.62
Back Light White LED
System Interface MIPI interface/30 pin
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 0 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 1 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 2
About Genyu Optical
Established in 2003, Shen Zhen Genyu Optical Co., Ltd specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules. We offer professional customized LCD screens including TN, HTN, STN, FSTN, VA (BTN), COG and COB LCD modules.
Our 30,000 square meter facility employs 1,000 staff including 36 technicians, 16 developers and 60 QC personnel. Our core team includes LCD experts, process engineers, R&D engineers, and backlight specialists.
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 3 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 4 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 5
We design, develop and produce customized LCD, LCM, backlight, and FPC products according to customer requirements. Our annual production capacity includes 100 million LCD screens, 30 million LCMs and 40 million backlights.
Manufacturing Capabilities
Our 6,000 square meter dust-free workshop maintains a 100k cleanliness level. The facility features:
  • Fully enclosed material transfer windows
  • Air shower systems to eliminate contaminants
  • Strict quality control processes
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 6 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 7 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 8
Product Range
We offer comprehensive display solutions including:
1. Custom Segment LCD Displays
We've produced tens of thousands of segment LCDs in TN, STN, HTN, FSTN, and VA/BTN technologies.
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 9 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 10
2. Dot Matrix Graphic LCD Displays
Available in various configurations including 96x16, 128x64, 160x160 up to 320x240 resolutions.
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 11 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 12
3. AMOLED Displays
Mini size OLED displays ranging from 0.42" to 2.4".
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 13 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 14
4. TFT LCD Displays
HD full color TFT displays from 0.91" to 10.1", available in standard sizes or customized solutions.
Applications: Wearable devices, medical equipment, financial terminals, industrial controls, new energy systems, communication devices, and instrumentation.
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 15 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 16
Quality Assurance
All products undergo strict inspection before packaging. COG LCD products are shipped in custom plastic containers for protection during transit.
5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 17 5.45 Inch TFT LCD Display Module 720x1440 MIPI Interface 18
Shipping Information
Standard carton size: 398 × 331 × 430 mm (approx. 17kg)
  • Processing time: 3 working days after payment
  • Express shipping (DHL/UPS/FedEx/TNT): 2-5 working days
  • EMS: 7-10 working days
  • Standard shipping: 10-30 working days
Contact Information
Erica Tan
Tel: 0755-27856531
Mobile: +86-15919421997
WeChat: 15919421997
Skype: live:gyerica_1
Website: www.genyulcm.com
Email: Erica@szgenyu.com
We Offer:
  • Acceptance of small orders
  • High quality at competitive prices
  • Guaranteed production lead times
  • Free technical support
  • Included spares with each order
