| Brand Name: | Genyu |
| Model Number: | GY-TFT028F032 |
| MOQ: | 1000 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 300K pcs/ Month |

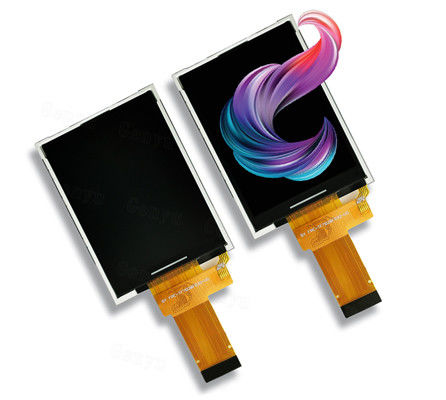

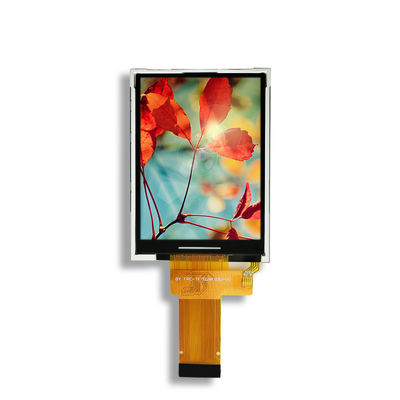

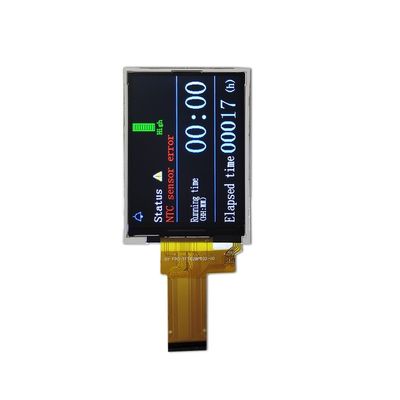

2.8 Inch RGB Color TFT LCD 240x320 Dots Normal White ST7789 30PIN MCU Interface
Key Features:
Screen Size: 2.8 inches measured diagonally, making it a small display suitable for projects where space is limited.
Resolution:
Color Depth:
Backlight:
Touchscreen:
Basic Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Product Name | 2.8 Inch TFT LCD |
| 2 | LCD Type | Normally White |
| 3 | Viewing Angle | 12 O'clock |
| 4 | Resolution |
240x320 dots
|
| 5 | Operating Temperature | -20~+70℃ |
| 6 | Storage Temperature | -30~+80℃ |
| 7 | FPC Connector | 30PIN, socket type |
| 8 | Driver IC(COG) | ST7789V |
| 9 | Interface | 16-bit Parallel |
| 10 | Backlight Type |
4-LED, White, 80mA |
| 11 | Outline Dimension |
50.00(H)* 69.20(V)* 2.45(D) mm |
| 12 | Active Area |
43.2(H)* 57.6(V) mm
|
TFT Screens ( 0.96 inch~10.1 inch ):
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
