| Brand Name: | Genyu |
| Model Number: | GY018A010-A1 |
| MOQ: | 1000 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 300K pcs/ Month |
1.77 Inch TFT LCD Screen 128x160 Dots 12 O'clock 22pin 8-bit Parallel
Key Features:
Size & Resolution:
Color Display:
Basic Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Product Name | 1.77 Inch TFT LCD |
| 2 | LCD Type | TN, Transmissive |
| 3 | Resolution |
128x160 dots
|
| 4 | Operating Temperature | -20~+70℃ |
| 5 | Storage Temperature | -30~+80℃ |
| 6 | FPC Connector | 22PIN, soldering |
| 7 | Driver IC(COG) | ST7735S |
| 8 | Interface | 8-bit Parallel |
| 9 | Backlight Type |
2-LED, White, 40mA |
| 10 | Luminance | 100 cd/m2 |
| 11 | Outline Dimension |
32.9(H)* 42.5(V)* 2.4(D) mm
|
| 12 | Active Area |
28.03(H)* 35.04(V) mm
|
TFT Screens ( 0.96 inch~10.1 inch )
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.

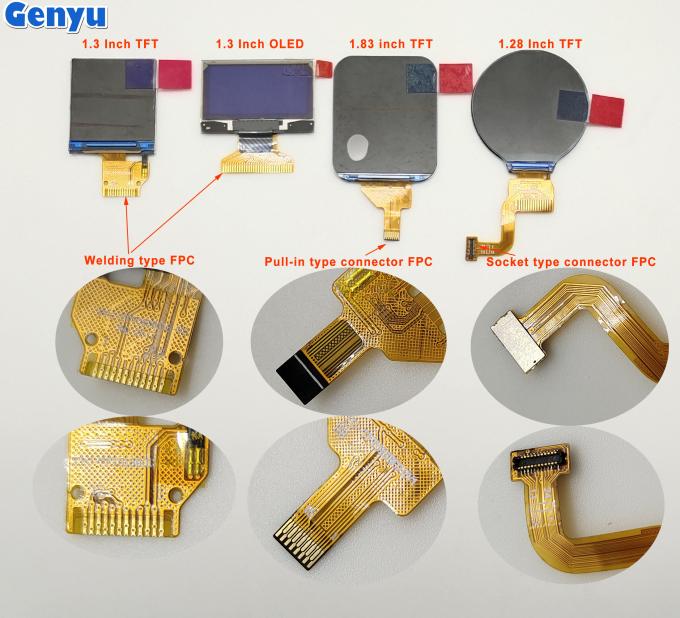

Connection Types:
Example Use Cases:
Entry-Level Feature Phones: Simple mobile phones for communication, often using a 1.77-inch TFT display.
Basic Smartwatches: Wearable devices focused on essential functions like time, notifications, and fitness tracking.
Toys and Gadgets: Interactive toys or educational devices that need a small screen for graphics and text.
Embedded Projects: Perfect for microcontroller projects, such as Arduino or Raspberry Pi-based devices, where small displays are needed for user interaction.
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
