1.06 Inch TN TFT LCD Module 96x160 RGB SPI Display

Brand Name:	Genyu
MOQ:	1000
Price:	$1.15-1.45

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Display Size:

1.06 Inch

Display Type:

Resolution:

96xRGBx160 Dots

Module Size:

16.12(H)*29.76(V)*1.52(D) Mm

Active Area:

13.82(H)*23.04(V) Mm

Pixel Pitch:

48(H)*3*144(V) μm

Pixel Arrangement:

RGB Stripe

Driver IC:

ST7735S

Interface:

4 SPI

Operating Temperature:

-20~+70℃

Storage Temperature:

-30~+80℃

Display Mode:

Normally White

Number Of Colors:

262K

Luminance:

250 Cd/m2

Contrast Ratio:

500

Highlight:

1.06 inch TN TFT LCD module

96x160 RGB SPI display

TFT LCD display panel with warranty

Product Description

1.06 Inch 96 RGBx160 Dots Thin Small TN Screen Display

13 Pins Soldering Type 4SPI TFT LCD Module

Product Specifications

Type	TN
Display Size	1.06 inch, small TFT LCD
Pixels	96 RGBx160 Dots
Module Size	16.12(H)29.76(V)1.52(D) mm
Panel Active Area	13.82(H)*23.04(V) mm
Luminance	250 Cd/m²
Driver IC	ST7735S
Interface	4 SPI
Operating Temperature	-20~+70℃
Connector	COG+FPC, 13pins
Light Source	1 white LED

Detailed Technical Parameters

Item	Specification	Unit
Pixel Pitch	48(H)3144(V)	μm
Pixel Arrangement	RGB stripe
Driver IC	ST7735S
Light Source	1 white LED, 20mA
Panel Type	TN
Resolution	96xRGBx160 Dots	pixel
Display Mode	Normally White
Number of Colors	262K
Contrast Ratio	500
Viewing Angle	3/6/9/12 O'clock, IPS

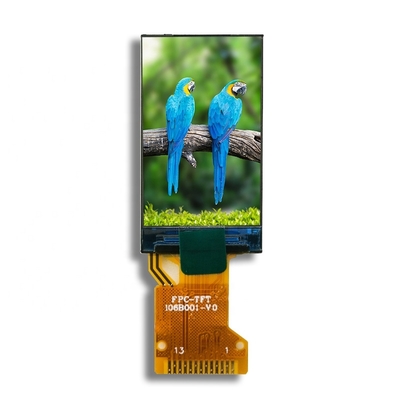

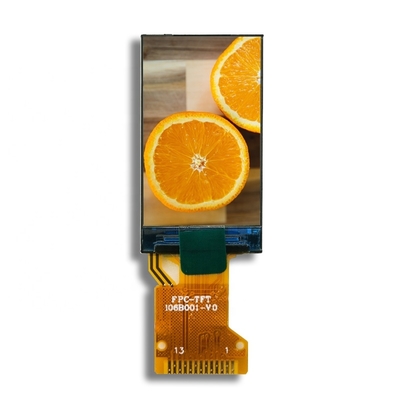

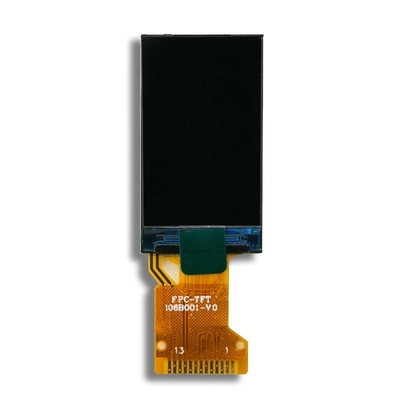

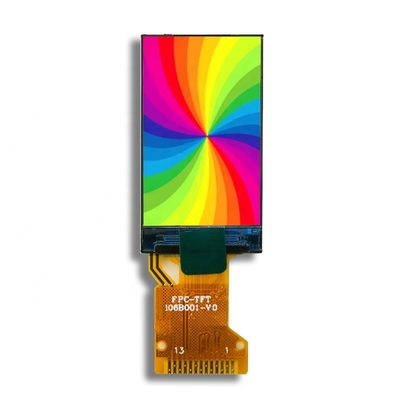

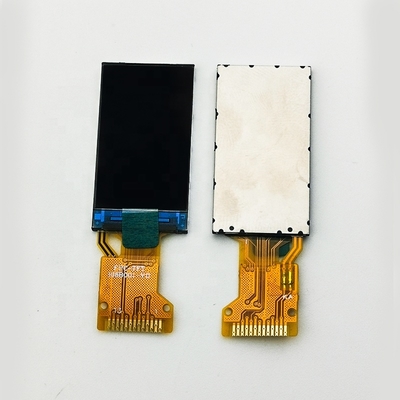

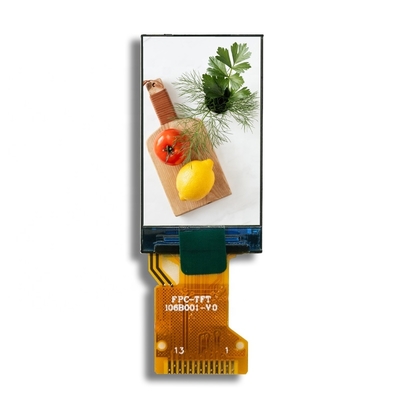

Product Images

Why Choose Our Products?

Own COG, COB, LCD Backlight Production Lines - Competitive Pricing
Solid and Reliable R&D Team - Free Technical Support
Double 100% Test/Inspection Before Shipping - Quality Guaranteed
Fast Lead Time with Economical Shipping Options
Responsive After-Sales Service within 24 Hours
Standard 12-Month Product Warranty

Packaging & Shipping

Payment Methods

T/T, Western Union, PayPal, etc.

Delivery Options

Items ship within 3 working days after payment confirmation:

DHL/UPS/FedEx: 5-7 working days
EMS/POSTNL: 15-20 working days

Packaging

Electrostatic Bag/Anti-static Trays/Plastic Pallet/Air Bubble Film
Sturdy Carton Boxes designed to withstand rough handling

Frequently Asked Questions

Q: Are you a manufacturer or trading company?

A: We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.

Q: Do you offer free samples?

A: For first-time customers, samples are charged with the amount credited toward future mass orders. Regular customers may receive free samples.

Q: What is your production lead time?

A: Sample orders: 2-3 weeks. Mass production: 4-6 weeks.

Q: Can you customize LCD or touch screen products?

A: Yes, we offer comprehensive customization services including LCD display backlight brightness, FPC cable, touch panel color, shape, cover thickness, and other specifications.

Q: What are typical applications for your products?

A: Embedded systems, Intercom systems, Biometrics, HMI, Smart home devices, Robotics, Hand-held PDAs, Aftermarket automotive solutions, and more.
