Genyu 2.0 Inch IPS TFT LCD Display with 240x320 Resolution and ST7789V Driver

Brand Name:	Genyu
MOQ:	10
Price:	$1.70-2.50

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Drive IC:

ST7789V

Interface:

8bit MCU

Display Type:

TFT Lcd Module

Size:

2.0 Inch

Resolution:

240(RGB)x320

Backlight:

3 PCS White LED 60mA

Display Color:

65K/262K

Active Area:

30.6*40.8 Mm

Viewing Direction:

IPS TFT

Power Supply:

3.3 V

Module Size:

36.10*51.80*2.00 Mm

Working Temperature:

-20~70 °C

Storage Temperature:

-30~80 °C

Connection:

COG + FPC

Pin Count:

22 Pin

Highlight:

2.0 Inch TFT LCD Display

IPS TFT LCD Screen

240x320 Resolution TFT LCD Panel

Product Description

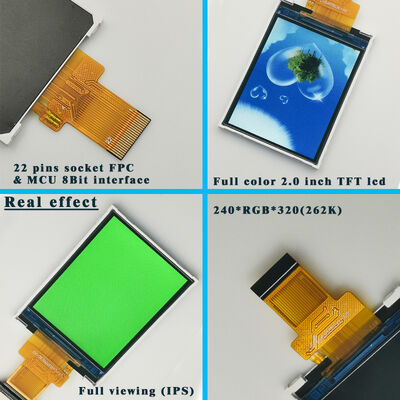

Genyu 2.0 Inch IPS TFT LCD Display

2.0-inch TFT LCD screen with 240×320 resolution, IPS full viewing angle, ST7789V driver, and MCU 8-bit interface.

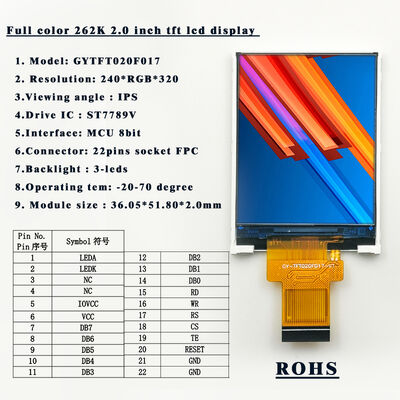

Pin Configuration

Pin	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21-22
Symbol	A	K	NC	NC	IVVCC	VCC	D7	D6	D5	D4	D3	D2	D1	D0	RD	WR	RS	CS	TE	RESET	GND

Key Features

LCD Type: TFT
Interface: 8-bit MCU
Drive IC: ILI9225G
Viewing Angle: IPS Full Viewing Angle
Power Supply: 3.3V
Backlight: 3pcs LED White 60mA

Technical Specifications

Display Method	2.0 inch TFT

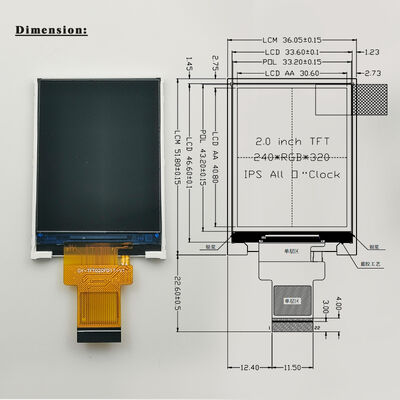

Module Size	36.10 × 51.80 × 2.00 mm
Active Area	30.6 × 40.8 mm
Working Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Connection	COG + FPC

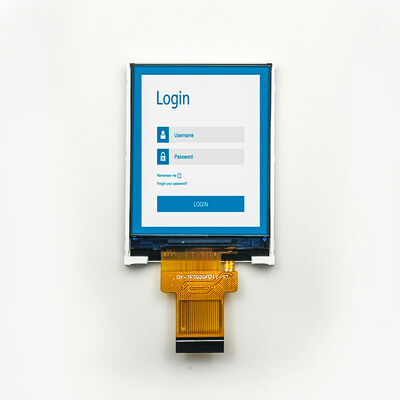

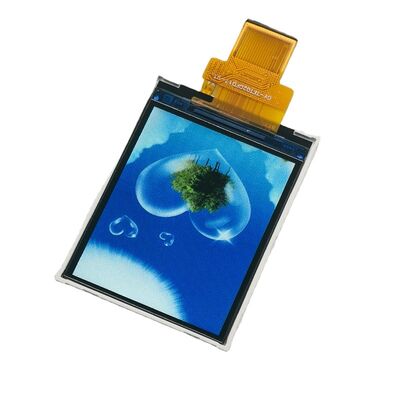

Product Images

Related Products

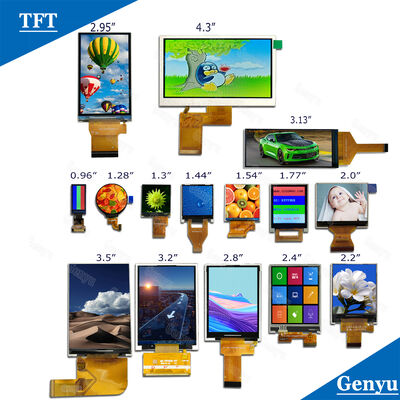

We offer TFT LCD displays in various sizes including 0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 7.0", and 10.1".

Available Interfaces

RGB, SPI, I2C, 8080, 6800, serial port, parallel port - Customization supported

FPC Options

Pull-in Connector, Solder Type - Customization supported
