1.77 inch 128x160 Pixles 12 O'clock SPI Interface TFT LCD Display Screen

1.77 inch 128x160 Pixles 12 O'clock SPI Interface TFT LCD Display Screen

1.77 inch 128x160 Pixles 12 O'clock SPI Interface TFT LCD Display Screen

Brand Name: Genyu
Model Number: GY-TFT018F068
MOQ: 2000 pieces
Price: Negotiable
Payment Terms: T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability: 300K pcs/ Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
RoHS, ISO9001: 2015
Panel Size:
1.77 Inch(diagonal)
LCD Resolution:
128x160 Dots
Driver IC:
ST7735S
FPC Connector:
14PIN
Interface:
SPI
Packaging Details:
Anti-plastic trays and Carton Boxes
Supply Ability:
300K pcs/ Month
Product Description
LCD Parameters
NO. ITEM SPECIFICATIONS
1 Product Name 1.77-inch TFT LCD Display Screen
2 LCD Type TN Transmissive
3 Viewing Angle 12 O'clock
4 Resolution
128x160 dots
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 14 pins, ZIF type
9 Driver IC(COG) ST7735S
10 Interface SPI
11 Backlight Type 2 LEDs, White
12 Power Consumption VF=3.2V,  IF=20*4mA
13 Outline Dimension 34.70(W)* 46.70(H)* 2.25(T) mm
14 Active Area 28.03(W)* 35.04(H) mm

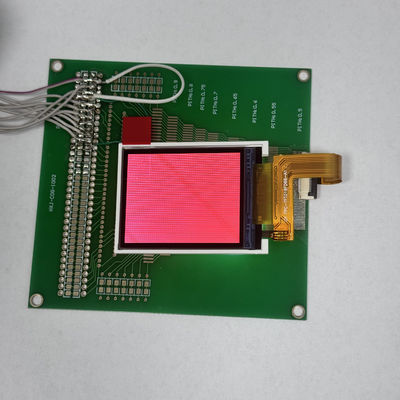

1.77 inch 128x160 Pixles 12 O'clock SPI Interface TFT LCD Display Screen 0





Common TFT LCD Size Ranges:





TFT LCD Size and Resolution Reference Table

Screen Size (inch) Typical Resolutions (pixels) Aspect Ratio
1.3" 240×240 1:1
1.44" 128×128 1:1
1.77" 128×160 4:3
2.0" 176×220, 320×240 5:4, 4:3
2.4" 240×320 (QVGA) 4:3
2.8" 240×320, 320×240 4:3
3.2" 240×320 4:3
3.5" 320×480 (HVGA) 3:2
4.0" 480×800 (WVGA) 5:3
4.3" 480×272, 800×480 16:9, 5:3
5.0" 800×480 (WVGA), 854×480 16:9
7.0" 800×480, 1024×600, 1280×800 16:9

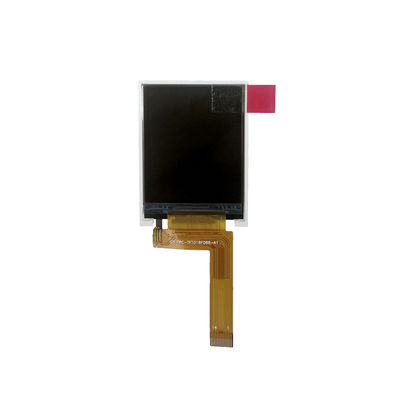

1.77 inch 128x160 Pixles 12 O'clock SPI Interface TFT LCD Display Screen 1





Typical Applications of 1.77-inch TFT Displays:



Wearable Devices Smartwatches, fitness trackers, and medical monitors
Consumer Electronics MP3 players, digital cameras, and handheld games
Home Appliances Smart thermostats, microwave/oven displays, and IR remotes
Industrial Controls Portable meters, handheld diagnostic tools
DIY / Maker Projects Arduino/ESP32/STM32 projects with GUIs
Automotive TPMS (Tire Pressure Monitoring), gear indicators
Medical Devices Pulse oximeters, infusion pumps
Telecom Devices Feature phones, intercom systems

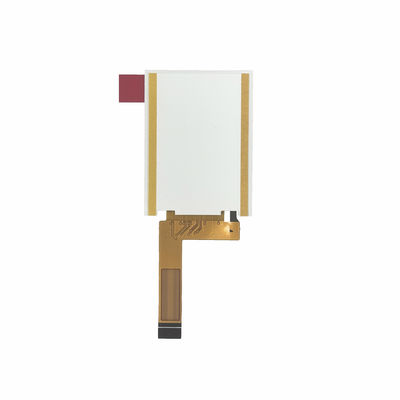

1.77 inch 128x160 Pixles 12 O'clock SPI Interface TFT LCD Display Screen 2





FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong, and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

3. Q: What is the delivery time?
A: For sample orders, 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the TFT LCD, interface, FPC cable, backlight, cover glass, and touch panels can be customized.

5. Q: Can I get a lower price for the TFT LCD?

A: Yes, cheaper price with bigger/larger quantities.



6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.



7. Q: Can you provide technical support?

A: Yes, we will provide detailed specifications and initialization code.
