2.8 inch TFT LCD Display 240x320 Pixles ST7789 Driver 14PIN FPC with SPI Interface

Brand Name:	Genyu
Model Number:	GY-TFT028F377
MOQ:	1000 pieces
Price:	Negotiable
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	300K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001: 2015

Panel Size:

2.8 Inch(diagonal)

LCD Resolution:

240x320 Dots

Driver IC:

ST7789P3

FPC Connector:

14PIN

Interface:

SPI

Packaging Details:

Anti-plastic trays and Carton Boxes

Supply Ability:

300K pcs/ Month

Product Description

LCD Parameters

NO.	ITEM	SPECIFICATIONS
1	Product Name	2.8-inch TFT LCD Display
2	LCD Type	TN Transmissive, QVGA
3	Viewing Angle	6 O'clock
4	Resolution	240x320 dots
6	Operating Temperature	-20~+70℃
7	Storage Temperature	-30~+80℃
8	FPC Connector	14 pins, ZIF type
9	Driver IC(COG)	ST7789P3
10	Interface	SPI
11	Backlight Type	4 LEDs, White
12	Power Consumption	VF=3.0~3.4V, IF=20*4mA
13	Outline Dimension	50.0(W)* 66.4(H)* 2.7(T) mm
14	Active Area	43.2(W)* 57.6(H) mm
15	Touch Panel	Optional

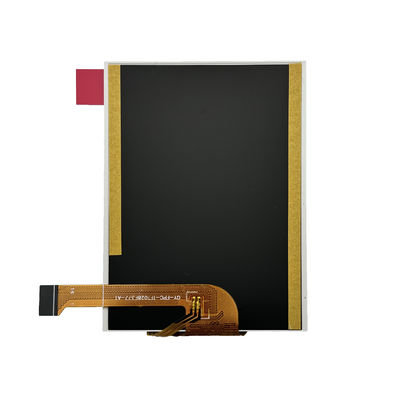

2.8 inch TFT LCD Display 240x320 Pixles ST7789 Driver 14PIN FPC with SPI Interface 0

Common TFT LCD Size Ranges:

Size (inches)	Typical Resolution	Common Use Cases
0.42" – 1.5"	128×64, 128×128, 240×240	Wearables, fitness trackers, and small IoT displays
1.8" – 2.4"	128×160, 240×320 (QVGA)	MP3 players, handheld tools, walkie-talkies
2.8" – 3.5"	240×320, 320×480	Touchscreen controllers, medical devices, and POS terminals
4.3" – 5.0"	480×272, 800×480	Automotive UI, smart home, small HMI panels
5.5" – 7.0"	800×480, 1024×600, 1280×720	Industrial HMIs, multimedia systems, tablets
8.0" – 10.1"	800×600, 1024×768, 1280×800	POS systems, control panels, embedded touch displays

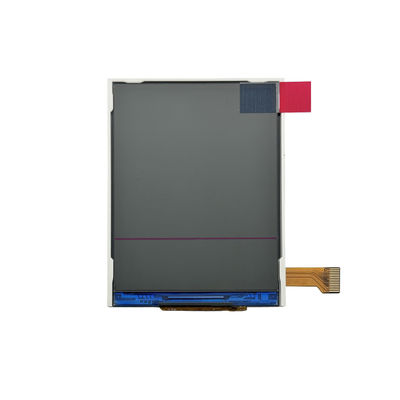

2.8 inch TFT LCD Display 240x320 Pixles ST7789 Driver 14PIN FPC with SPI Interface 1

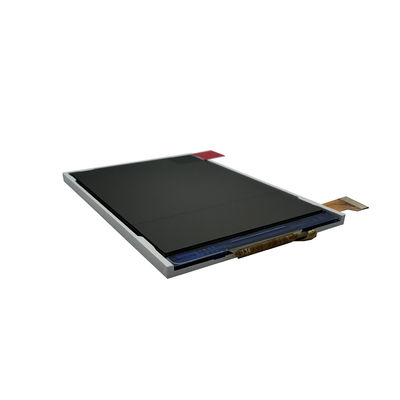

2.8 inch TFT LCD Display 240x320 Pixles ST7789 Driver 14PIN FPC with SPI Interface 2

Key Advantages of TFT LCDs:

1. High Resolution: Supports HD, Full HD, and even 4K resolutions for detailed graphics and text.

2. Full-Color Display: Can display millions of colors (RGB, 24-bit and higher). Ideal for photos, videos, and GUIs.

3. Fast Response Time: Suitable for video playback and interactive UIs.

4. Wide Viewing Angle (with IPS): especially in IPS TFTs, viewing angles can reach up to 178°, maintaining color and clarity.

5. Good Brightness: LED backlights provide strong visibility in various lighting conditions (including sunlight-readable variants).

6. Touch Compatibility: Easily integrates with capacitive or resistive touch panels.

2.8 inch TFT LCD Display 240x320 Pixles ST7789 Driver 14PIN FPC with SPI Interface 3

FAQ

1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

3. Q: What is the delivery time?

A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.

4. Q: Can you support customization?

A: Yes, regarding TFT LCD, interface, FPC cable, Backlight, Cover glass, and Touch Panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
