| Brand Name: | Genyu |
| Model Number: | GY-070HSD006 |
| MOQ: | 100 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T,Paypal,Western Union,MoneyGram,Credit Card |
| Supply Ability: | 300K pcs/ Month |

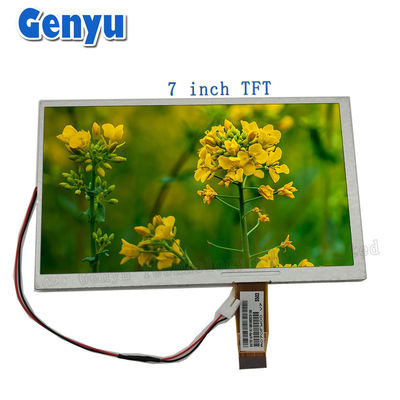

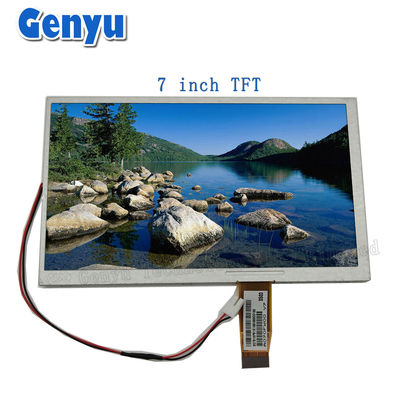

7 Inch TFT (16:9 diagonal) 480(RGB)×234 Dots 26pin FPC Liquid Crystal Display
Key Specifications:
Screen Size: 7 inches (diagonal)
Resolution: Typically 1440 x 234 dot (480 horizontal by 234 vertical pixels) resolution, which provides decent image clarity for most embedded applications and is common for devices like digital signage, portable consoles, and industrial panels.
Aspect Ratio: 16:9, suitable for widescreen applications.
Technology: TFT (Thin Film Transistor) technology with LED backlighting, offers improved color reproduction, better contrast, and lower power consumption than older CCFL-backlit displays.
Touchscreen: The GY-070HSD006 model typically comes without a touchscreen layer by default.
Interface:
RGB Interface (parallel) or LVDS (Low-Voltage Differential Signaling): This is commonly used in embedded systems, industrial applications, and custom boards. You may need a controller or an interface board to connect devices like Raspberry Pi, Arduino, or other microcontrollers.
The RGB interface is common and generally requires the user to connect it with a controller, such as an HDMI to an RGB driver for more convenient use.
Basic Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Product Name | 7.0 Inch TFT display |
| 2 | Display Mode | Normally white |
| 3 | Viewing Angle | 6 O'clock |
| 4 | Pixel arrangement | RGB Vertical stripe |
| 5 | Resolution | 480 RGB(H) x234(V) pixels |
| 6 | Operating Temperature | -20~+70℃ |
| 7 | Storage Temperature | -30~+80℃ |
| 8 | FPC Connector | 26PIN, socket type |
| 9 | FPC PITCH | 0.5 mm |
| 10 | Backlight Consumption | 10.8V, 100mA |
| 11 | Luminance | 200 cd/m2 |
| 12 | Outline Dimension | 162.6(H) x 96.6 (V) mm |
| 13 | Active Area | 154.08(H) x 86.58(V) |
TFT Screens ( 0.42 inch~10.11 inch ):
We mainly develop TFT LCD screens of small-middle sizes, sizes as below.
Advantages:
High Resolution for 7-inch Size: The 1440 x 234 resolution offers a good pixel density for detailed graphics.
Wide Availability: Since this display uses standard interfaces like RGB or LVDS, it’s relatively easy to find drivers or interface boards for common platforms such as Raspberry Pi or Arduino.
Affordable: Given its size and resolution, the HSD070I651 is typically cost-effective compared to other high-end touch-based or OLED displays.
Applications:
Embedded Systems: Ideal for industrial applications, dashboards, custom control panels, or any system that needs a clear, readable display.
Consumer Electronics: Can be used in digital photo frames, portable devices, and other multimedia systems.
Prototyping and DIY Projects: Compatible with microcontrollers (e.g., Arduino) and single-board computers (e.g., Raspberry Pi) for custom projects.
Automotive Systems: Can be used in car infotainment systems, custom dashboards, or other in-vehicle electronics.
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
