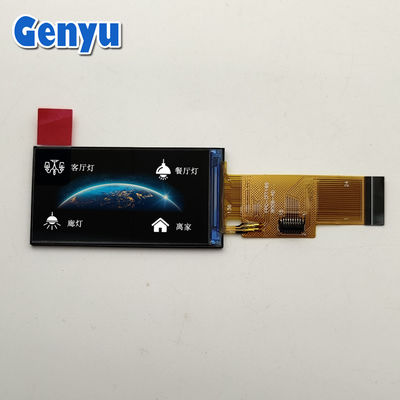

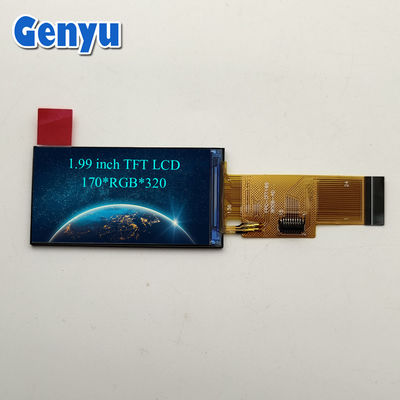

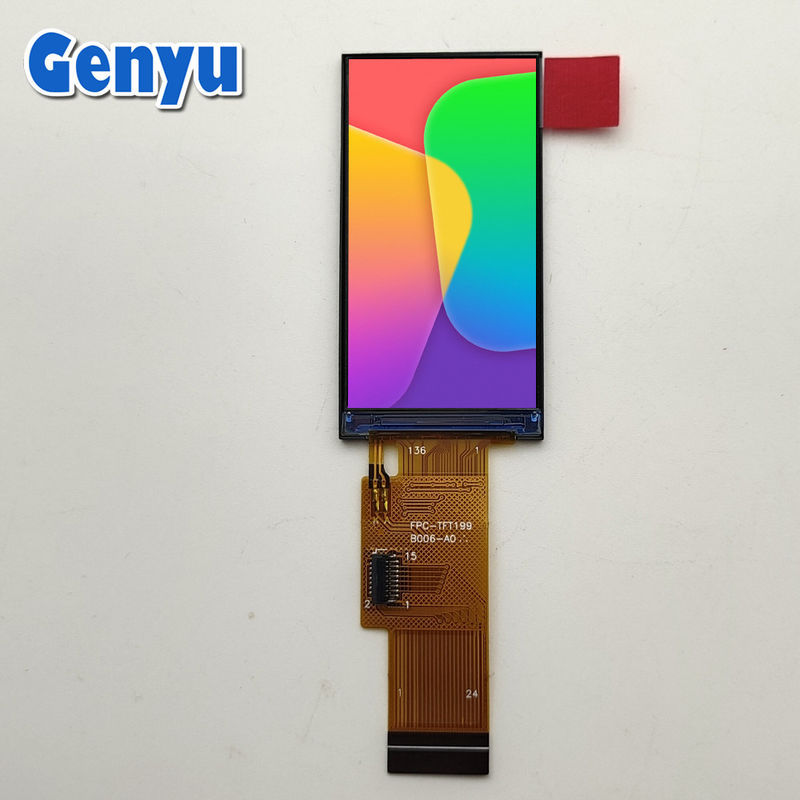

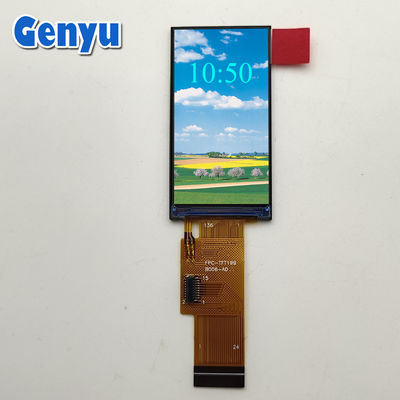

1.99 Inch TFT LCD Screen 170x320 IPS NV3030

1.99 Inch TFT LCD Screen 170x320 IPS NV3030

Brand Name:	Genyu
Model Number:	GY-TFT199B006
MOQ:	1000 pieces
Price:	Negotiable
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	300K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001: 2015

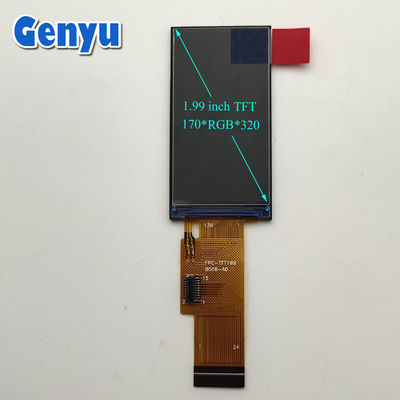

Panel Size:

1.99 Inch(diagonal)

LCD Resolution:

170x320 Dots

Viewing Angle:

All

Driver IC:

NV3030B

Interface:

4-wire SPI

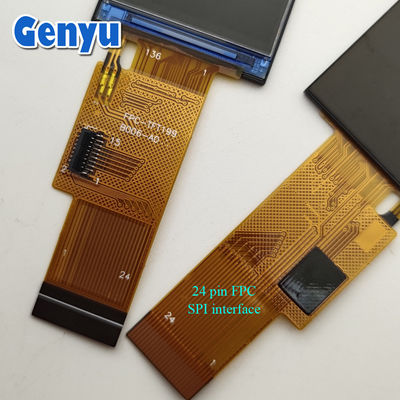

FPC:

24pin

Packaging Details:

Anti-plastic trays and Carton Boxes

Supply Ability:

300K pcs/ Month

Highlight:

1.99 Inch TFT LCD Screen

1.99 Inch TFT LCD Panel

170x320 TFT LCD Screen

Product Description

1.99 Inch TFT LCD Screen Normal Black 170x320 Dots IPS NV3030 24pin FPC 4SPI

Key Features:

Display Technology:
- The TFT (Thin-Film Transistor) technology improves upon older LCD technologies by offering better color reproduction, faster refresh rates, and better overall visual quality.
- This makes TFT LCDs suitable for dynamic displays that require clear and crisp visuals.
Interface:
- SPI (Serial Peripheral Interface) is the most common communication protocol for TFT LCDs of this size, making it suitable for use with microcontrollers such as Arduino, ESP32, or Raspberry Pi.
- Parallel interfaces are less common for such small displays, but can still be used for faster data transmission when required.
Power Consumption:
- Power consumption is relatively moderate, as TFT LCDs require more power than OLED screens due to the backlight. However, the display's resolution and brightness can affect power usage.
- Some screens may offer power-saving features like adjustable backlight brightness to reduce power draw.

Basic Parameters:

NO.	ITEM	SPECIFICATIONS
1	Product Name	1.99 Inch TFT LCD
2	LCD Type	IPS
3	Resolution	170x320 dots
4	Operating Temperature	-20~+70℃
5	Storage Temperature	-30~+80℃
6	FPC Connector	24PIN, plug-in type
7	Driver IC(COG)	NV3030B
8	Interface	4SPI
9	Backlight Type	4-LED, White
10	Backlight Consumption	IF=80mA, VF=3.2V
11	Outline Dimension	25.80(H)* 49.72(V)* 1.40(D) mm
12	Active Area	22.69(H)* 42.72(V) mm

1.99 Inch TFT LCD Screen 170x320 IPS NV3030 0

TFT Screens ( 0.96 inch~10.1 inch )

We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.

Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.

Please let me know your requirements, we will suggest some models for your optional.

1.99 Inch TFT LCD Screen 170x320 IPS NV3030 1

Notices: TFT vs. OLED Displays

Features	TFT LCD	OLED
Technology	Requires backlight (LCD-based)	Self-emissive (each pixel lights up)
Brightness	Bright but limited contrast	Excellent contrast, true blacks
Color	Good, but less vibrant than OLED	Vibrant, high color accuracy
Viewing Angles	Narrower angles, color degradation	Excellent viewing angles, consistent colors
Power Efficiency	Less efficient, constant backlight	More efficient (dark pixels off)
Thickness	Thicker due to backlight	Thin and flexible
Lifespan	Long lifespan, no burn-in issues	Potential for burn-in (image retention)
Cost	Cheaper	More expensive
Common Uses	Budget devices, small electronics	High-end smartphones, TVs, wearables

Which One to Choose?

TFT displays are generally suitable for budget-friendly applications where high power efficiency, vivid colors, and high contrast are not critical. They are also ideal for applications where the display is static for shorter periods.
OLED displays are perfect for premium products where image quality, color vibrancy, and power efficiency are crucial. OLEDs are particularly useful in wearables, smartphones, high-end monitors, and TVs, where rich color and deep blacks enhance the user experience.
