| Brand Name: | Genyu |
| Model Number: | GY8058A |
| MOQ: | 800 pieces |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 400K pcs/ Month |

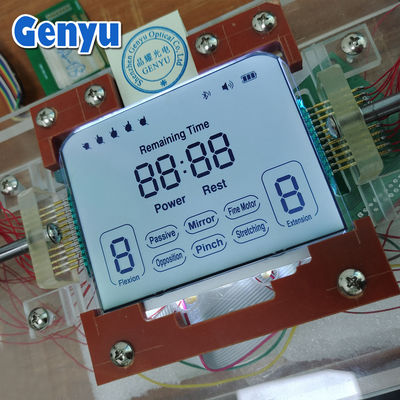

HTN (High Twisted Nematic) Segment LCD is a specialized type of segment-based LCD display that uses High Twisted Nematic (HTN) technology for improved performance over basic TN (Twisted Nematic) displays.
HTN technology builds upon TN by increasing the twist angle of the liquid crystal molecules (approximately 110°–120°), which enhances viewing angles and contrast.
Segment LCDs use predefined shapes or "segments" to display static information, such as numbers, letters, or icons.
Improved Viewing Angles: Compared to TN, HTN provides better visibility from different angles, though it’s still limited compared to advanced technologies.
Enhanced Contrast:
Higher contrast than standard TN displays makes it easier to read the display in various lighting conditions.Low Power Consumption: Maintains the energy efficiency of TN displays, making it ideal for battery-powered devices.
Static or Semi-Static Displays: Designed for applications where content doesn’t change rapidly (e.g., digital clocks, thermometers).
Cost-Effective Manufacturing: Similar to TN in terms of production simplicity and cost, it is an affordable upgrade.
Passive Matrix Addressing: Operates on a simple passive matrix design, reducing complexity and cost.
Detailed Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Model Number | GY8058A |
| 2 | LCD Type | HTN Positive, Transflective |
| 3 | Viewing Angle | 6 O'clock |
| 4 | Drive Method |
1/4 Duty, 1/3 Bias, 5.0V
|
| 5 | Operating Temperature | -10~+60℃ |
| 6 | Storage Temperature | -20~+70℃ |
| 7 | Connector | PIN, 23 numbers |
| 8 | Backlight | Yes, White Color |
| 9 | LCD Application | Smart Home |
| 9 | LCD Outline Dimension |
101(W)* 76(H)* 2.8(T) mm |
| 10 | View Area | 93(W)* 72(H) mm |
| Feature | TN Segment LCD | HTN Segment LCD |
|---|---|---|
| Viewing Angles | Narrow | Wider |
| Contrast | Low | Moderate |
| Power Efficiency | High | High |
| Cost | Lower | Slightly Higher |
| Applications | Basic devices | Upgraded displays with better readability |
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: How long can I get the custom samples?
A: Different product types will take different times. Usually, it will take about 25-30 days.
4. Q: Can I get free samples?
A: Yes, we would like to provide 3-10 pcs of free samples after tooling.
5. Q: What is the minimum order quantity?
A: MOQ depends on LCD sizes.
6. Q: How long is it for mass production?
A: Usually 35-40 days, it depends on your part number.
7. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
