| Brand Name: | Genyu |
| Model Number: | GY-H67687G |
| MOQ: | 4200 pieces |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 500K pcs/ Month |

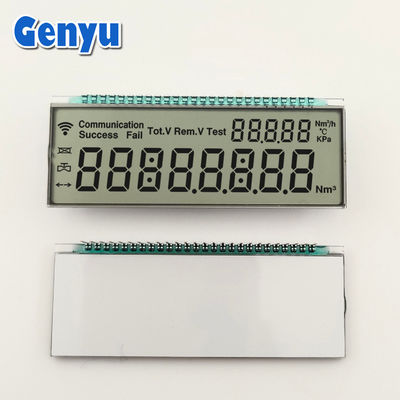

A gas meter LCD is a digital screen on a gas meter that shows various readings and information. These displays replace traditional analog dials, making it easier to read and understand gas consumption.
Detailed Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Model Number | GY-H67687G |
| 2 | LCD Type | TN positive, reflective |
| 3 | Viewing Angle | 6 O'clock |
| 4 | Drive Method |
1/6 Duty, 1/3 Bias, 3.3V
|
| 5 | Operating Temperature | -20~+70℃ |
| 6 | Storage Temperature | -30~+80℃ |

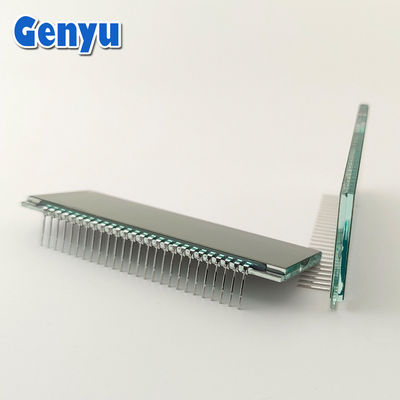

| 7 | Connector | PIN, 26 numbers |
| 8 | Backlight | No |
| 9 | LCD Outline Dimension |
65(W)* 25(H)* 2.8(T) mm |
| 10 | View Area | 62(W)* 20(H) mm |
Notices: The differences between TN, HTN, STN, FSTN, and VA LCD types?
TN (Twisted Nematic) LCD screens, the twisted orientation of the liquid crystal molecules is deflected by 90°. The display content is relatively simple, and the main features are relatively black fonts, high contrast, low power consumption, and driving voltage, but a small viewing angle. Common applications are clock products, calculators, etc.
HTN (High Twisted Nematic) LCD screens, nematic liquid crystal molecules are sandwiched between two transparent glasses, and the orientation of the liquid crystal molecules is deflected 100~140 degrees between the two layers of glass. The main features are similar to TN, but the viewing angle is wider than TN. Common applications are indoor furniture, medical equipment, etc.
STN (Super Twisted Nematic) LCD screens, the liquid crystal rotates 180~270 degrees in the LCD screen, the viewing angle is better, and there are generally gray films, yellow-green films, and blue films. Widely used in high-channel COB/COG, such as communication equipment, etc.
FSTN (Film+STN) LCD screen, to improve the background color problem of ordinary STN, a compensation film is added to the polarizer to eliminate dispersion and achieve black and white display. Common applications are industrial instruments, etc.
VA (Vertical Alignment) LCD screens, black background, and color patterns, high contrast, can achieve a multi-color silk screen display effect, and have certain requirements for driving voltage. It is mostly used for segment COB and low-channel drive products.
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: How long can I get the custom samples?
A: Different product types will take different times. Usually, it will take about 25-30 days.
4. Q: Can I get free samples?
A: Yes, we would like to provide 5-10 pcs of free samples after tooling.
5. Q: What is the minimum order quantity?
A: MOQ depends on LCD sizes.
6. Q: How long is it for mass production?
A: Usually 35-38 days.
7. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
