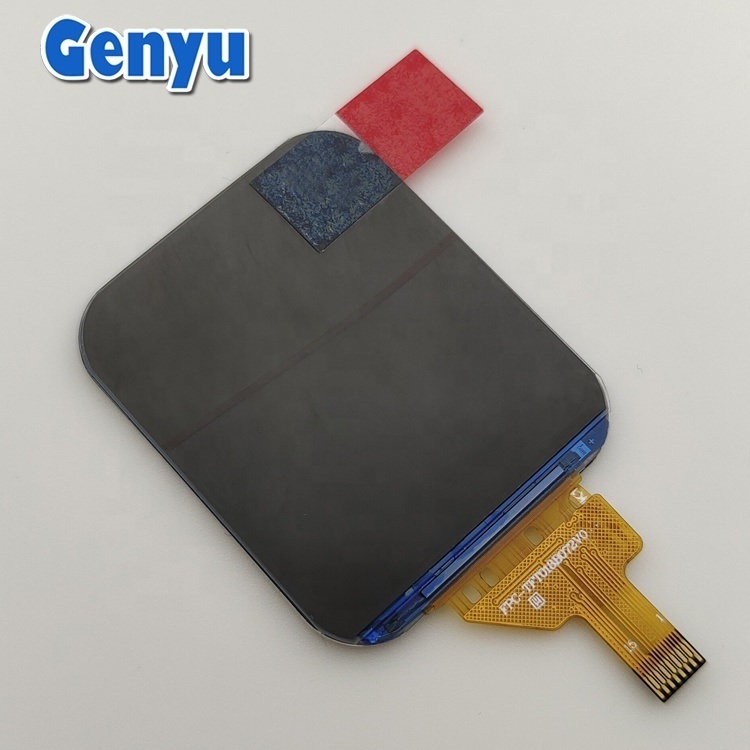

Customized 2.4 Inch IPS TFT LCD Screen - NV3030 Driver 18pin FPC

Product Overview

The Customized 2.4 Inch IPS TFT LCD Screen with NV3030B driver IC and 18-pin soldering FPC is a display solution built for embedded product manufacturers who need a reliable, certified display component in a compact form factor. The NV3030B driver IC is a well-established controller IC for small-to-medium TFT LCD panels, providing the timing control, voltage generation, and data interface handling required to drive the 240 by 320 pixel array. The 18-pin FPC (Flexible Printed Circuit) with soldered terminations provides a mechanically robust and electrically reliable connection between the display module and the product mainboard. The soldering connection is preferred in high-volume manufacturing because it eliminates the mechanical connector failure modes that affect zero-insertion-force (ZIF) socket connections over product lifetime. The RoHS and ISO9001:2015 certifications on this display provide the material compliance and quality management system documentation that embedded product manufacturers need for regulatory submission and supply chain qualification.

Technical Specifications

Key Benefits

· NV3030B driver IC for proven, reliable display control -- the NV3030B is an established driver IC in the small TFT LCD market, with well-documented driver libraries and reference code available for major microcontroller platforms

· 18-pin soldering FPC for secure long-term electrical connection -- soldered FPC terminations eliminate the connector failure modes that can affect ZIF socket connections over product lifetime in high-volume applications

· RoHS and ISO9001:2015 certifications for supply chain qualification -- the environmental and quality certifications provide the documentation package needed for regulatory compliance and major customer supply chain audits

· Customization capability for project-specific FPC geometry -- the customized FPC option allows the display to be adapted to the specific mainboard layout and mechanical enclosure constraints of each product

· 300,000 pcs per month supply capacity for high-volume manufacturing -- the manufacturing capacity supports embedded product volumes from 1,000 to 100,000+ units per month without supply constraints

Applications

Consumer electronics manufacturers with high-volume embedded display requirements, industrial equipment OEM manufacturers, smart home appliance brands, medical device companies, and any product manufacturer with a 2.4-inch display requirement in a consumer, commercial, or industrial product.

Why It Works

The NV3030B driver IC is a significant factor in the design-in simplicity of this display. The NV3030 series has been in the market for many years, which means that driver libraries, initialization code, and display drivers are widely available for virtually every major microcontroller platform -- Arduino, STM32, ESP32, PIC, and many others. This availability of existing software resources reduces the embedded development time required to bring a display-enabled product to market, which is often more valuable than the display specifications themselves. The 18-pin soldering FPC is a deliberate design choice that prioritizes long-term manufacturing reliability over ease of assembly. In high-volume manufacturing, zero-insertion-force (ZIF) socket connectors are a known failure risk: the connector can loosen over repeated thermal cycles, the contacts can oxidize, and the connector housing can crack under mechanical stress. A soldered FPC connection eliminates all of these failure modes entirely -- once soldered, the connection is permanent for the life of the product. The ISO9001:2015 certification is specifically important for industrial and medical device manufacturers who require their component suppliers to maintain documented quality management systems as part of the manufacturer's own quality management infrastructure.
