2.8 Inch TFT IPS LCD Display Device Meter Screen FPC Solder or Connector for FPC Connection

Brand Name:	Genyu
MOQ:	10 pieces
Price:	$4/pieces 10-999 pieces

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Type:

TFT

Display Size:

2.8 Inch Color Lcd Display

Supplier Type:

Original Factory

Color:

Full Color RGB Display

Resolution:

High Resolution TFT Screen

Application:

Smart Appliances, Medical Instruments, Device Meter

Size:

2.8 Inch Color Lcd Display

Product Name:

Tft Lcd

Driver IC:

ST7789 / ILI9341 LCD Module

Viewing Angle:

Free View / 12:00 TFT Display

Backlight:

Low Power Consumption

Interface:

Parallel Port RGB SPI TFT LCD

FPC Connection:

Solder Or Connector

Highlight:

IPS TFT LCD Display

FPC Connector IPS TFT LCD Display

2.8 Inch IPS TFT LCD Display

Product Description

Product Description

2.8 inch TFT LCD display

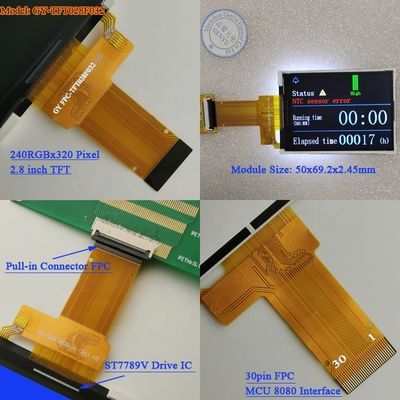

GY- TFT028F032 is 2.8 inch TFT LCD Display,

- 50.0*69.2*2.45mm Module Size
- 43.2*57.6mm Panel Active Area
- 12:00 viewing angle panel,
- ST7789V Control IC,
- 240*320 Resolution,
- MCU 8080 Interface,

- 250 cd/m2 Luminance,
- 500 Contrast Ratio,
- 4 white LEDs,
- -20°C~+70°COperating Temperature
- 30 pin Pull-in type connector FPC

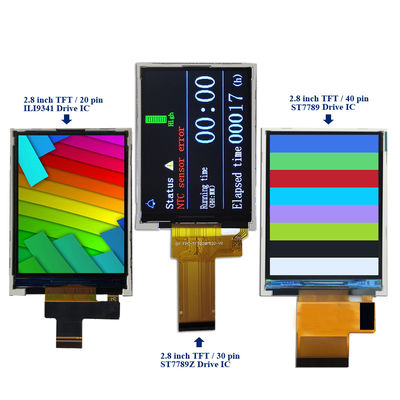

TFT 2.8 inch TFT LCD display

TFT028F085 is 2.8inch (diagonal) TFT LCD Display, High Resolution & Wide View

- 50.0*69.2*2.45mm Module Size
- 43.2*57.6mm Panel Active Area

- 12:00 viewing angle panel,

- ST7789 Control IC,

- 240*320 Resolution,

- RGB Interface,

- 300 cd/m2 Luminance,

- 500 Contrast Ratio,

- 4 white LEDs,

- -20°C~+70°COperating Temperature

- 40 pin Pull-in type connector FPC

2.4 inch TFT LCD Display SPI

GY28004A0-00 is 2.8 inch TFT LCD Display,

- 50.0*69.2*2.45mm Module Size
- 43.2*57.6mm Panel Active Area
- IPS Full viewing angle panel,
- ILI9341V Control IC,
- 240*320 Resolution,
- SPI Interface,
- 300 cd/m2 Luminance,
- 250 Contrast Ratio,
- 4 white LEDs,
- -20°C~+70°COperating Temperature

- 18 pin welding Type FPC

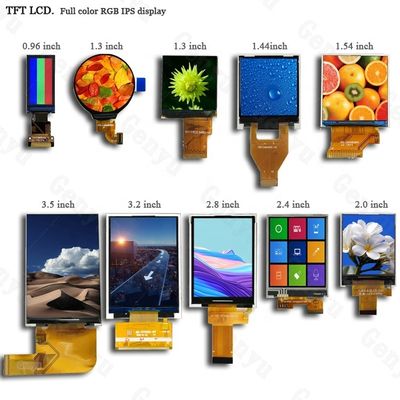

TFT LCD size	0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5",4.3",7.0"
View Angle	IPS Full view angle, 12:00, 6:00
Interface	RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization
FPC	Pull-in Connector, Solder Type, Support customization
Please click on the picture to see more TFT		click on the picture to see more TFT

0.96 inch TFT display

80*RGB*160

1.06 inch TFT Display

96*RGB*160

1.28 inch TFT display

240*RGB*240

1.44 inch TFT LCD

128*RGB*128

1.54 inch TFT Display

240*RGB*240

1.77 inch TFT display

128*RGB*160

2.2 inch TFT screen

176*RGB*220

2.4 inch TFT with RTP

240*RGB*320

2.8 inch TFT display

240*RGB*320

2.95 inch TFT LCD

480*RGB*854

3.13 inch TFT LCD

379*RGB*960

3.2 inch TFT Screen

240*RGB*320

4.3 inch TFT with CTP

480*RGB*272

4.3 inch TFT

480*RGB*272

7.0 inch TFT LCD

800*RGB*480

Company: Shen Zhen Genyu Optical Co.,Ltd.

Genyu has tens of thousands of LCD for your reference. TFT, tft lcd display Please share your requirements with Erica Tan, Erica will recommend similar LCDs for you according to your requirements, or we will customize LCDs according to customer's requirements. For more datasheet and samples , please click here,

1. PMOLED display

Genyu has mini size OLED Display, 0.42" 0.49" 0.66" 0.78" 0.87" 0.91" 0.96" 1.3" 1.54" 2.08" 2.3" 2.4" OLED Display

Ssd1315 Ssd1306 drive IC i2c oled spi oled display

2. Custom Segment LCD display

Genyu has produced tens of thousands of segment LCDs. Tn Stn Htn Fstn VA black LCD Display, Please tell us your requirements for LCD, we will recommend similar LCD for you, or design LCD according to customer's requirements. Genyu has TN STN HTN FSTN VA/BTN LCD display,

3. 128x64 Dot Matrix Graphic LCD display

Genyu has 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80,
128x128,160x160....320x240 dot matrix LCD display.

4. TFT LCD Module

olor lcd display, Round tft display, TFT display, LCD Module, Round Display, 2.4inch tft lcd, 1.28" display, 4.3 inch tft lcd,
Small 0.96 / 1.3 / 1.54 / 2.0 / 2.4 / 3.2 / 3.5 / 4.3 inch tft lcd Round tft display RGB lcd touch screen Color lcd display.
Genyu has tens of thousands of LCDs for your reference. TFT, tft lcd display

4. TFT LCD display

Genyu has HD Full color TFT LCD Display, 0.91" 1.0" 1.28" 1.3" 1.44" 1.54" 1.77" 2.0" 2.2" 2.4" 2.8" 2.95" 3.13" 3.2" 3.5" 4.3" 7" 10.1" TFT LCD Display

-Standard size -Standing stock -Samples available

Wide range of applications

> Wearable Device

> Medical

> Financia

> Industrial

> New Enery

> Communication

> Instrumentation

Color lcd display, Round tft display, TFT display, LCD Module, Round Display, 2.4inch tft lcd, 1.28" display, 4.3 inch tft lcd,
Small 0.96 / 1.3 / 1.54 / 2.0 / 2.4 / 3.2 / 3.5 / 4.3 inch tft lcd Round tft display RGB lcd touch screen Color lcd displayTFT LCD Module produced by Genyu is very popular in the market. We have 0.96" 1.0" 1.3" 1.44" 1.54" 1.77" 2.0" 2.2" 2.4" 2.8" 3.13" 3.2" 3.5" 4.3" 5.0"7.0" 8.0" 10.1 inch TFT LCD Module,

Company Profile

Air shower

Nearly 6000 square meters of dust-free workshop, with a cleanliness level of 100k. The entrance and exit of workshop materials are equipped with totally closed transfer windows, and the entrance of workshop is equipped with air shower, which can effectively and rapidly remove dust, hair, hair chips and other sundries attached to clothes, and reduce the pollution problems caused by personnel entering and leaving the workshop.

We can design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customers' requirements, At present, the annual production capacity of the factory has reached 100 million LCD screens, 30 million LCMS and 40 million B / L.
