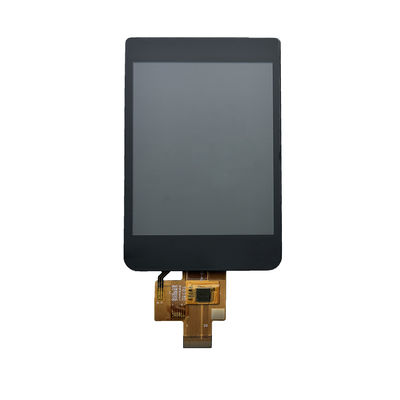

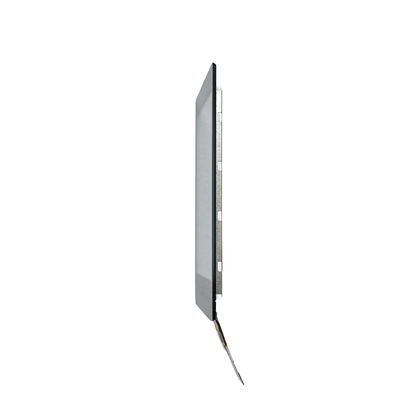

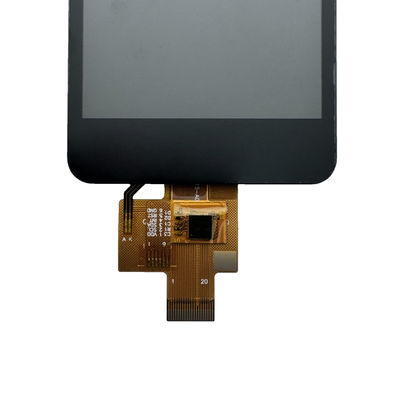

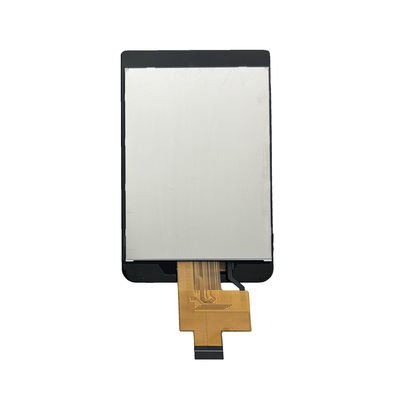

3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display with Capacitive Touch

Brand Name:	Genyu
Model Number:	GY-TFT336BT015
MOQ:	1000 pieces
Price:	Negotiable
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	300K pcs/ Month

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001: 2015

LCD Type:

TFT

Panel Size:

3.5 Inch(diagonal)

Resolution:

240*320 Pixels

LCD Driver IC:

ST7789T3

TP Driver IC:

FT6347

LCD Interface:

SPI

Structure:

G+F

Packaging Details:

Anti-plastic trays and Carton Boxes

Supply Ability:

300K pcs/ Month

Product Description

LCD Parameters

NO.	ITEM	SPECIFICATIONS
1	Product Name	3.5-inch TFT LCD Display with capacitive touch
2	LCD Type	Transmissive, IPS
3	Resolution	240x320 dots
4	Structure	G+F
5	LCD Operating Temperature	-20~+70℃
6	FPC Connector	20 pins, ZIF type, 0.5 mm
7	Interface	SPI(LCD)+IIC(Touch screen)
8	Backlight Type	8 LEDs, White, 160mA
9	Outline Dimension	57.96(W)* 93.00(H)* 3.65(T) mm
10	LCD Active Area	51.27(W)* 68.36(H) mm
11	Driver IC	ST77989T3 + FT6347

3.5 Inch 240*320 Dots ST7789 Driver 20PIN TFT LCD Display with Capacitive Touch 0

Common Applications:

Popular Interfaces & Compatibility:

MCUs: Arduino Mega, STM32, ESP32, Raspberry Pi
Libraries: Adafruit_GFX, TFT_eSPI, uGFX, LittlevGL (LVGL)
Interfaces:
- SPI: Slower but uses fewer pins; commonly used in Arduino
- 8-bit/16-bit Parallel: Faster, used in STM32/ARM-based boards
- Capacitive Touch: Uses I²C interface usually
- Resistive Touch: Uses ADC channels or I²C via XPT2046
