VA LCD Display White Segments Black Background 5V FPC Connect

Brand Name:	Genyu
Model Number:	GY8992A
MOQ:	5400 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	500K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

VA, Nagative

Drive Mode:

1/8 Duty, 1/4 Bias

Operating Temperature:

-10~+60℃

Voltage:

5.0V

Connector:

FPC

Packaging Details:

Foam & Cartons

Supply Ability:

500K pcs/ Month

Product Description

VA LCD Display White Segments Black Background 5V FPC Connect

Key Characteristics of VA LCD Segment Displays:

1. VA (Vertical Alignment) Technology: Offers deep black background and high contrast (up to 1000:1 or more). Pixels align vertically when off, blocking light completely, making segments not in use appear very dark.

2. Segment Display: Predefined shapes (segments) form numbers, letters, or symbols. These are not pixel-addressable like in graphic displays.

3. Viewing Angle: Excellent viewing angles (up to 160°), superior to TN LCDs.

4. Contrast: Much higher than TN or STN segment displays. Ideal for visually demanding applications.

5. Power Consumption: Very low, suitable for battery-operated devices.

6. Backlight: Often paired with LED backlights; black background with white/colored segments can be very striking.

7. Response Time: Fast enough for typical applications like counters, meters, etc.

Detailed Parameters:

Model number	GY8992A	LCD type	Segmented Display
Module size	53.71(W)* 23.13(H)* 2.80(T) mm	Display mode	VA, Negative
LCD viewing area	51.71(W)* 19.13(H) mm	Polarizer type	Transmissive
Operating Temperature	-10~+60℃	LED backlight	White
Drive method	1/8 Duty, 1/4 Bias	Working voltage	5.0V
Viewing angle	6 O'clock	Connection way	FPC, 34 numbers

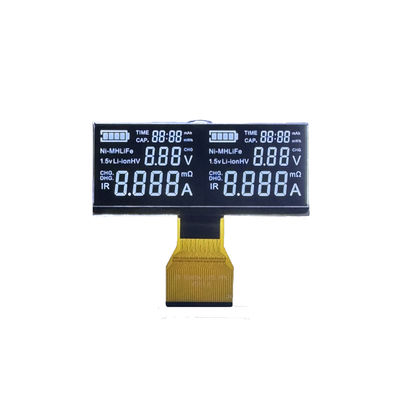

VA LCD Display White Segments Black Background 5V FPC Connect 0

Common Applications:

Digital thermometers
Smart home panels
Electric meters
Automotive dashboards
Industrial control panels
Kitchen appliances

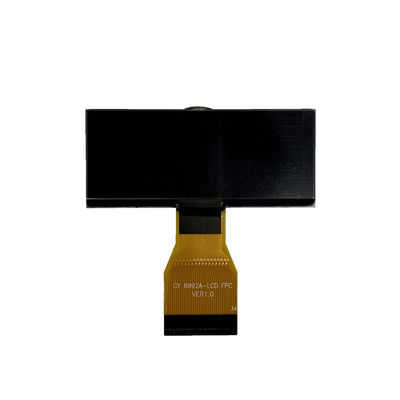

VA LCD Display White Segments Black Background 5V FPC Connect 1

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 30-35 days.

4. Q: Can I get free samples?

A: We would like to provide 3-10 pieces of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ mainly depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-45 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
