1.32 Inch OLED Display White 128x96 Resolution 25pin Soldering FPC Several Interface

Brand Name:	Genyu
Model Number:	GY12896-H25
MOQ:	100 pieces
Price:	Negotiable
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	150K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001: 2015

Panel Size:

1.32 Inch (diagonal)

Resolution:

128*96 Dots

Color:

White

Driver IC:

SSD1327

Interface:

4SPI, I2C, 8-bit 6800/8080 Parallel

FPC:

25 PIN

PCB:

Optional

Packaging Details:

Anti-plastic trays and Carton Boxes

Supply Ability:

150K pcs/ Month

Product Description

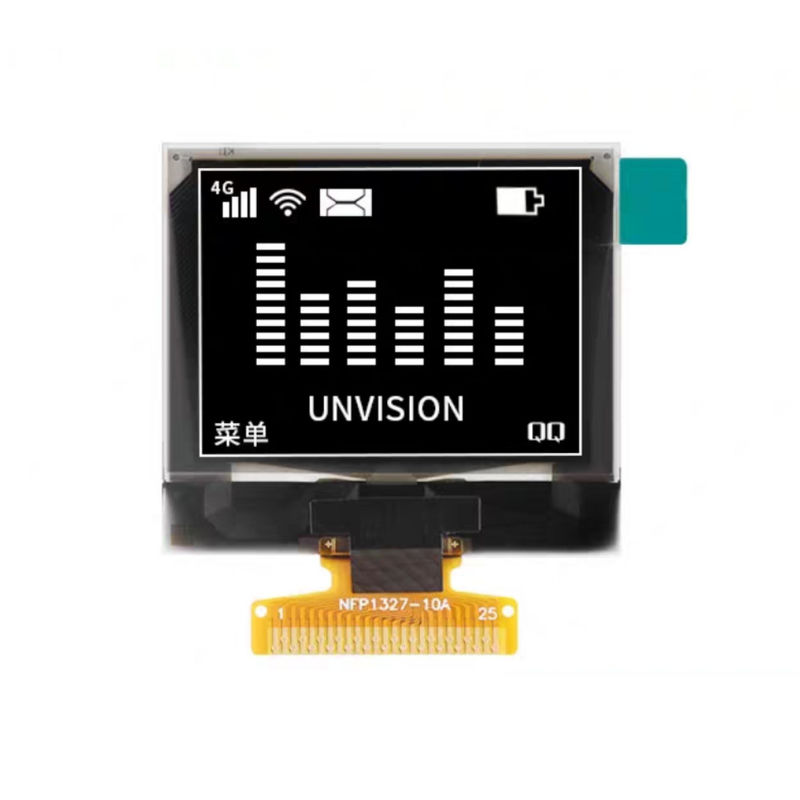

1.32 Inch OLED Display White 128x96 Resolution 25pin Soldering FPC Several Interface

A 1.32-inch OLED display is a compact, high-contrast screen often used in wearables, IoT devices, meters, and portable electronics. Unlike LCDs, OLEDs emit light, so no backlight is needed, resulting in deeper blacks and lower power consumption for dark UIs.

Advantages of OLED over LCD:

True black background (each pixel turns off completely)
Vivid colors and high contrast (especially in dark environments)
Low power usage when displaying mostly black or static images
Wide viewing angles with no color distortion
Fast response time (good for animation, transitions)

1.32 Inch OLED Display White 128x96 Resolution 25pin Soldering FPC Several Interface 0

Detailed Specifications:

1	Brand Name	Genyu
2	Model Number	GY12896-H25
3	Display Mode	OLED(Organic Light Emitting Diode)
4	Color	White
5	Size	1.32 inch
6	Dot Matrix	128*96 Pixels
7	Module Size	32.50(W)29.20(H)1.61(D) mm
8	View Area	27.86(W)*21.14(H) mm
9	Active Area	26.86(W)*20.14(H) mm
10	Dot Size	0.21(W)*0.21(H) mm
11	Dot Pitch	0.23(W)*0.23(H) mm
12	Drive IC	SSD1327
13	Connector	COG+FPC
14	Number of FPC	25PIN, soldering
15	Interface	SPI/ I2C/ Parallel
16	Operating Temperature	-40~+70℃
17	RoHS Compliant	Yes

1.32 Inch OLED Display White 128x96 Resolution 25pin Soldering FPC Several Interface 1

Common PMOLED Display Size Range:

Size (inches)	Typical Resolution	Display Type	Notes / Use Cases
0.42" – 0.49"	72×40, 64×32	Monochrome	Earbuds, small wearables, headset status indicators
0.66" – 0.69"	64×48, 96×16	Monochrome	Smartwatches, small meters
0.91" – 0.96"	128×32, 128×64	Monochrome	Arduino/RPi projects, compact UIs
1.1" – 1.3"	128×64, 128×96	Mono or RGB	Wearables, IoT devices, medical screens
1.5" – 1.6"	128×128, 160×80	Color (RGB)	Small GUI devices, audio players
1.7" – 2.0"	160×128, 256×64	Color (limited)	High-end wearables, custom controllers
2.42" – 2.7"	128×64, 256×64	Monochrome	Industrial panels, rack displays
3.12"	256×64 or similar	Monochrome (rare)	Custom, low-power signage

Common Applications:

1. Wearables: Smartwatches, fitness trackers

2. IoT Devices: Home automation sensors, status displays

3. Medical Devices: Pulse oximeters, portable diagnostics

4. Meters: Digital voltmeters, battery monitors

5. DIY Projects: Arduino/Raspberry Pi sensor displays

6. Portable Electronics: Music players, remote controls, and timers

1.32 Inch OLED Display White 128x96 Resolution 25pin Soldering FPC Several Interface 2

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong, and our factory is in Jiangxi Province.

3. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

4. Q: What is the delivery time?

A: For small orders, 7-15 days. For mass production: 25-30 days.

5. Q: Can I get a lower price for OLED displays?

A: Yes, cheaper price with bigger/larger quantities.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
