VA Black Segment Transmissive LCD Display with FPC Connect for Payment Speaker

Brand Name:	Genyu
Model Number:	GY8910B
MOQ:	6000 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	500K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

VA, Nagative

Viewing Angle:

12 O'clock

Operating Temperature:

-10~+70℃

Voltage:

3.3V

Connector:

FPC

Packaging Details:

Anti-plastic trays & Cartons

Supply Ability:

500K pcs/ Month

Product Description

VA Black Segment Transmissive LCD Display with FPC Connect for Payment Speaker

Full Overview:

A VA negative segment LCD combines two key features:

VA (Vertical Alignment) LCD technology → for high contrast and wide viewing angles.
Negative mode → where the background is black and the segments are light-colored (e.g., white, blue, amber).

This type of display is ideal for modern, premium user interfaces where legibility, aesthetics, and viewing comfort are priorities.

Common Interfaces:

Interface Type	Description
Zebra Strip	Conductive rubber strip (for simpler designs)
FPC/FFC	Flat cable connector (flexible, compact)
PIN Header	Through-hole or surface-mount pins
SPI / I²C / Parallel	When integrated with driver IC (e.g., HT1621, PCF8576)

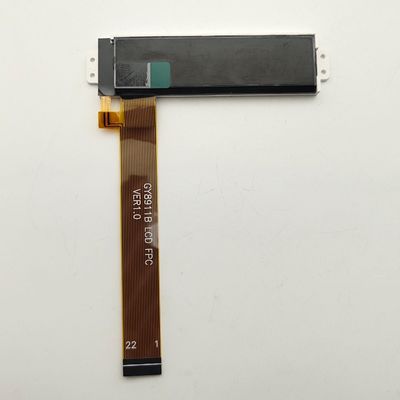

VA Black Segment Transmissive LCD Display with FPC Connect for Payment Speaker 0

Detailed Parameters:

Model number	GY8910B	LCD type	Segmented Display
Outline Dimension	76.58(W)* 18.79(H)* 4.65(T) mm	Display mode	VA, Negative
LCD viewing area	58.43(W)* 12.15(H) mm	Polarizer type	Transmissive
Drive method	1/4 Duty, 1/3 Bias	Working voltage	3.3V
Viewing angle	12 O'clock	Connection Way	FPC, 22 numbers
Operate temperature	-10℃~+70℃	LED Backlight	White

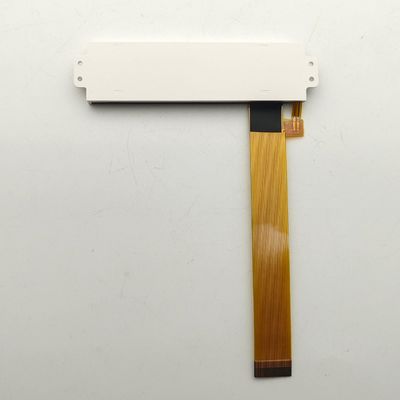

VA Black Segment Transmissive LCD Display with FPC Connect for Payment Speaker 1

VA Negative vs. TN Positive Segment LCD:

Feature	VA Negative	TN Positive
Background	Black	Gray/white
Segment Color	White, blue, amber	Black or dark gray
Viewing Angle	Wide (~160°)	Narrow (~60–80°)
Contrast	Very high	Moderate
Backlight	Required	Optional
Look & Feel	Premium, glass-like, modern	Basic, utilitarian

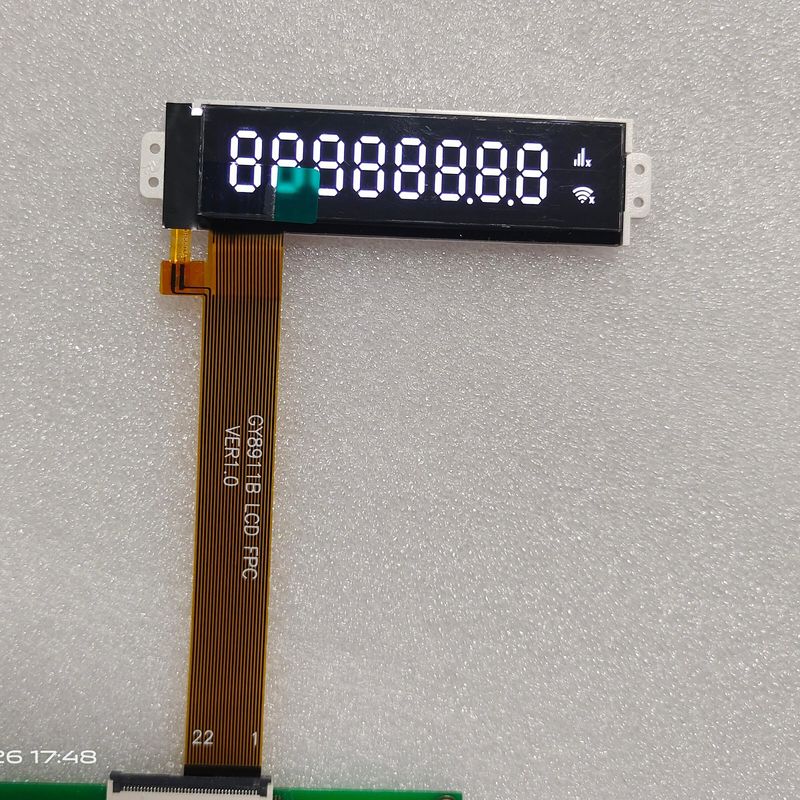

VA Black Segment Transmissive LCD Display with FPC Connect for Payment Speaker 2

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 30-35 days.

4. Q: Can I get free samples?

A: We would like to provide 3-5 pieces of free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ mainly depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-45 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
