VA Negative LCD Module Monochrome Black Screen Color Segments COB+PIN

Brand Name:	Genyu
Model Number:	GY88128-1546-A1
MOQ:	4900 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	300K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

VA, Negative

Viewing Angle:

12 O'clock

Operating Temperature:

-20~+70℃

Voltage:

5.0V

Driver IC:

HT1621

Connector:

Packaging Details:

Anti-static bags & Cartons

Supply Ability:

300K pcs/ Month

Product Description

VA Negative LCD Module Monochrome Black Screen Color Segments COB+PIN

Overview and Key Information:

A VA (Vertical Alignment) LCD module is a pre-assembled display unit using VA technology, often including:

Glass panel (LCD)
Driver IC
PCB or FPC interface
Optional backlight
Sometimes a frame, bezel, or touch panel

VA LCD modules are used when high contrast, wide viewing angles, and a modern black-screen appearance are desired, but without the complexity and cost of full-color TFT displays.

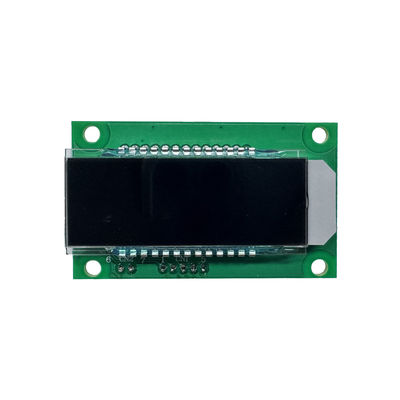

VA Negative LCD Module Monochrome Black Screen Color Segments COB+PIN 0

Detailed Parameters:

NO.	ITEM	SPECIFICATIONS
1	Model Number	GY88128-1546-A1
2	LCD Type	VA negative, transmissive
3	Viewing Angle	12 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 5.0V
5	Operating Temperature	-20~+70℃
6	Storage Temperature	-30~+80℃
7	Connector	COB+PIN
8	Driver IC	HT1621(SMT)
9	Backlight	LED, 2 PCS, white
10	Module Size	67.01(W)* 40.23(H)* 16.5(T) mm
11	LCD View Area	53.5(W)* 18.9(H) mm

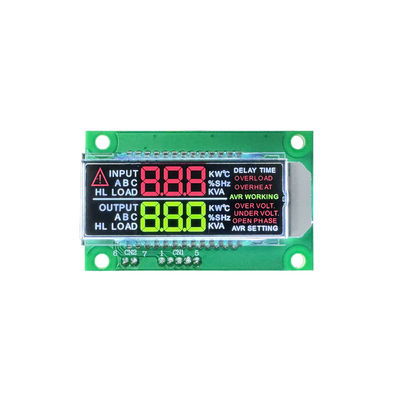

VA Negative LCD Module Monochrome Black Screen Color Segments COB+PIN 1

Common Applications of VA LCD Modules:

Smart home devices (thermostats, scales)
Medical instruments (ECGs, monitors)
Car infotainment or HVAC panels
High-end appliances (ovens, air purifiers)
Industrial control panels

Customization Options:

You can often customize the following:

Segment shapes and icons
Display colors (segment and backlight)
Viewing angle orientation (6 o’clock, 12 o’clock, etc.)
Touch panel integration
Outer frame/housing dimensions

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 30-35 days.

4. Q: Can I get free samples?

A: We would like to provide 3-5 pcs free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ mainly depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-45 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
