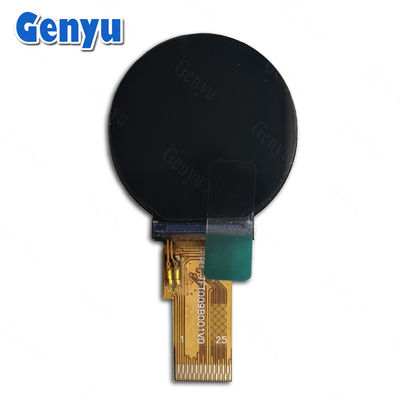

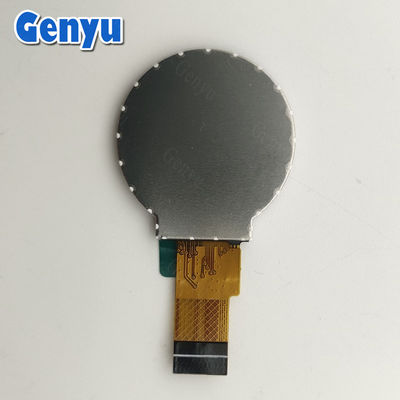

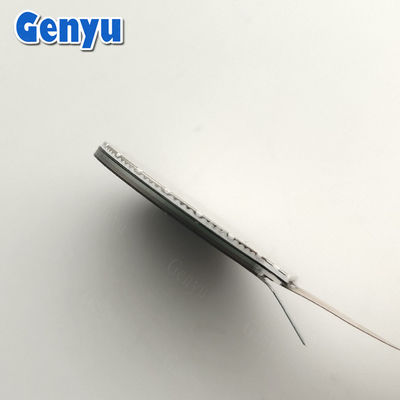

Small Size 0.9 Inch Round TFT LCD Display 128x128 Resolution SPI Interface

Brand Name:	Genyu
Model Number:	GY-TFT009B001
MOQ:	1000 pieces
Price:	Negotiable
Payment Terms:	T/T, Paypal, Western Union, MoneyGram
Supply Ability:	300K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001: 2015

LCD Type:

TFT

Panel Size:

0.9 Inch(diagonal)

LCD Resolution:

128x128 Dots

View Direction:

Free

Driver IC:

ST7735P3

Interface:

SPI

Packaging Details:

Anti-plastic trays and Carton Boxes

Supply Ability:

300K pcs/ Month

Highlight:

128x128 Round TFT LCD Display

SPI Interface Round TFT LCD Display

0.9 Inch Round TFT LCD Display

Product Description

LCD Parameters

NO.	ITEM	SPECIFICATIONS
1	Product Name	1.28-inch Round ShaCircle TFT LCD Display
2	Display Mode	Normal black
3	Viewing Direction	All
4	Resolution	128x128 dots
5	Operating Temperature	-20~+70℃
6	Storage Temperature	-30~+80℃
7	FPC Connector	25 pins, ZIF type
8	Panel Type	IPS
9	Interface	SPI
10	Backlight Type	3LEDs, White
11	Brightness	250 cd/m2
12	Outline Dimension	25.24(W)* 27.14(H)* 1.95(T) mm
13	Active Area	23.03(W)* 23.03(H) mm

Small Size 0.9 Inch Round TFT LCD Display 128x128 Resolution SPI Interface 0

TFT Screens ( 0.96 inch~10.1 inch )

we mainly develop small-middle sizes TFT LCD screens, including 0.9", 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.

Please let me know your requirements, we will suggest some models for your optional.

Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.

Small Size 0.9 Inch Round TFT LCD Display 128x128 Resolution SPI Interface 1

TFT LCD (Thin-Film Transistor Liquid Crystal Display) is a type of LCD that uses thin-film transistor (TFT) technology to improve image quality. It is commonly found in televisions, computer monitors, smartphones, and other display devices.

Key Features of TFT LCDs:

Active Matrix Technology: Each pixel is controlled by a small transistor, allowing faster response times and better image quality.
High Resolution & Color Accuracy: TFT LCDs can display vibrant colors and sharp images.
Backlit Display: Requires a light source, typically LED backlighting, since LCDs don’t emit light themselves.
Good Contrast & Brightness: Improved over traditional passive matrix LCDs.
Power Consumption: Generally higher than e-ink or OLED but efficient with LED backlighting.

Possible Uses:

Wearable devices
Small graphical interfaces
Sensor data visualization
DIY electronics projects (Arduino, Raspberry Pi)

FAQ

1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong, and our factory is located in Jiangxi Province.

2. Q: Will you offer a free sample?

A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.

In regular cooperation, samples can be free.

3. Q: What is the delivery time?

A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.

4. Q: Can you customize the LCD or touch screen for me?

A: Yes, we can provide custom services.

Regarding TFT LCD, interface, FPC cable, Backlight, Cover glass, and Touch Panels can be customized.

5. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
