| Brand Name: | Genyu |
| Model Number: | GY12864-1711 |
| MOQ: | 3000 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Paypal |
| Supply Ability: | 400K pcs/ Month |
Key Features:
FSTN (Film Super Twisted Nematic):
Monochrome:
Low Power Consumption:
Backlighting:
Detailed Parameters:

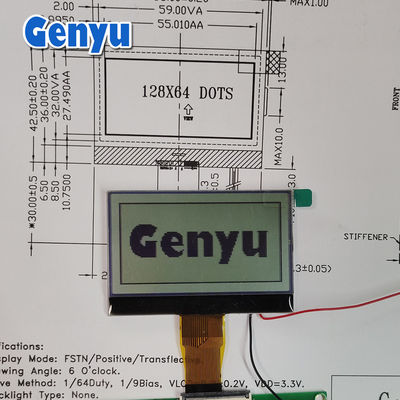

| 1 | Product Name | Monochrome COG Graphic LCD Display |
| 2 | Model Number | GY12864-1711 |
| 3 | LCD Type | FSTN(Gray), Positive |
| 4 | Polarizer Type | Transflective |
| 5 | Viewing Angle | 6 O'clock |
| 6 | Resolution |
128x64 dots
|
| 7 | Drive Method | 1/64 Duty, 1/9 Bias |
| 8 | Working Voltage | 3.3V |
| 9 | Operating Temperature | -20~+70℃ |
| 10 | Storage Temperature | -30~+80℃ |
| 11 | FPC Connector | 24PIN, ZIF type |
| 12 | FPC Pitch | 0.5 mm |
| 13 | Driver IC | ST7567 |
| 14 | Interface | 8-bit Parallel, SPI |
| 15 | Backlight Type | LEDs, White |
| 16 | Outline Dimension | 63.0(W)* 42.5(H)* 5.0(T) mm |
| 17 | View Area | 59(W)* 32(H) mm |
| 18 | Active Area | 55.01(W)* 27.49(H) mm |
Applications:
Embedded Systems: Used in projects requiring a compact, low-power graphical interface.
Portable Devices: Common in handheld devices like digital multimeters, temperature sensors, gauges, and measuring tools.
User Interfaces: In control panels, smart meters, and industrial machinery.
Wearable Devices: Used in devices like fitness trackers, watches, and health monitors where power efficiency is crucial.
Medical Devices: For displaying simple graphical information, such as glucose meters, heart rate monitors, and other diagnostic equipment.
FAQ=Frequently Asked Questions
1. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is located in Jiangxi Province.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: Can I get free samples?
A: Yes, 5-10 pcs of free samples will be provided after tooling.
4. Q: How long can I expect to get the samples?
A: Different product types will take different times. 2-5 working days for available models, and 28-30 working days for custom models.
5. Q: What is the minimum order quantity?
A: All our models have MOQ requirements, please get in touch with our salesman for detailed information.
6. Q: Can I get a lower price for LCD?
A: Yes, cheaper price with bigger/larger quantities order.
7. Q: How long is it for mass production?
A: Usually 25-40 days. It depends on different order quantities and part numbers.
8. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
9. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
