| Brand Name: | Genyu |
| Model Number: | GY12864-90 |
| MOQ: | 100 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 150K pcs/ Month |

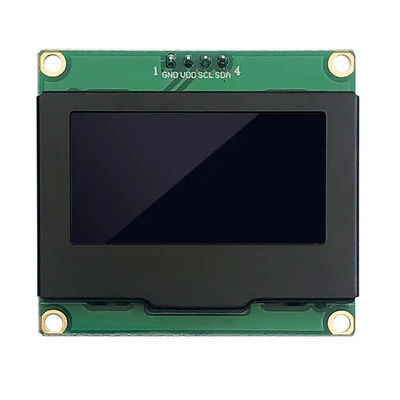

1.54 Inch OLED Display Module White Color 128x64 Pixels SSD1309 I2C Interface
Key Features:
Interface: The SSD1309 supports I2C or SPI communication protocols. This makes it compatible with many microcontrollers like Arduino, Raspberry Pi, ESP32, and others.
Display Technology: The SSD1309 is used to control OLED (Organic Light Emitting Diode) screens, which offer excellent contrast and low power consumption because each pixel is individually lit (no backlight).
Low Power Consumption: OLED screens are known for their low power consumption, especially when displaying dark content, as they only use power for the pixels that are turned on (no need for a backlight).
High Contrast & Wide Viewing Angles: OLED displays have great contrast ratios, providing deep blacks and vibrant colors (if applicable), as well as wide viewing angles.
Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-90 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Display Color | White |
| 5 | Panel Size | 1.54 Inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size |
47.0(W) x 43.0(H) x 13.8(D) mm
|
|
8 |
View Area |
37.06(W) x19.52(H) mm |
| 9 | Active Area |
35.06(W) x17.52(H) mm
|
| 10 | Dot Size | 0.254(W) x 0.254(H) mm |
| 11 | Dot Pitch | 0.274(W) x 0.274(H) mm |
| 12 | Drive IC | SSD1309 |
| 13 | Interface | I2C |
| 14 | Operating Temperature | -40~+70℃ |
| 15 | Voltage | 3~5V |
| 16 | PIN Pitch | 2.54 mm |
OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
Common Uses:
Smartwatches or Fitness Trackers: These small OLED displays are often used in wearable devices for showing time, steps, battery status, etc.
IoT Projects: Small sensors, smart home devices, and other IoT gadgets can display real-time information like sensor data or device status.
Customizable Displays: DIY projects, such as custom clocks, handheld devices, or data loggers, often use this display for output.
Portable Gadgets: Handheld devices like mini consoles, diagnostic tools, or portable meters often feature small OLED screens for displaying data.
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
