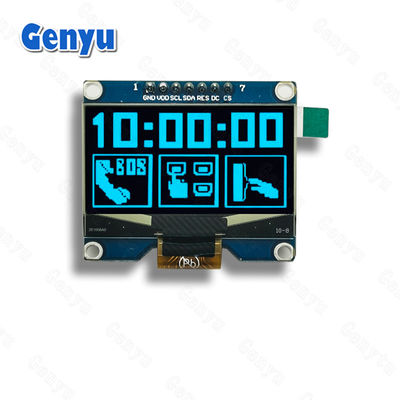

3.3V 1.54 Inch OLED Display 128x64 White Blue Yellow With SPD0301 Driver IC

3.3V 1.54 Inch OLED Display 128x64 White Blue Yellow With SPD0301 Driver IC

Brand Name:	Genyu
Model Number:	GY12864-92
MOQ:	100 pieces
Price:	Negotiable
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	150K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001: 2015

Panel Size:

1.54 Inch (diagonal)

Resolution:

128*64 Dots

Display Color:

White Or Blue Or Yellow

Driver IC:

SPD0301

Interface:

SPI

Packaging Details:

Foam Cotton and Carton Boxes

Supply Ability:

150K pcs/ Month

Highlight:

3.3V 1.54 Inch OLED Display

1.54 Inch OLED Display SPD0301

3.3V oled display module

Product Description

1.54 Inch OLED Display Module White Blue Yellow 128x64 Resolution SPI Interface

Key Features:

Display Resolution: Depending on the module, typically 128x64 pixels or 128x128 pixels.
Interface: Common interfaces include I2C or SPI, making them easy to connect with microcontrollers like Arduino, Raspberry Pi, or ESP32.
Power Consumption: OLEDs are known for low power consumption, especially when displaying darker content since they don't require a backlight.
Color Display: Many 1.54-inch OLED modules offer monochrome versions (e.g., white, blue, or yellow) are available.
Shape: The display can be square or rectangular, which depends on your designs.

3.3V 1.54 Inch OLED Display 128x64 White Blue Yellow With SPD0301 Driver IC 0

Detailed Parameters:

1	Brand Name	Genyu
2	Model Number	GY12864-92
3	Display Mode	OLED(Organic Light Emitting Diode)
4	Display Color	Blue or White or Yellow
5	Panel Size	1.54 Inch
6	Dot Matrix	128*64 Pixels
7	Module Size	42.04(W) x 37.0(H) mm
8	View Area	37.06(W) x19.52(H) mm
9	Active Area	35.06(W) x17.52(H) mm
10	Drive IC	SPD0301
11	Interface	4-wire SPI
12	Operating Temperature	-40~+70℃
13	Voltage	3.3V
14	PIN Pitch	2.54 mm

3.3V 1.54 Inch OLED Display 128x64 White Blue Yellow With SPD0301 Driver IC 1

OLED Screens ( 0.42 inch~3.12 inch ):

We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.

We can customize the FPC, Interface, Touch Panel, and PCB board based on your demands.

3.3V 1.54 Inch OLED Display 128x64 White Blue Yellow With SPD0301 Driver IC 2

A 1.54-inch OLED display, due to its compact size, is suitable for a wide range of applications in various fields.

Here are some common and innovative applications:

1. Wearable Devices

Smartwatches: The small size makes it ideal for use in compact smartwatches or fitness trackers, displaying time, notifications, heart rate, and other health metrics.
Fitness Bands: A 1.54-inch OLED can show key data like steps, calories burned, or workout details on small, lightweight fitness bands.
Augmented Reality Glasses: Some AR glasses use small OLED screens to project information directly into the user's field of view.

2. IoT and Home Automation

Smart Home Controllers: Used in smart home devices like controllers or hubs, where you need to display information such as temperature, lighting control, or system status.
Weather Stations: Can display current weather data, forecasts, or temperature and humidity readings in DIY weather stations.
Sensors/Status Displays: For devices like motion detectors, security cameras, or IoT sensors that need a small local display for status feedback.

3. Embedded Systems

Microcontroller Projects: Used in various embedded systems (e.g., Arduino, ESP32, Raspberry Pi projects) to display output, sensor readings, or system statuses.
Robotics: Small OLED screens can be mounted on robots to show status updates, control data, or real-time sensor feedback.
Data Loggers: In devices that log data (temperature, pressure, or other sensors), the OLED display shows logged values and allows users to interact with the device.

4. Consumer Electronics

Portable Gadgets: The display is often used in small, portable gadgets like keychain-sized devices, mini speakers, or digital thermometers.
Handheld Instruments: Used in handheld measuring instruments (e.g., oscilloscopes, signal analyzers) to display readings or settings.
Game Consoles: Some mini handheld game consoles use 1.54-inch OLEDs to display the game screen.

5. Medical Devices

Medical Monitors: Used in portable health monitoring devices to display vital signs, blood glucose levels, heart rate, or other health data in real-time.
Diagnostic Tools: In handheld diagnostic tools or compact medical devices, a 1.54-inch OLED can show status, readings, and instructions.
