| Brand Name: | Genyu |
| Model Number: | GY12864-12 |
| MOQ: | 100 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 150K pcs/ Month |

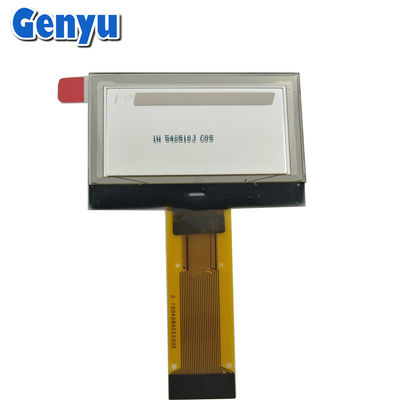

1.54 Inch OLED Display White Color 128x64 Resolution SPD0301 24pin FPC
Key Features of the 1.54-inch PMOLED 128x64 Display:
Display Size: 1.54 inches (diagonal).
Resolution: 128x64 pixels (monochrome).
Technology: PMOLED (Passive Matrix OLED), typically black-and-white.
Controller IC: Common controllers for such displays include SSD1309 or other similar drivers.
Interface: Most commonly I2C or SPI.
Low Power Consumption: OLED technology is energy-efficient, especially when displaying dark content.
High Contrast: OLED displays provide true blacks and high contrast, which results in clear visibility.
Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-12 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Color | White |
| 5 | Size | 1.54 Inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size |
42.04(W)x27.22(H)x1.41(D) mm
|
| 8 | View Area | 37.052 (W) x 19.516(H) mm |
| 9 | Active Area |
35.052(W) x17.516(H) mm
|
| 10 | Dot Size | 0.254(W)*0.254(H) mm |
| 11 | Dot Pitch | 0.274(W)*0.274(H) mm |
| 12 | Drive IC | SPD0301ZD |
| 13 | Interface |
6800/8080 interface, 4 wire serial interface, I2C
|
| 14 | FPC Connector | 24PIN, socket type |
| 15 | FPC Pitch | 0.5 mm |
| 16 | Drive Method | VDD=1.65V~3.3V, Vin=11.5~12.5V |
| 17 | Viewing Angle | 160° |
OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
Applications of the 1.54-inch PMOLED 128x64 Display:
Wearables: This display is often used in smartwatches and fitness trackers for showing time, notifications, and simple data.
IoT Devices: PMOLED displays are widely used in Internet of Things (IoT) devices to display sensor data, status information, or user interfaces.
Portable Gadgets: Small handheld electronics, such as e-readers, remote controls, and handheld devices, often use these compact displays.
Prototyping: In the development and prototyping phases, these displays can be used to visualize data or create a user interface without requiring a large screen.
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
