| Brand Name: | Genyu |
| Model Number: | GY12864-42 |
| MOQ: | 100 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 150K pcs/ Month |

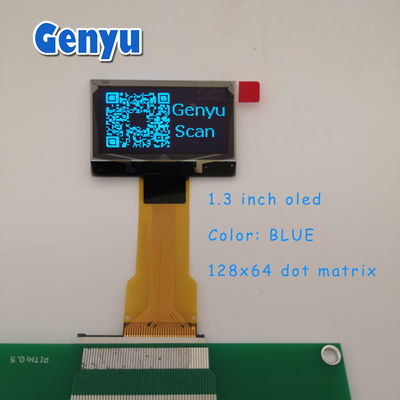

1.3 Inch OLED Display Blue Color 128x64 Pixels SH1106 30PIN Long FPC ZIF Type
A 1.3-inch OLED display using the SH1106 driver is another popular choice for small projects requiring high-quality visual output. The SH1106 controller is very similar to the SSD1306, but there are some differences in terms of memory addressing and initialization, so special care needs to be taken when using libraries and code.
Key Features of 1.3-inch OLED (SH1106):
Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-42 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Color | Blue |
| 5 | Size | 1.3 inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size |
34.5(W)x23.0(H)x1.427(D) mm
|
| 8 | View Area |
31.42 (W) x 16.7(H) mm
|
| 9 | Active Area |
29.42(W) x14.7(H) mm
|
| 10 | Dot Size | 0.21(W)*0.21(H) mm |
| 11 | Dot Pitch | 0.23(W)*0.23(H) mm |
| 12 | Drive IC | SH1106 |
| 13 | Interface |
6800/8080 interface, 4 wire serial interface, I2C
|
| 14 | FPC Connector | 30PIN, socket type |
| 15 | FPC Length | 40 mm |
| 16 | FPC Pitch | 0.5 mm |
| 17 | Voltage | VDD=1.65~3.3V, Vin=3.5~4.2V |
| 18 | Viewing Angle | 160° |
OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
Common Uses:
IoT Projects: Displaying sensor readings, status information, or system messages.
Wearables: Used in smartwatches, fitness trackers, and other small gadgets.
Arduino Projects: Frequently used with Arduino or similar microcontrollers to show text, graphics, and simple animations.
DIY Gadgets: Used in custom gadgets and prototyping for displaying simple graphics, text, or icons.
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
