| Brand Name: | Genyu |
| Model Number: | GY12864-05 |
| MOQ: | 100 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 150K pcs/ Month |

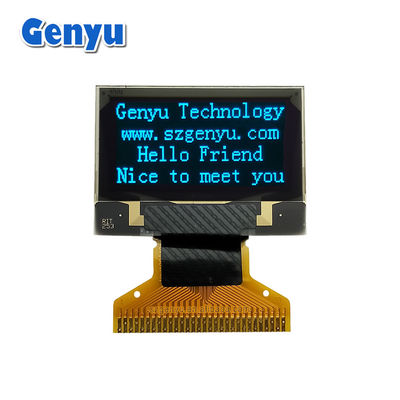

0.96 Inch OLED Screen 128x64 Pixels Blue Color SSD1306 30pin Soldering FPC
Key Features:
1. Technology
Matrix Type: Passive-matrix design where rows and columns are sequentially activated to control individual pixels.
Self-Emissive: Pixels emit their light, eliminating the need for a backlight.
Contrast: High contrast with deep blacks, as inactive pixels are truly off.
2. Electrical Specifications
Interface:
I²C or SPI communication protocols are common.
Some modules support both interfaces.
Voltage: Typically operates at 3.3V or 5V (with onboard regulator).
Power Consumption: Low, but power increases with the number of active pixels and brightness.
Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-05 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Color | Blue |
| 5 | Size | 0.96 inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size |
26.7(W)x19.26(H)x1.41(D) mm
|
| 8 | View Area | 23.74 (W) x 12.864(H) mm |
| 9 | Active Area | 21.74(W)*10.86(H) mm |
| 10 | Dot Size | 0.154(W)*0.154(H) mm |
| 11 | Dot Pitch | 0.170(W)*0.170(H) mm |
| 12 | Drive IC | SSD1306 |
| 13 | Interface | 6800/8080 interface, 4 wire serial interface, I2C |
| 14 | FPC Connector | 30PIN, soldering |
| 15 | Voltage | VDD=1.65~3.3V, Vin=3.5~4.2V |
| 16 | Viewing Angle | 160° |
Common Applications:
1. Wearables
Smartwatches/Fitness Trackers: Display time, date, steps, heart rate, and other fitness metrics.
Health Monitoring Devices: Used in devices like blood pressure monitors, glucose meters, and pulse oximeters to show sensor readings.
Wearable IoT Devices: Small displays for tracking environmental data, such as temperature or humidity.
2. IoT (Internet of Things) Devices
Sensor Display: Display data from sensors (e.g., temperature, humidity, motion, or light sensors) in real time.
Smart Home Devices: Information like temperature settings, light levels, or other smart home parameters.
Smart Thermostats: Display settings like current temperature and mode of operation.
3. Prototyping and Development
DIY Electronics: Perfect for prototyping and testing circuits that need a simple display for feedback or interaction.
Arduino/Raspberry Pi Projects: Frequently used in Arduino and Raspberry Pi projects as a quick, inexpensive way to display text, status, or sensor data.
Custom Dashboards: Display readings from various sensors (e.g., voltage, current, power usage, etc.).
4. Consumer Electronics
Portable Devices: Compact screens in devices like digital cameras, MP3 players, or handheld game consoles.
Clocks and Timers: Display digital clocks, alarms, countdowns, or simple timers.
Battery Monitors: Display battery percentage or charge status in battery-powered systems.
5. Communication Devices
Simple Messaging: Display short messages or notifications for communication devices like intercom systems, alarm systems, or pagers.
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
