| Brand Name: | Genyu |
| Model Number: | GY12864-01 |
| MOQ: | 100 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 150K pcs/ Month |

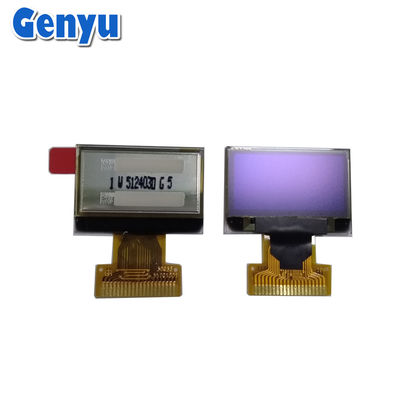

0.96 Inch OLED Display White Color 128x64 Dots SSD1315 20pin Soldering FPC
Key Features:
Resolution: Typically, 128x64 pixels.
Color: Monochrome (usually white, blue, or yellow).
Interface: I²C (2-wire) or SPI (4-wire) communication protocols.
Driver IC: SSD1315, similar to the SSD1306 but offers better contrast, reduced power consumption, and higher performance.
Voltage: Works at 3.3V or 5V (with an onboard regulator for 5V systems).
Low Power: Ideal for battery-powered applications.
Compact Size: Suitable for wearables, IoT projects, and small gadgets.
Detailed Parameters:
| 1 | Brand Name | Genyu |
| 2 | Model Number | GY12864-01 |
| 3 | Display Mode | OLED(Organic Light Emitting Diode) |
| 4 | Color | White |
| 5 | Size | 0.96 inch |
| 6 | Dot Matrix | 128*64 Pixels |
| 7 | Module Size | 24.74(W)x16.9(H)x1.42(D) mm |
| 8 | View Area | 22.74 (W) x 11.86(H) mm |
| 9 | Active Area | 21.74(W)*10.86(H) mm |
| 10 | Dot Size | 0.15(W)*0.15(H) mm |
| 11 | Dot Pitch | 0.17(W)*0.17(H) mm |
| 12 | Drive IC | SSD1315Z |
| 13 | Interface | 3/4 wire serial interface, I2C |
| 14 | Voltage | VDD=1.65~3.3V, Vin=3.5~4.2V |
| 15 | Viewing Angle | 160° |
OLED Screens ( 0.42 inch~3.12 inch ):
We mainly develop small-middle sizes OLED displays, including 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.12", 1.21", 1.3", 1.5", 1.54", 1.92", 2.08", 2.23", 2.42", 2.7", and 3.12", etc.
Advantages of SSD1315 over SSD1306:
Improved refresh rate and contrast ratio.
Wider range of operational temperatures.
Reduced electromagnetic interference (EMI).
Common Applications:
Small electronic gadgets.
IoT dashboards.
Portable health devices.
Displays for Arduino, Raspberry Pi, ESP32, etc.
Interfacing Tips:
Libraries: Use popular libraries like Adafruit's GFX and SSD1306 libraries for Arduino, or u8g2 for various platforms.
Connections: Ensure correct wiring based on I²C (SCL, SDA, VCC, GND) or SPI (MOSI, MISO, SCK, CS).
Initialization: The SSD1315 requires specific commands for setup. Most libraries abstract this for you.
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for OLED displays?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
