| Brand Name: | Genyu |
| Model Number: | GY0700-19049A1 |
| MOQ: | 100 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T,Paypal,Western Union,MoneyGram,Credit Card |
| Supply Ability: | 300K pcs/ Month |

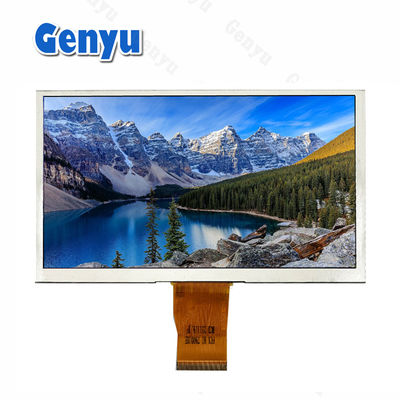

7 Inch TFT Display Panels 1024×600 Dots Matrix 50pin FPC with RGB Interface
Key Features:
Resolution:
1024x600 pixels, meaning it has 1024 horizontal pixels and 600 vertical pixels.
This resolution improves lower-resolution displays like 800x480, providing sharper images and clearer text.
Aspect Ratio: 16:9, making it suitable for media applications such as video playback and games.
Pixel Density: The pixel density (PPI – pixels per inch) of a 7-inch display with 1024x600 resolution is around 170 PPI. This is adequate for general applications, but higher-resolution displays may be preferred for extremely fine detail.
Display Type: TFT (Thin-Film Transistor): Provides vibrant colors, good contrast, and fast refresh rates. TFT is often more affordable and offers decent image quality for most applications.
Backlight: LED backlighting is typically used, which is energy-efficient and provides adequate brightness for indoor use.
Viewing Angles: The viewing angle of TFT screens is decent but not as wide as that of IPS (In-Plane Switching) displays. Expect a loss of color accuracy and contrast if viewed from extreme angles.
Connectivity: These screens usually come with various connection options, such as RGB (parallel), HDMI, or SPI for interfacing with microcontrollers or SBCs (Single-Board Computers) like the Raspberry Pi or Arduino.
Basic Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Product Name | 7.0 Inch TFT LCD Display |
| 2 | Display Mode | Normally white, TN, Transmissive |
| 3 | Viewing Angle | Free |
| 4 | Pixel arrangement | RGB Vertical stripe |
| 5 | Resolution | 1024 RGB(H) x 600(V) Dots |
| 6 | Operating Temperature | -20~+70℃ |
| 7 | Storage Temperature | -30~+80℃ |
| 8 | FPC Connector | 50PIN, socket type |
| 9 | FPC PITCH | 0.5 mm |
| 10 | Surface treatment | Antiglare, Hard-Coating (3H) |
| 11 | Backlight | LED Side-light type, 6 parallel 3 series |
| 12 | Interface | RGB |
| 13 | Luminance | 180 cd/m2 |
| 14 | Outline Dimension | 165(W) ×100(H) ×3.5(D) mm |
| 15 | Active Area | 154.21(W) × 85.92(H) mm |
TFT Screens ( 0.42 inch~10.11 inch ):
We mainly develop TFT LCD screens of small-middle sizes, sizes as below.
Common Uses:
Embedded Projects: Often paired with microcontrollers or Raspberry Pi/Arduino.
Portable Devices: Great for small handheld gadgets, including digital photo frames, handheld gaming consoles, or custom control panels.
Automotive and Industrial Applications: Useful in-car systems, kiosks, or other display-centric interfaces.
Advantages:
Higher resolution compared to many lower-end displays (800x480).
Suitable for high-definition video output in small devices.
The 16:9 aspect ratio allows for a cinematic viewing experience for media playback.
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
