| Brand Name: | Genyu |
| Model Number: | GY-TFT011H002 |
| MOQ: | 1000 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 300K pcs/ Month |

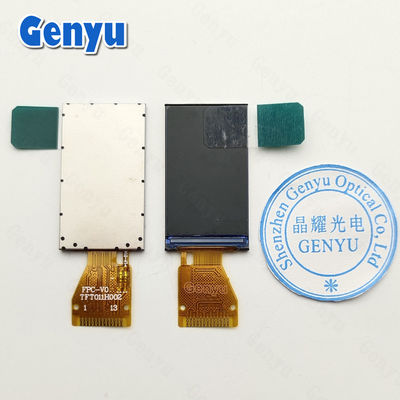

1.14 Inch TFT LCD Display IPS 135x240 Pixels ST7789V 13pin Serial Interface
1. Size and Resolution:
Screen Size: The diagonal measurement of the screen is 1.14 inches, making it slightly larger than the common 1.06-inch displays but still within the range of small, compact screens.
Resolution: The resolution can vary by model, but common resolutions for 1.14-inch TFT displays are typically around:
240x135 pixels (This is a popular resolution for TFT displays in this size range).
2. Backlighting:
LED Backlight: The display is usually backlit by an LED (Light Emitting Diode), which provides illumination to the screen for visibility in low-light conditions.
The backlight is typically white, though some screens may offer RGB backlighting for more dynamic displays.
3. Example Use Cases:
Smartwatches and Fitness Trackers: Displaying time, health data, and notifications.
Embedded Projects with Microcontrollers: For showing sensor data, control systems, or user interface panels in small form factors.
Digital Toys and Handheld Gaming: Small displays for portable games or toys, allowing color graphics and basic interaction.
Consumer Devices: Used in small, portable consumer electronics such as handheld media players, alarms, or custom controllers.
4. Potential Resolutions and Pixel Density:
Pixel density will vary depending on the resolution and size. For example, a 240x135 resolution on a 1.14-inch screen would result in a pixel density of approximately 208 pixels per inch (PPI), which is quite sharp for a small display.
Basic Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Product Name | 1.14 Inch TFT LCD |
| 2 | LCD Type | IPS |
| 3 | Resolution |
135x240 dots
|
| 4 | Operating Temperature | -20~+70℃ |
| 5 | Storage Temperature | -30~+80℃ |
| 6 | FPC Connector | 13PIN, soldering type |
| 7 | Pitch | 0.7 mm |
| 8 | Driver IC(COG) | ST7789V2 |
| 9 | Interface | 4 SPI |
| 10 | Backlight Type | 1-LED, White |
| 11 | Power Consumption | VF=3.0V, IF=20mA |
| 12 | Outline Dimension |
17.6(H)*31.0(V)*1.6(D) mm
|
| 13 | Active Area |
14.86(H)*24.91(V) mm
|
TFT Screens ( 0.96 inch~10.1 inch )
We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.
A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.
5. Q: Can I get a lower price for TFT LCD?
A: Yes, cheaper price with bigger/larger quantities order.
6. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
7. Q: Can you provide the technical support?
A: Yes, We will provide detailed specifications and initialization code.
