| Brand Name: | Genyu |
| Model Number: | GY88128-706 |
| MOQ: | 1000 pieces |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 400K pcs/ Month |
Key Characteristics of STN Segment LCD:
STN Technology:
Super Twisted Nematic (STN) is an enhanced version of the TN (Twisted Nematic) technology, where the liquid crystals are "twisted" in a way that results in improved optical performance.
In STN displays, the liquid crystal molecules are aligned at a greater angle (typically 180° compared to 90° in TN displays), which improves the contrast ratio and provides better visibility, especially at different angles.
STN displays can also provide improved color and contrast over regular TN LCDs, and they often offer better readability in various lighting conditions.
Segmented Display:
Like other segmented LCDs, STN Segment LCDs display information using a series of segments (such as a 7-segment display for numeric data or other segmented patterns for alphanumeric characters or symbols).
Each segment is turned on or off to form characters or numbers. Common uses include clocks, thermometers, or simple numeric readouts.
Detailed Parameters:

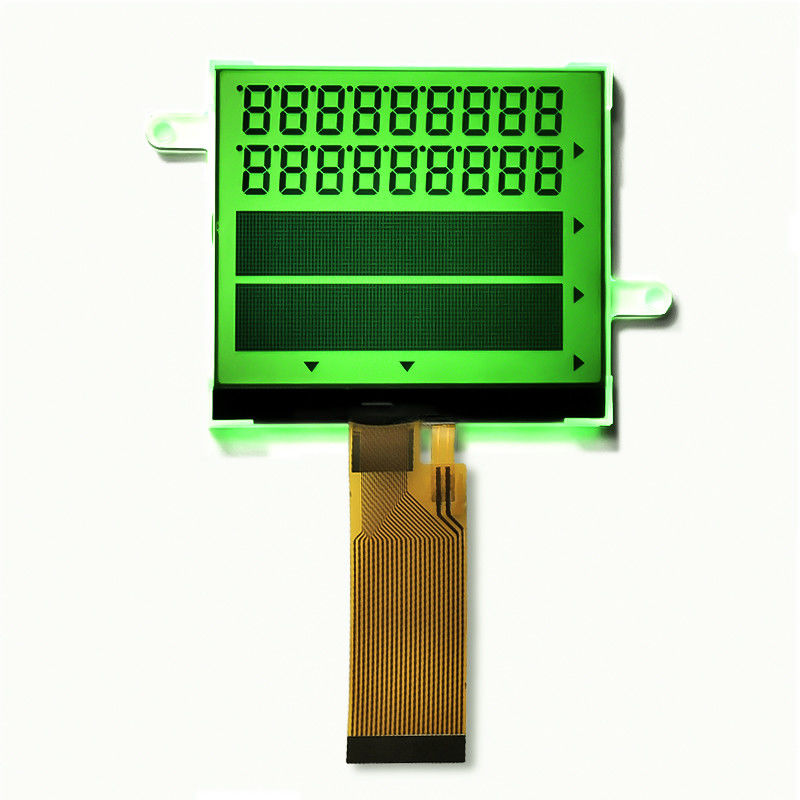

| Model number | GY88128-706 | LCD type | Segmented Display |
| Module size | 107(W)* 73(H)* 5.7(T) mm | Display mode | STN, Positive |
| LCD viewing area | 75.5(W)* 60.8(H) mm | Polarizer Type | Transflective |
| Connection Way | COG+FPC, 24PIN | Driver IC | UC1601S |
| Operating temp. | -20~+70℃ | Storage temp. | -30~+80℃ |
| Drive method | 1/32 Duty, 1/6 Bias | Working voltage | 3.3V |
| Viewing angle | 12 O'clock | LED backlight | Green, 6PCS |
Types of STN Displays:
Positive STN: The background is dark (usually gray or black), and the segments or digits appear light (usually white or light gray). This configuration is commonly used for readability in high ambient light.
Negative STN: The background is light (often white), and the segments or digits appear dark (black or dark gray). This setup can be preferred for aesthetic reasons or where lower power consumption is needed, as it can reduce the need for backlighting.
Challenges:
Color Limitations: While STN displays provide better contrast, they are often limited in terms of color representation, typically sticking to monochrome or simple two-color schemes (e.g., black and white, or black and gray).
Speed: STN displays can have slower refresh rates compared to other display technologies like TFT LCDs or OLEDs, making them less suitable for fast-moving graphics or video.
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: How long can I get the custom samples?
A: Different product types will take different times. Usually, it will take about 30-35 days.
4. Q: Can I get free samples?
A: We would like to provide 3-10 pcs free samples after tooling.
5. Q: What is the minimum order quantity?
A: MOQ mainly depends on LCD sizes.
6. Q: How long is it for mass production?
A: Usually 35-45 days, it depends on your part number.
7. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
