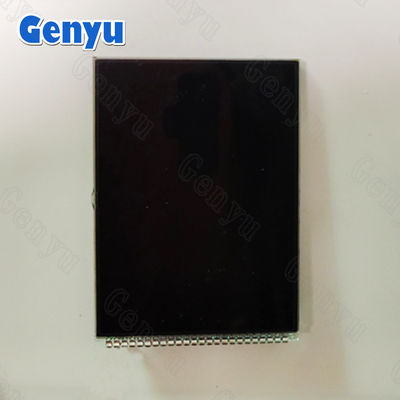

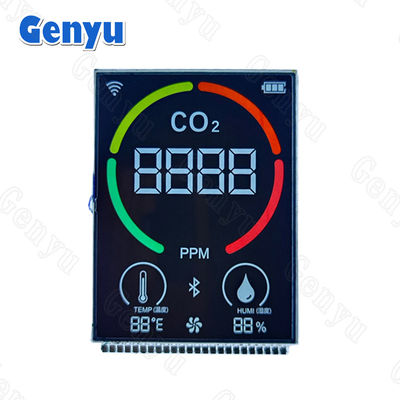

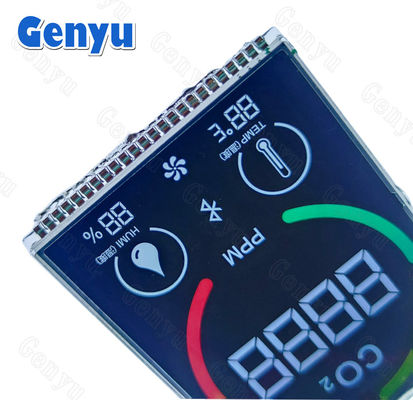

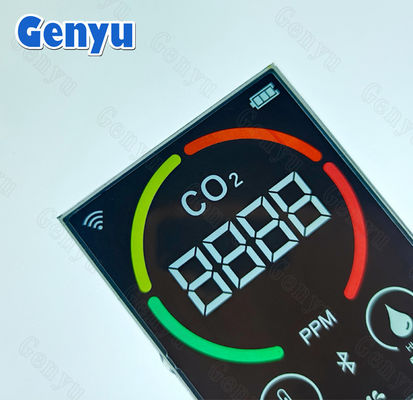

2.5 Inch VA LCD Display 4 Digit 7 Segment Screen 24PIN For Carbon Dioxide Detector

2.5 Inch VA LCD Display 4 Digit 7 Segment Screen 24PIN For Carbon Dioxide Detector

Brand Name:	Genyu
Model Number:	GY-VNP8515
MOQ:	2100 pieces
Price:	Negotiation
Payment Terms:	T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability:	400K pcs/ Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

RoHS, ISO9001:2015

LCD Type:

VA, Nagative

Viewing Angle:

6 O'clock

Operating Temperature:

-20~+70℃

Voltage:

5.0V

Backlight:

RGB Color

Packaging Details:

Foam & Cartons

Supply Ability:

400K pcs/ Month

Highlight:

2.5 Inch VA LCD Display

4 Digit 7 Segment Screen

2.5 Inch 7 Segment Screen

Product Description

VA LCD Display 2.5 Inch 4 Digit 7 Segment 24PIN for Carbon Dioxide Detector

Applications of LCD Displays in Detectors:

Environmental Detectors:
- Gas Detectors: Display gas concentration levels and alarm statuses (e.g., methane or carbon monoxide detection).
- Radiation Detectors: Show radiation intensity in real time.
Industrial Detectors:
- Metal Detectors: Indicate detected metal type and depth.
- Leak Detectors: Show leak location or intensity.
Safety and Security:
- Smoke/Fire Detectors: Show system status or battery levels.
- Burglar Alarms: Display security status and settings.
Medical Devices:
- Used in devices like glucose meters or other portable diagnostic tools.

Detailed Parameters:

Model number	GY-VNP8515	LCD type	Segmented Display
Outline dimension	48.0(W)* 65.0(H)* 2.8(T) mm	Display mode	VA, Negative
LCD viewing area	45(W)* 60(H) mm	Polarizer type	Transmissive
Driver IC	/	LED backlight	White
Drive method	1/4Duty, 1/3 Bias	Working voltage	3.3V
Viewing angle	12 O'clock	Connection Way	PIN, 24 numbers
Operate temperature	-20℃~+70℃	Storage temperature	-30~+80℃

2.5 Inch VA LCD Display 4 Digit 7 Segment Screen 24PIN For Carbon Dioxide Detector 0

Benefits of LCDs in Detectors:

Customizable:
- Displays can be tailored for the specific application (e.g., multi-line displays, graphical representations).
Cost-Effective:
- Affordable compared to other display technologies like OLEDs or LEDs.
Enhanced Portability:
- Lightweight and compact, making them suitable for handheld detectors.

Technical Considerations:

Resolution:
- Determines the clarity of displayed information. Higher resolution is better for graphical interfaces.
Viewing Angle:
- Important for detectors used in diverse environments where the screen might not always be viewed head-on.
Operating Temperature:
- Must function across a wide temperature range, especially in industrial or outdoor settings.

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 30-35 days.

4. Q: Can I get free samples?

A: We would like to provide 3-10 pcs free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ mainly depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-45 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
