| Brand Name: | Genyu |
| Model Number: | GY88128-80 |
| MOQ: | 4000 pieces |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Credit Card |
| Supply Ability: | 300K pcs/ Month |

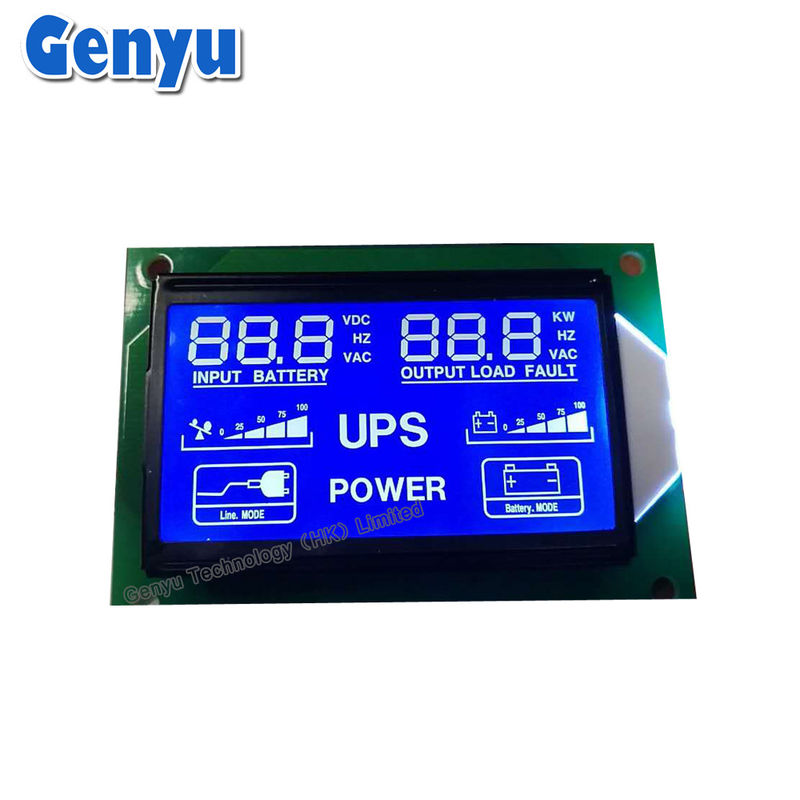

An HTN Segment LCD offers superior contrast, better-viewing angles, and improved legibility compared to TN segment LCDs, making it an excellent choice for simple alphanumeric displays in applications where clarity and readability are crucial.
Its low power consumption and cost-effectiveness make it ideal for battery-operated devices like clocks, calculators, home appliances, and industrial meters.
While HTN segment LCDs are typically monochrome or two-color displays and lack the vibrancy of technologies like OLED or IPS, they are well-suited for applications that require simple static information to be displayed clearly and efficiently.
Detailed Parameters:
| Model number | GY88128-80 | LCD type | Segmented Display |
| Module Size | 73.2(W)* 50(H)* 17.2(T) mm | Display mode | HTN, negative |
| LCD viewing area | 51.7(W)* 27.5(H) mm | Polarizer type | Transmissive |
| Driver IC | HT1621 | LED backlight | White, 2 pcs |
| Drive method | 1/4 Duty, 1/3 Bias | Working voltage | 3.3V |
| Viewing angle | 12 O'clock | Connection Way | Rubber strips |
| Operate temperature | 0℃~+50℃ | Storage temperature | -10~+60℃ |
| Features | HTN Segment LCD | TN Segment LCD |
|---|---|---|
| Contrast | Higher contrast, deeper blacks | Lower contrast, less sharp appearance |
| Viewing Angles | Wider viewing angles than TN | Narrower viewing angles |
| Power Consumption | Low, suitable for battery-operated devices | Low, but slightly less efficient than HTN |
| Legibility | Better readability in low light or off-angle | Less clear, especially in low light |
| Color Accuracy | Monochrome or limited color (black/blue on white) | Monochrome (typically black on white) |
| Response Time | Slower response than TN but is sufficient for static displays | Faster response, but not needed for segment displays |
| Cost | Moderate cost, more expensive than TN | Cheapest option |
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
3. Q: How long can I get the custom samples?
A: Different product types will take different times. Usually, it will take about 30-35 days.
4. Q: Can I get free samples?
A: We would like to provide 3-5 pcs free samples after tooling.
5. Q: What is the minimum order quantity?
A: MOQ mainly depends on LCD sizes.
6. Q: How long is it for mass production?
A: Usually 35-45 days, it depends on your part number.
7. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
