| Brand Name: | Genyu |
| Model Number: | GY88128-25 |
| MOQ: | 1000 pieces |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, Paypal |
| Supply Ability: | 500K pcs/ Month |

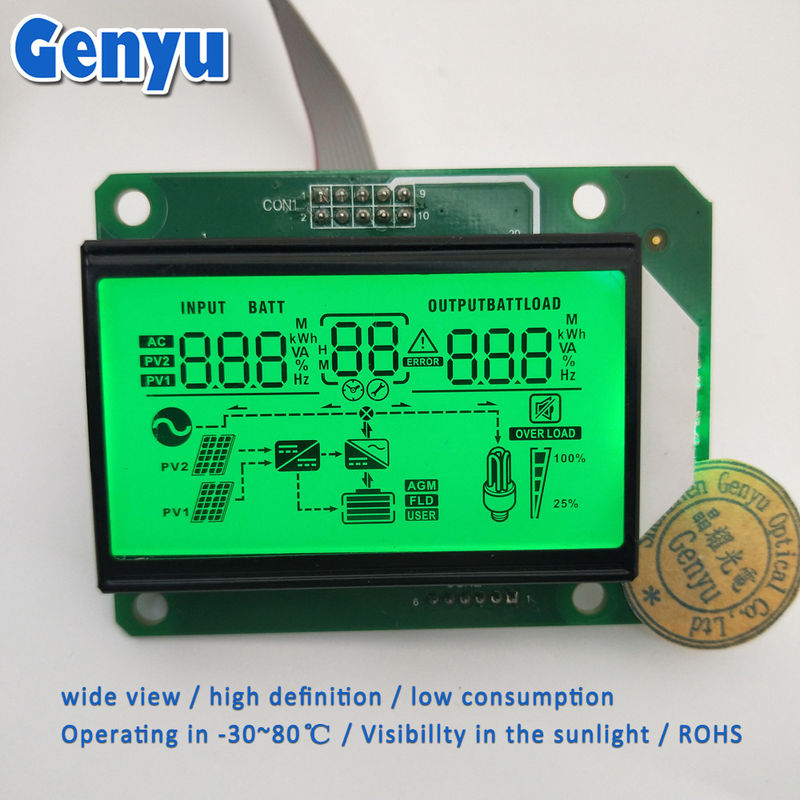

| Product name | Customized Segment LCD display Module for Inverter | ||
| Outline size | 76(W)* 18(H)* 19.7(T) mm | LCD type | HTN |
| Viewing area | 60.0(W)* 32.5(H) mm | Display mode | Positive |

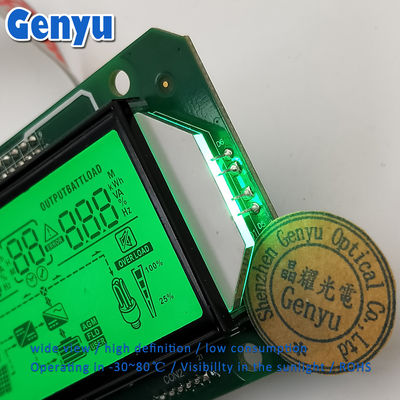

| Driver IC | HT1621 | LED Backlight | 2 pcs, Green |
| Polarizer type | Transmissive | Working voltage | 5.0V |
| Viewing angle | 6 O'clock | Drive method | 1/4 Duty, 1/3 Bias |
| Operate temperature | 0℃~+50℃ | Storage temperature | -10~+60℃ |
We support OEM Services, all details can be customized.
Such as sizes, LCD types, display modes, polarizer types, viewing angles, working voltage, drive methods, connectors, backlights, temperature, etc.
Please share your sketches/ drawings; we will help evaluate the costs and provide some suggestions for your reference.
Notices: The differences between TN, HTN, STN, FSTN, and VA LCD types?
TN (Twisted Nematic) LCD screens, the twisted orientation of the liquid crystal molecules is deflected by 90°. The display content is relatively simple, and the main features are relatively black fonts, high contrast, low power consumption, and driving voltage, but a small viewing angle. Common applications are clock products, calculators, etc.
HTN (High Twisted Nematic) LCD screens, nematic liquid crystal molecules are sandwiched between two transparent glasses, and the orientation of the liquid crystal molecules is deflected 100~140 degrees between the two layers of glass. The main features are similar to TN, but the viewing angle is wider than TN. Common applications are indoor furniture, medical equipment, etc.
STN (Super Twisted Nematic) LCD screens, the liquid crystal rotates 180~270 degrees in the LCD screen, the viewing angle is better, and there are generally gray films, yellow-green films, and blue films. Widely used in high-channel COB/COG, such as communication devices, etc.
FSTN (Film+STN) LCD screen, to improve the background color problem of ordinary STN, a compensation film is added to the polarizer to eliminate dispersion and achieve black and white display. Common applications are industrial instruments, etc.
VA (Vertical Alignment) LCD screens, black background, and color patterns, high contrast, can achieve a multi-color silk screen display effect, and have certain requirements for driving voltage. It is mostly used for segment COB and low-channel drive products.
Applications:
1. Q: What products can you provide?
A. 1) Custom Segment LCD Display;
2) Monochrome Graphic/Dot Matrix LCD Display Modules;
3) Micro OLED Display Modules;
4) Color TFT LCD Display Panels;
5) LED Backlights.
2. Q: Where is your factory?
A. Our office is in Shenzhen and our factory is in Jiangxi Province.
3. Q: What is the process for custom samples?
A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.
4. Q: How long can I expect to get the custom samples?
A: Different product types will take different times. Usually, 15-30 days will be possible, and the specific time depends on the product model.
5. Q: Can I get free samples?
A: Yes, we will provide 5-10 pcs free samples after tooling.
6. Q: What is the minimum order quantity?
A: All our models have MOQ requirements, please get in touch with our salesman for detailed information.
7. Q: How long is it for mass production?
A: Usually 25-40 days. It depends on different order quantities and part numbers.
8. Q: How do you control the quality of products?
A: All products are 100% inspected before shipment.
will provide detailed specifications and initialization code.
